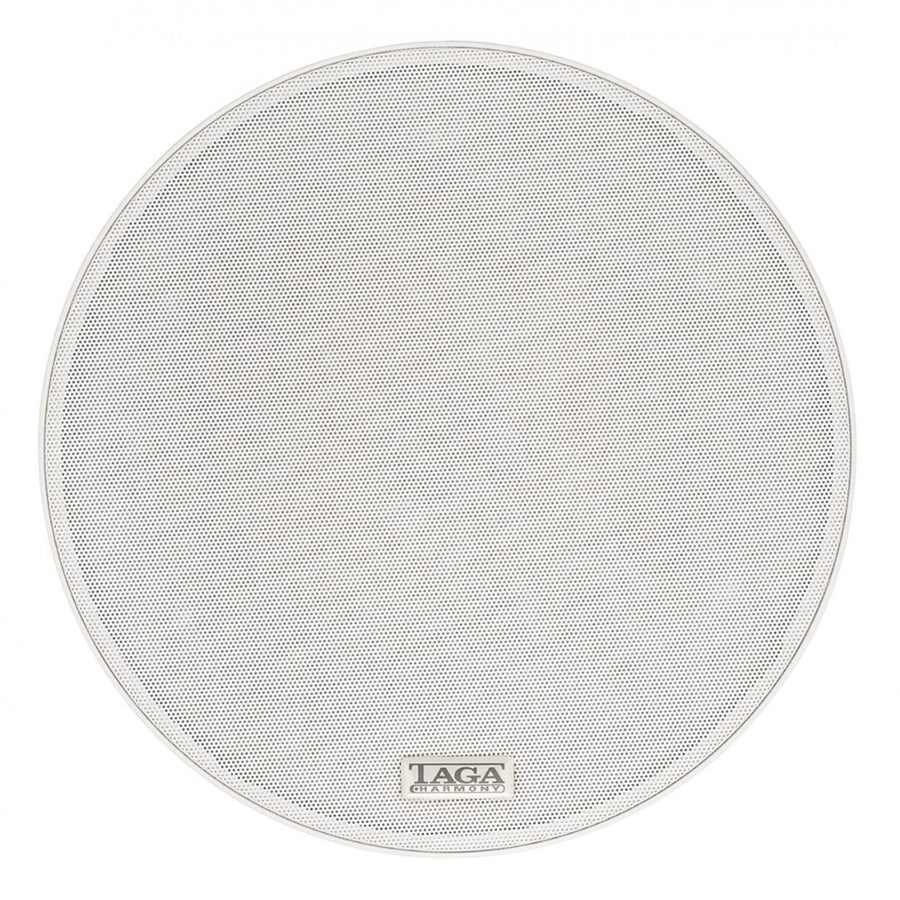

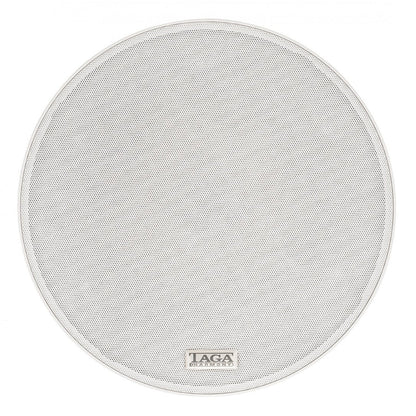

TAGA HARMONY RB-1650BT Active In-Ceiling Speakers (Pair)

TAGA HARMONY RB-1650BT Active In-Ceiling Speakers

\nThe RB-1650BT is a 2 x 30W RMS active speaker paired with a passive one. The system is a perfect solution for residential as well as commercial installations in restaurants, pubs, shops, conferencing rooms, fitness clubs, teaching rooms. \n \nIt allows to build a cost-effective audio installation and stream music wirelessly via Bluetooth® (music and the Internet radio) or wired via additional stereo line input (RCA / 3.5mm). \n \nUnique features like remote control, front and rear IR receivers, RS-232 port, programmable Auto Standby and Bass / Treble regulations help to integrate the RB-1650BT into any audio-visual installation. \n \nThe daisy-chain connection allows to connect many pairs of RB BT speakers to the main speaker and build a very large and sophisticated AV installation. \n \nThe sound is clear, natural, dynamic and provides wide dispersion throughout a listening area, and thanks to slim bezels you are hard to see speakers mounted in your wall or ceiling! \n \nThe proper design facilitates installations thanks to many specialized features: \n \nBuilt-in high-efficiency 2 x 30W RMS amplifier: low working temperature (Class D amp) and external power supply allows for placement in closed areas. \n \nBluetooth® 4.0 wireless connectivity: stream music and the Internet radio from smartphones, tables or computers. \n \nAuto-Switching: automatic or manual Bluetooth® input selection. \n \nBass and Treble regulation. \n \nAdditional RCA stereo line input: to connect analog sources (CD player, TV tuner etc.) – RCA and 3.5mm. \n \nAuto Standby: the amplifier switches on when the audio signal is sensed and switches off after approximately 30 minutes of inactivity (can be switched off from the remote controller). \n \nRemote controller (ON/OFF, Bluetooth and Line, Bluetooth priority ON/OFF, Auto Standby ON/OFF, Volume and Mute, Bass / Treble / Reset). \n \nProgrammable IR front and rear receivers: the rear IR receiver is dedicated for a wired control system. \n \nRS-232 serial port: allows integration into a control system. \n

\n
• Daisy-chain connection: line output to pass the audio signal to the next RB BT speaker.
\n
• Slim chassis to allow installations even in shallow places.
\n
• Volume and tone memory: set it and forget - the RB-1650 BT remembers the volume and tone regulation level selected before it was switched off.
\n
• TIMPC - TAGA Injection-Molded Polymer Chassis is very rigid and strong to minimize distortions, vibrations or resonances.
\n
• TEI – TAGA Easy Install mounting brackets are extremely easy and safe to install. The ABS clamps are in a visible blue color to ease installation in dark places.
\n
• Reduced Bezel grills are magnetically mounted and paintable. They are aesthetic and virtually disappear in the ceiling or wall.
\n
• Swivel tweeter to direct a high frequency stream toward selected area in the room.
\n

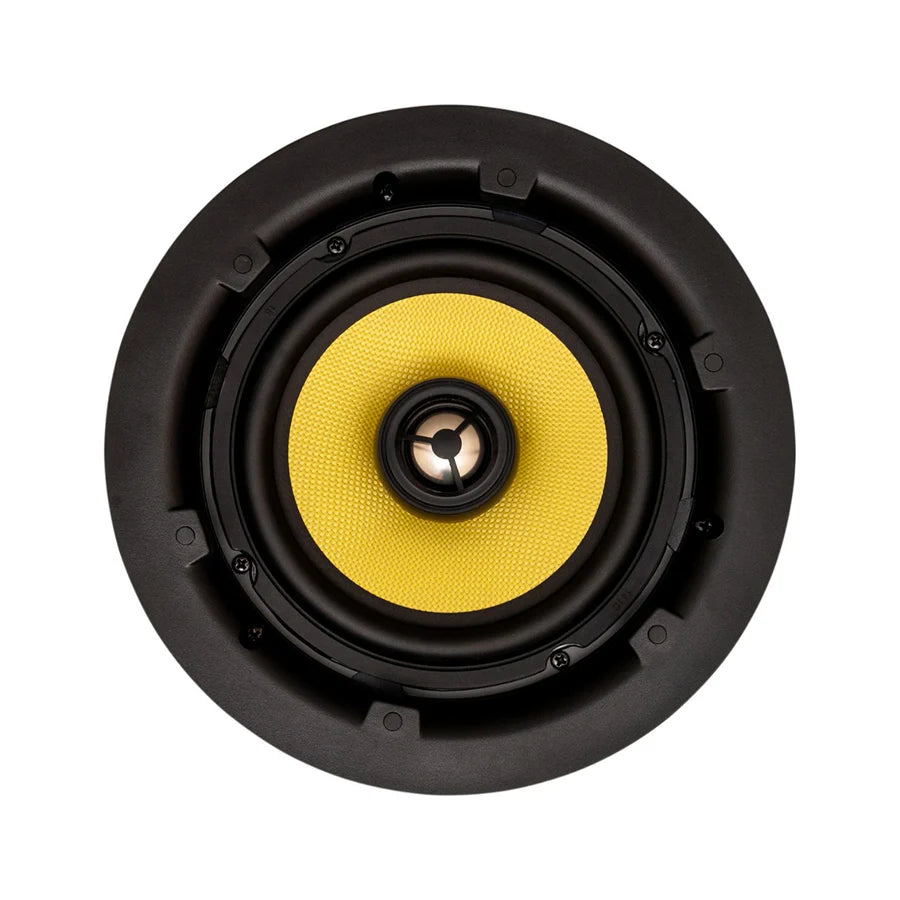

• High quality sound: 1” TPTTD Taga Pure Titanium Tweeter Dome and 6.5” Kevlar® mid-woofer.
\n

\n  \n

Specifications

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

\n Design	In-ceiling active system with Bluetooth®, Reduced bezel, Magnetically mounted grill, TEI mounting bracket, TIMPC enclosure
\n Amplifier power	2 x 30W RMS, 110W Dynamic Peak, HPCDA Class D
\n Wireless connectivity	Bluetooth® v4.0
\n Frequency response	38Hz - 20kHz
\n Impedance	8ohm
\n Sensitivity	89dB (1W / 1 m)
\n High-frequency driver	25 mm (1”), TPTTD Swivel mount
\n Bass-Midrange driver	165 mm (6.5”), Kevlar®
\n Analog inputs	LINE IN stereo (RCA / 3.5mm) Input Sensitivity: 400mV (RCA / 3.5 mm)
\n Total Harmonic Distortions	≤0.2%
\n Signal/Noise ratio	≥92db
\n Features / accessories	Bass / Treble regulation, Bluetooth® priority, Auto standby, Front and rear IR receiver, RS-232 terminal (Phoenix connector), Remote controller, DC power adapter, (4m DC cable, 0.5m detachable power cord)
\n Dimensions (H x W x D or Dia x D)	23 x 9.5 cm (adapter 3.2 x 5.2 x 12 cm)
\n Cutout Dimensions (H x W or Dia)	19.8 cm
\n Minimum Mounting Depth	13 cm
\n AC power / power consumption	DC 24V, 3A, AC 100-240V 50/60Hz, 70W
\n Weight	Active: 1.3 kg / Passive: 1.2 kg
