SONODYNE SIC 3460

The SIC 3460 is a special purpose ceiling mounted loudspeaker. It has a dual concentric PP cone driver to deliver high SPL and frequency range. The 20 degree tilt allows it to be used not only for height channels in immersive multichannel audio formats like Dolby Atmos ® but also for room corner installation for music and speech. The rotatable tweeter allows for finer adjustments. For room filling sound for music and movies choose the SIC 3460.

Easily blends into interiors

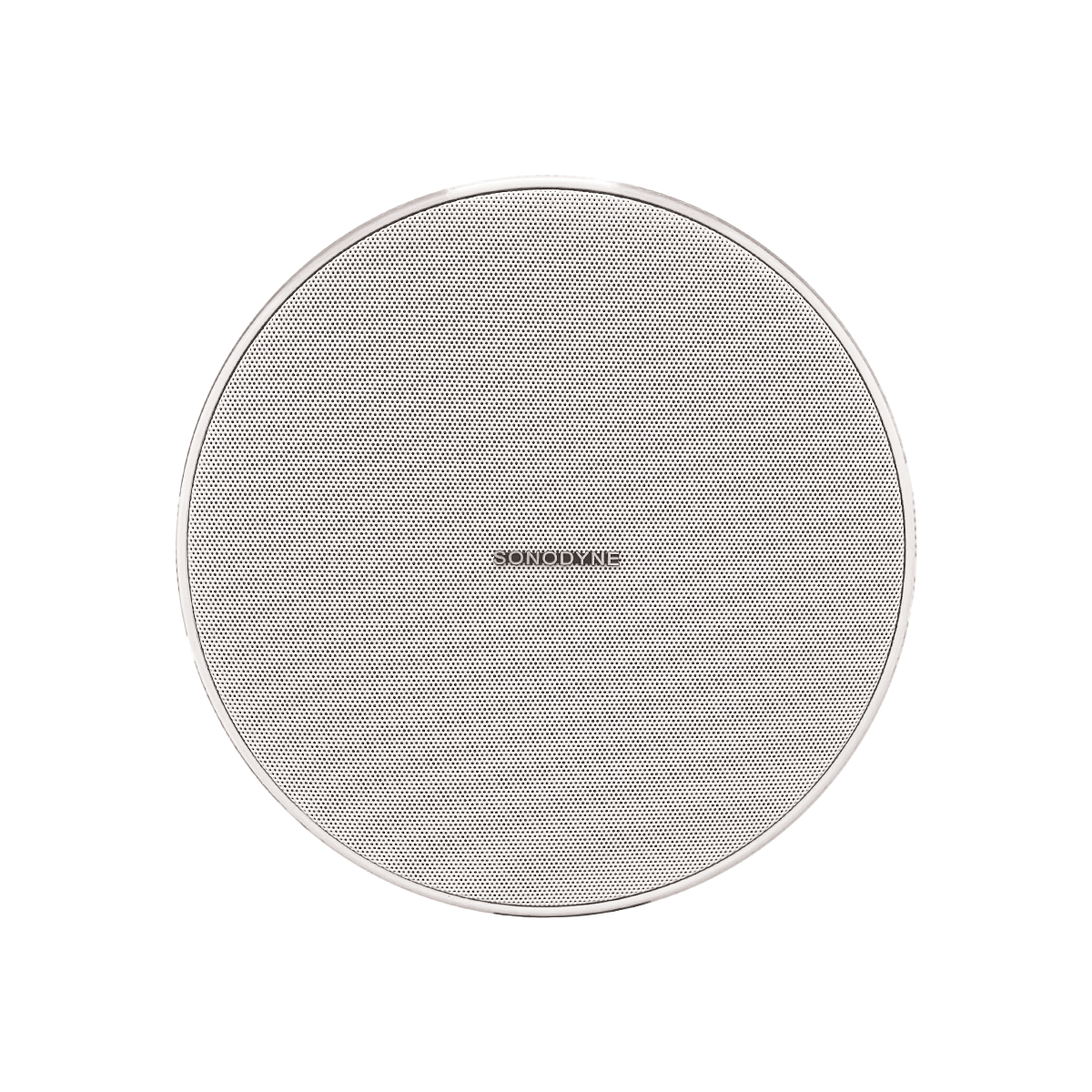

The magnetic grill and the easy to install locking mechanism allows for a great looking, and easy installation

Excellent sonics

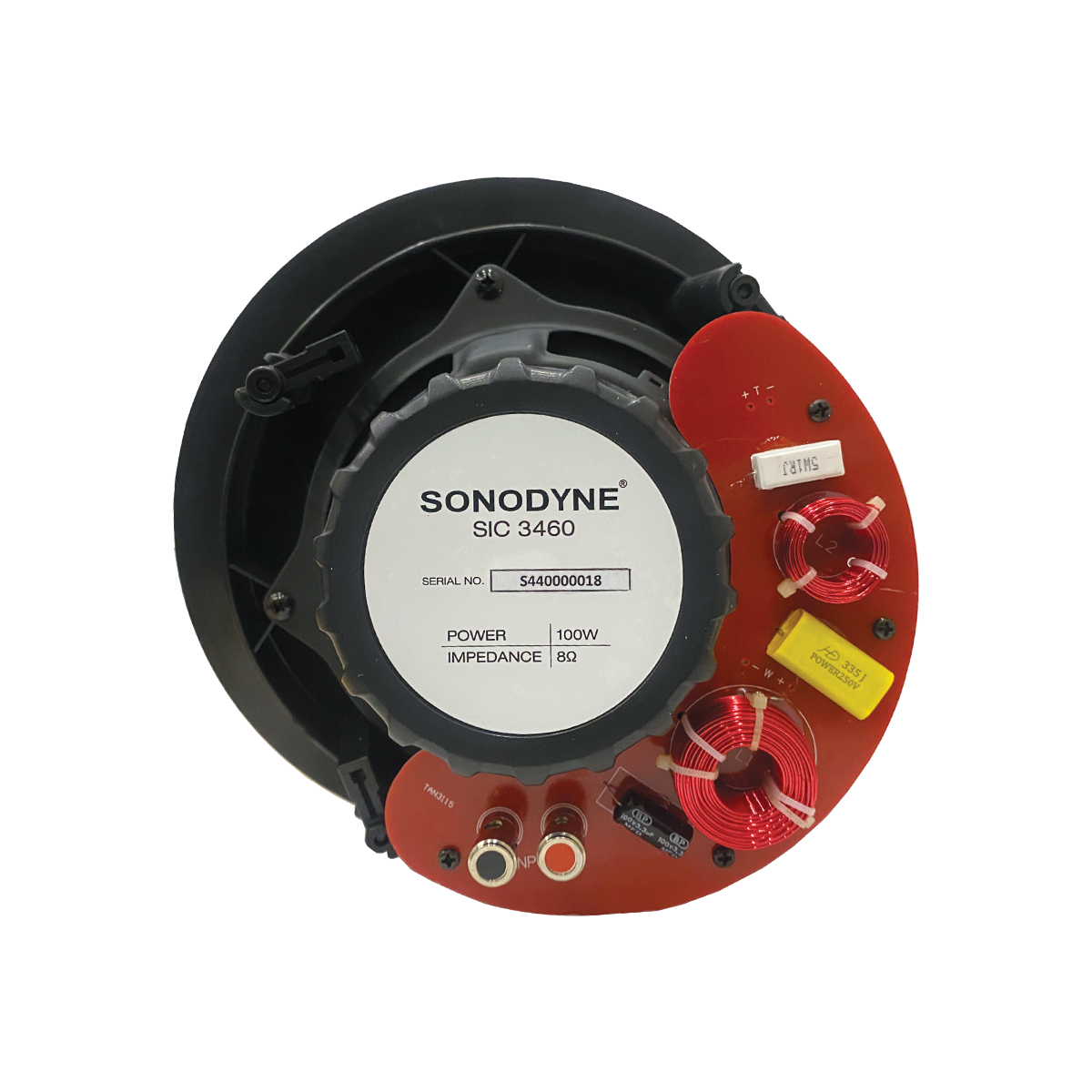

The dual concentric PP cone driver in conjuction with the elaborate 2 way crossover results in a balanced and dynamic sonic response



Suited for height channels

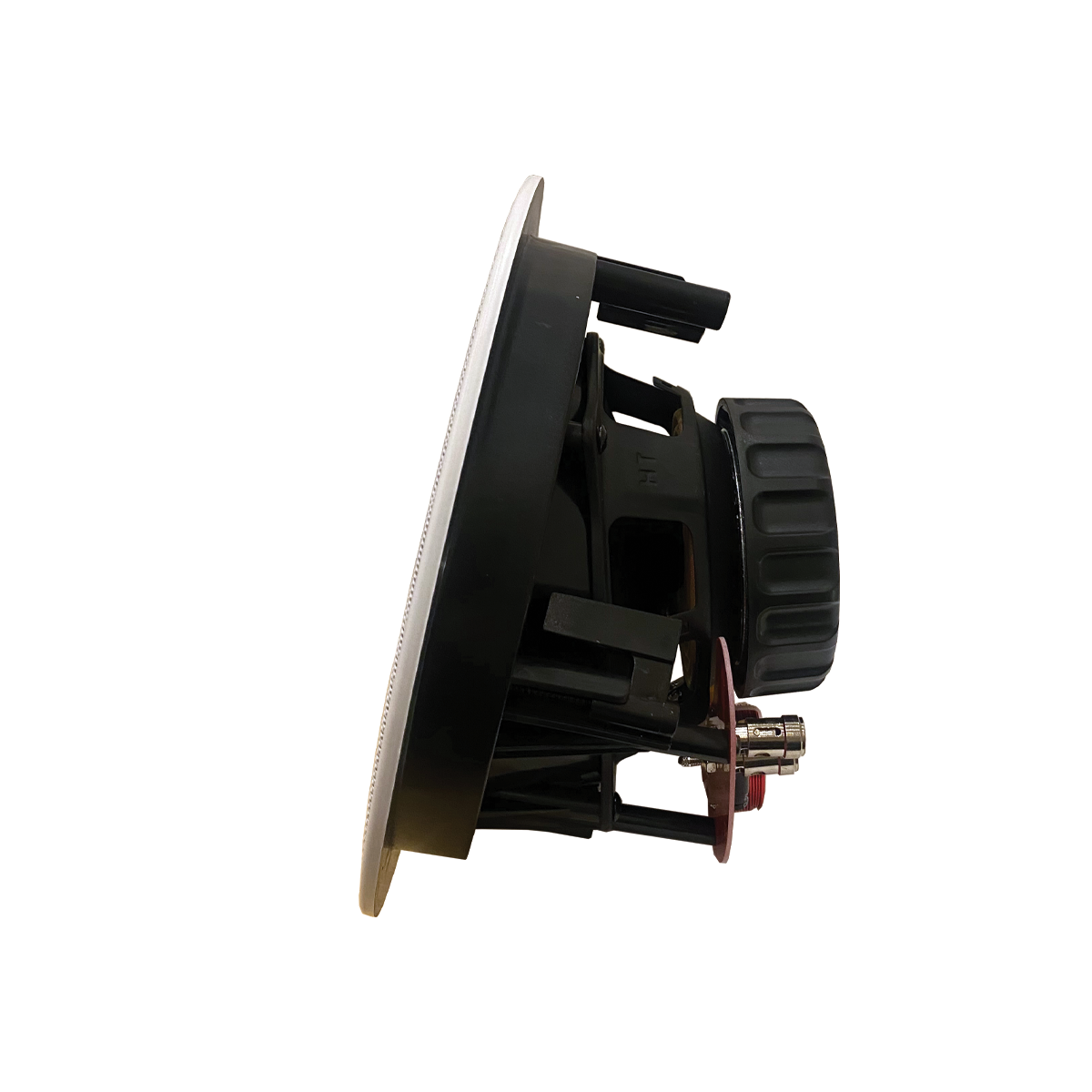

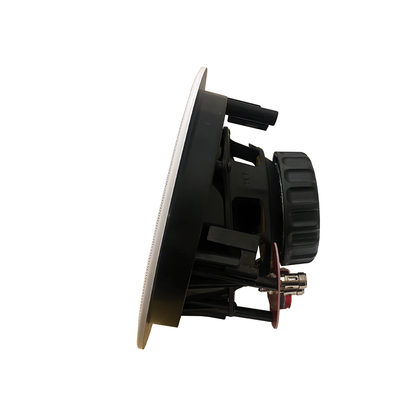

The driver is tilted at 20 degrees to the ceiling allowing for a smooth off axis response in tune with the requirement of height channels in immersive surround sound formats like Dolby Atmos®

HF fine tuning

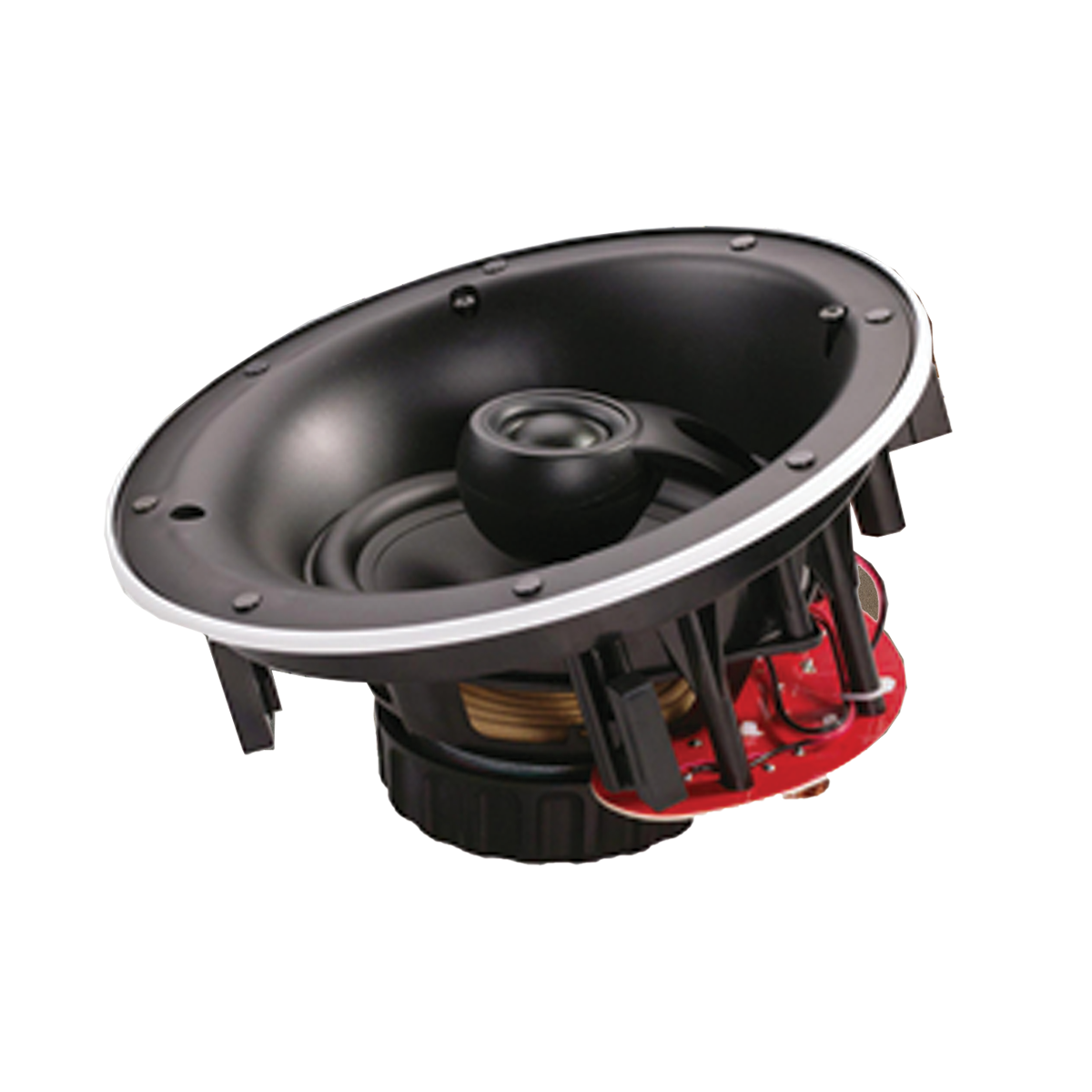

The directional tweeter encased in a moulded spherical enclosure can be rotated for achieving further directional precision

Specification	Details
Type	In-Ceiling Speaker
Design	2 Way with angled transducers
Transducer Size	1 x 6" Coaxial Speaker
Amplifier Power	70 watt
Nominal Impedance	8Ω
Sensitivity	91dB
Frequency Response	70Hz – 20kHz
Outer Dimensions	135mm depth x 207mm diameter
Cutout Dimensions	210mm
Weight	2.45kg
Grille	Magnetic
