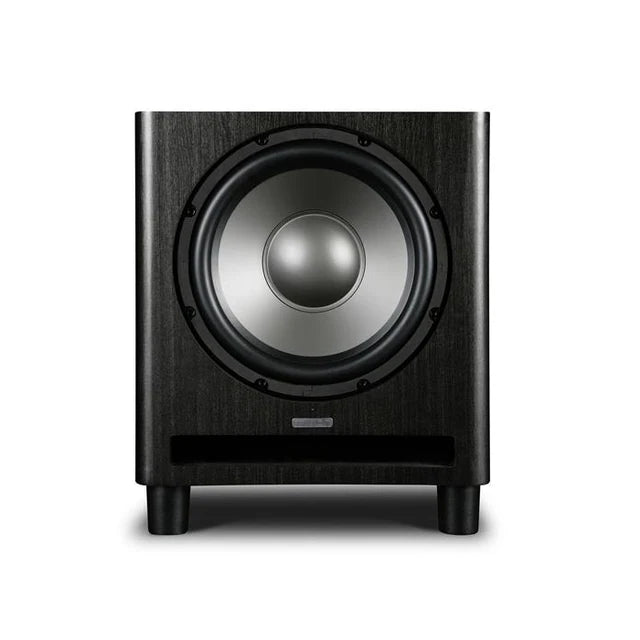

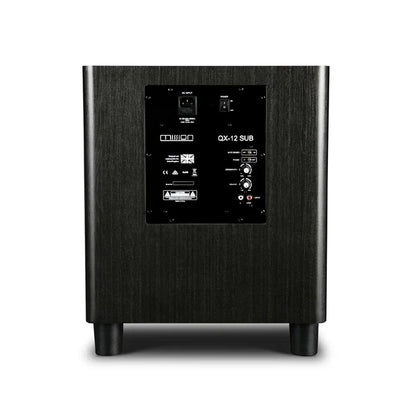

Mission QX-12 Sub MKII- 12" Powered Subwoofer

Name: Mission QX-12 Sub MKII- 12" Powered Subwoofer
Brand: Cinesound
SKU: CINE587
Price: 100000.00 INR
Availability: InStock

Rs. 100,000.00

Sale Sold out

Taxes included.

Mission brings its 40 years of audio expertise to an all-new speaker range. The QX range has striking looks and impressive performance - offering amazing value in both hi-fi and AV set-ups. Advanced new designs and extensive, exacting listening tests have evolved a loudspeaker that offers exciting and dramatic performance, no matter what style of music or movies - you prefer. Five core hi-fi models - 2 bookshelf designs and 3 floor standing speakers - are joined in the Mission QX range by a dedicated centre speaker, two-way surround speaker and selection of subwoofers. \n

Advanced DiaDrive cone system - front inverted dome cone delivers smooth response, driven by secondary sub cone to transfer maximum transient impact from the motor system
Oversized magnet motor system offers high sensitivity for maximum dynamic impact from any amplifier
New ‘ring dome’ treble unit offers high levels of musical detail with low distortion - the usual dome cavitation effects are avoided.
Slot port is profiled to reduce ‘chuffing’ distortion, yielding accurate bass performance
Carefully crafted acoustic crossover slopes achieve perfect integration between the drivers for a seamless performance
Crossover uses laminated iron core bass coil, audiophile standard polypropylene capacitors, spaced on the PCB to avoid magnetic field interaction

\nTHE DESIGN CONCEPT \n \nQX series was designed to marry advanced engineering with a highly attractive and unique design that lets the speakers fit perfectly into the modern home. The front panel appearance hints at the advanced technology inside the speakers whilst presenting an attractive face to the listener. \n \nREVERSE GEOMETRY DRIVEN DESIGN \n \nMission QX series utilizes Mission’s classic IDG (Inverted Driver Geometry) driver format. By positioning the treble unit below the bass/midrange driver, the length of path is equalised so the sound waves coincide at the listener’s head height. This principle improves ‘time alignment’. \n \nNEW “RING DOME” TREBLE UNIT \n \nNew ‘ring dome’ treble unit offers high levels of musical detail with low distortion - the usual dome cavitation effects are completely avoided \n \nDual ring radiator – Mission’s exclusive ‘ring dome’ utilizes a woven, textile material formed in a double ring arrangement. The combination of textile dome and multi-ring surround applied optimum stiffness to the maximum radiating area. \n \nTwin rear cavity non-reflecting design – back pressure from the diaphragm is vented to a twin rear cavity, reducing resonance and maintaining a wide operating bandwidth. \n \nWoofer \n \nBass drivers feature Mission DiaDrive system \n \nNatural midrange quality with superb bass transient impact is provided by a seam-free curvilinear cone formulated from a mixture of soft pulp and acrylic fiber specially designed for midrange clarity and lucidity. \n \nDiaDrive twin cone design： \n \nBacking the curvilinear front cone is a stiff, conical support with increased area of contact with the voice coil for outstanding transient impact. \n \n“Comb-Tooth Trim” \n \nThe drive unit surround and fixing screws are cleverly concealed behind this unique trim design giving a highly technical look to the front face of the speaker. \n

Specifications

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Drive Units	1 x (12″) 300 mm cone long-throw
Frequency Response	35- 120 Hz (+-±3dB)
Ampliﬁer Power Output	300 W
Peak Power Output	450 W
Line Input Sensitivity	200mV for maximum output
Crossover Range	30 – 150 Hz
Inputs	Stereo line in (2 x RCA phono)
	Mono (LFE) line in (RCA phono)
Input Impedance	Line input 10 k
	LFE 5 kOhms

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Signal-to-noise Ratio (s/n)	≥ 85 dB
Avg. Max Output @1m	118 dB
Features	Phase inversion, auto on-off
Dimensions	Height: (420+58) mm (with feet)
	Width: 400 mm
	Depth: (450+15) mm
Net Weight	23 kg
