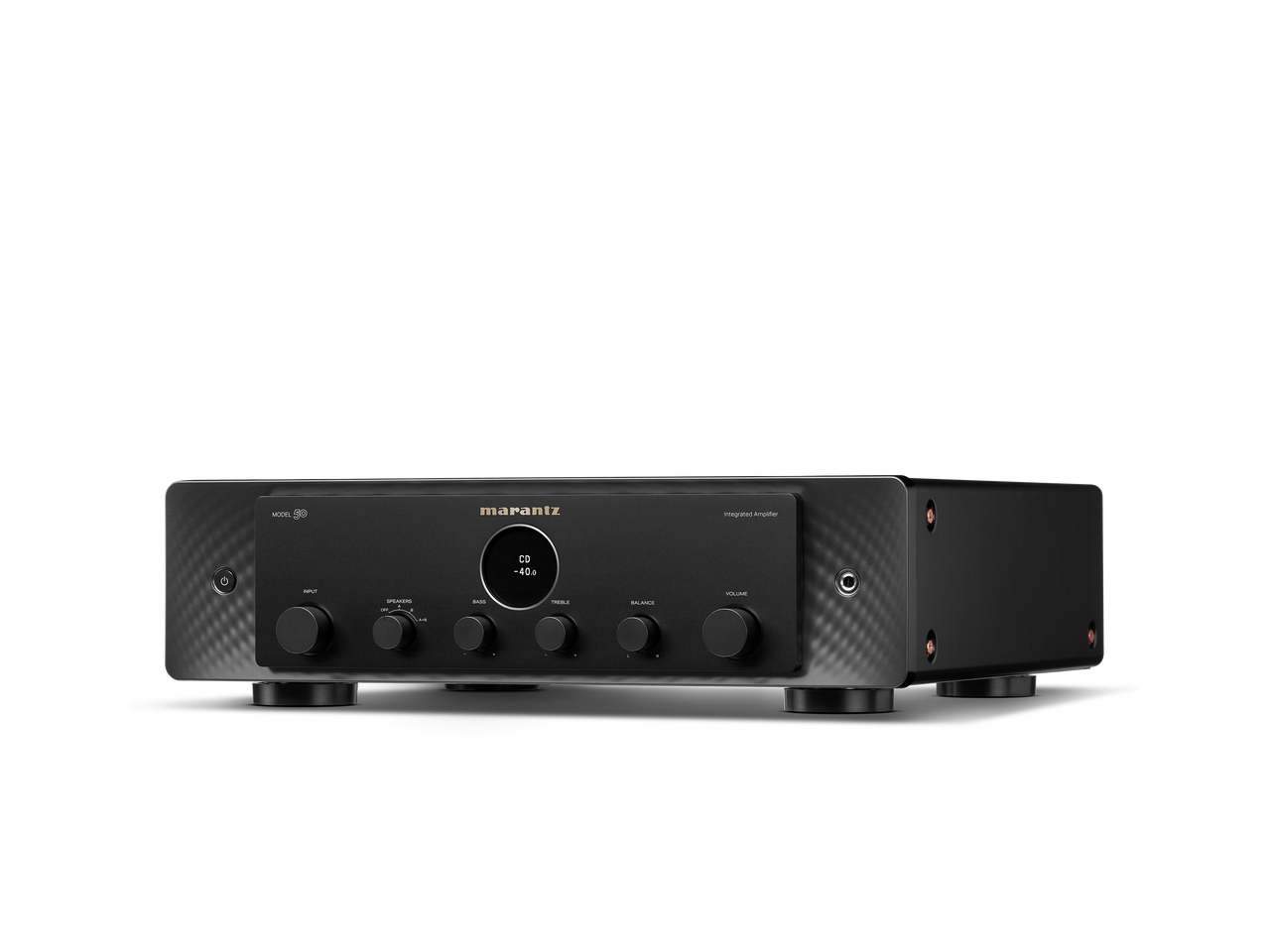

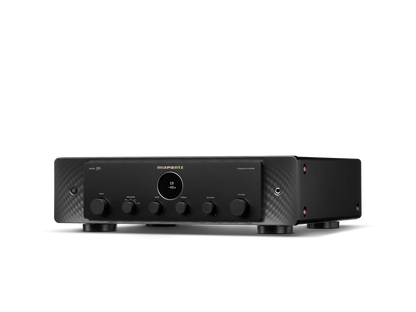

Marantz Model 50 Integrated Stereo Amplifier

Features of the Marantz Model 50 Integrated Stereo Amplifier

• Channels2

• Current Feedback Topology Yes

• Phono EQ: Standard / Marantz Musical / Marantz Musical Premium– / Yes / –

• Digital in: USB-B / optical / coaxial / USB-A– / – / – / –

• HDAM versionSA3, SA2

• Power Transformer: Toroidal / El Yes / –

• High Grade Audio Components Yes

• Customized Components Yes

• Symmetric PCB Layout Yes

• Aluminum extrusion heat sink Yes

• Balance / Bass / Treble / Loudness Yes / Yes / Yes / –


• Linear Drive Power Supply Yes

• Linear volume control Yes

• Schottky diodes Yes

• Input buffer amp (all inputs / CD only)– / –

• Solid Heat Sinks Yes

• System block shielding: Copper / metal / nonxenon

• Bottom Plate triple

• Low noise OLED display Yes

• Source Direct Yes

• Power Amp direct Yes


• Audio Inputs6

• Digital in: USB-B / optical / coaxial / USB-A– / – / – / –

• Phono Input: MM / MC Yes / –

• Audio Outputs1

• Balanced In / Out– / –

• Pre-out / Main-in Yes + subwoofer / –

• Power Amp Direct IN Yes

• Gold Plated Cinch Yes

• Speaker A / B Yes

• Speaker Terminals Marantz SPKT-1+

• Number of terminals 4

• D-Bus Yes

• Headphone Out Yes


• Power Output (8 / 4 Ohm RMS)70 W / 100 W

• Frequency Response5 Hz–100 kHz

• Total Harmonic Distortion0.02 %

• Damping Factor100

• Input Sensitivity: MM1.4 mV / 47 kΩ

• Signal to Noise Ratio: MM/MC87 dB / –

• Input Sensitivity: High level185 mV / 16 kΩ

• Signal to Noise Ratio: High level116 dB (2 V input)

• Input Sensitivity: Power Amp Direct IN1.5 V / 15 kΩ

• Signal to Noise Ratio: Power Amp Direct IN125 dB

• Treble Control± 10 dB at 15 kHz

• Bass Control± 10 dB at 50 Hz

• Metal Front Panel Yes

• Power Consumption in W220

• Standby Consumption in W0.3

• Auto Power off Yes

• Detachable Power Cable Yes

• Remote ControlRC003PMND

• System Remote Function Yes

• Maximum Dimensions (W x D x H) in mm442 x 431 x 130

• Weight in kg14.2

• Carton Maximum Dimensions (W x D x H) in mm527 x 517 x 255

• Carton Weight (inc. product) in kg17.5
