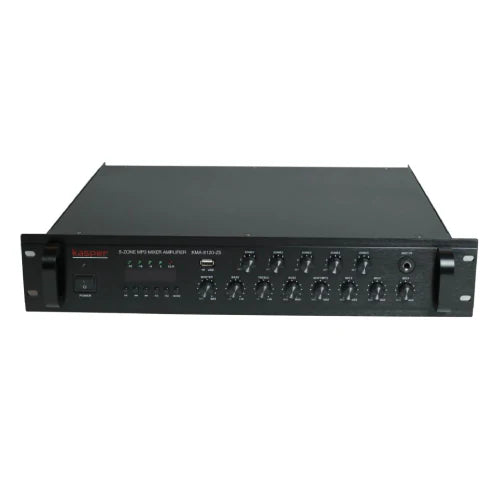

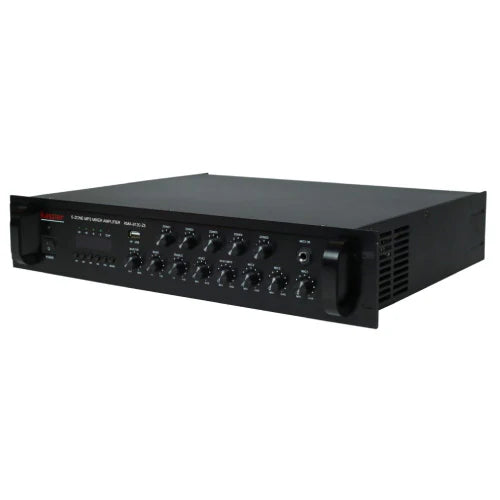

Kasper KMA-8500-Z5 500W 5 Zone Mixer Amplifier with MP3/FM Tuner/Bluetooth - Each

The KMA-8500-Z5 is a powerful 5-zone mixer amplifier with a range of features designed for audio distribution across multiple zones. Here’s a breakdown of its key specifications:

• Rated Output Power: 500W
• Output Impedance:
  • Low impedance: 4-16Ω
  • 70V output: 10Ω
  • 100V output: 20Ω
• AUX Output Level: 0.775V (0dBV)
• Input Level:
  • MIC 1, 2, 3: 600Ω, 10-15mV (unbalanced)
  • AUX 1, 2: 10KΩ, 200-470mV (unbalanced)
• Extra Inputs: SD slot, USB slot, RCA connector
• Frequency Response: 60Hz - 15KHz (±3dB)
• Total Harmonic Distortion (T.H.D.): <0.5% at 1KHz at 1/3 rated output power
• Signal-to-Noise Ratio (S/N Ratio):
  • AUX 1, 2: ≥72dB
  • Tone: ≥85dB
• Tone Controls:
  • Bass: ±10dB at 100Hz
  • Treble: ±10dB at 12KHz
• Muting Function: MIC1 overrides other input signals at 0~30dB
• Protection:
  • AC fuse (×8A)
  • Overload protection
  • Short circuit protection
  • High-temperature protection
• Cooling: Built-in cooling fan
• Power Supply: AC 220~240V, 50-60Hz
• Power Consumption: 675W
• Dimensions:
  • Product: 89(H)×483(W)×366(D) mm
  • Packaging: 185(H)×520(W)×435(D) mm
• Weight:
  • Net: 15.5 kg
  • Packaged: 17.2 kg

This amplifier is well-suited for commercial applications where multiple zones require independent control of audio output, such as in large venues, hotels, or conference rooms. It also supports MP3 playback, FM tuner, and Bluetooth connectivity for versatile audio input options.
