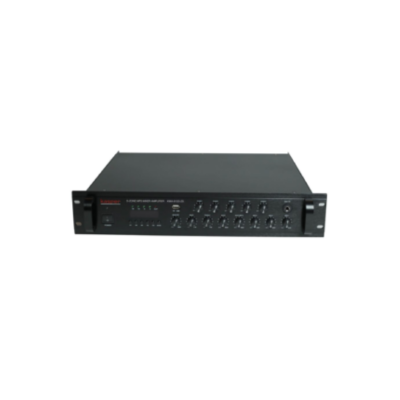

Kasper KMA-8360-Z5 350W 5 Zone Mixer Amplifier with MP3/FM Tuner/Bluetooth - Each

The Kasper KMA-8360-Z5 5 Zone Mixer Amplifier is a high-powered, versatile amplifier with a rated output of 350W, designed for managing sound distribution across multiple zones. It comes with built-in MP3 playback, FM tuner, and Bluetooth capabilities, making it ideal for commercial and large-scale installations.

Key Features:

• Rated Output Power: 350W, suitable for larger venues requiring high-powered sound distribution.
• Impedance Compatibility:
  • Low impedance (4-16Ω) for direct speaker connections.
  • High-voltage output: 70V with 14Ω and 100V with 28Ω, ideal for distributed sound systems.
• 5-Zone Output: Supports five independent zones, each capable of 100V output, which allows precise control of audio across different areas.
• Inputs:
  • 3 MIC inputs with 600Ω impedance and 10-15mV sensitivity (unbalanced).
  • 2 AUX inputs with 10KΩ impedance and 200-470mV sensitivity (unbalanced).
  • Additional input options via SD slot, USB slot, and RCA connectors, making it adaptable for various audio sources.
• Tone Control:
  • Bass: ±10dB at 100Hz.
  • Treble: ±10dB at 12KHz.
• Muting Function: MIC1 can override other input signals with an adjustable muting range of 0~30dB, ensuring important announcements are clearly heard.
• Protection Features: Includes an AC fuse, overload, short circuit, and high-temperature protection to safeguard the amplifier during use.

Technical Specifications:

• Frequency Response: 60Hz-15KHz (±3dB), providing clear and balanced sound for various audio applications.
• Total Harmonic Distortion (T.H.D.): Less than 0.5% at 1KHz, ensuring high-quality audio output with minimal distortion.
• Signal-to-Noise Ratio (S/N):
  • MIC inputs ≥72dB.
  • AUX inputs ≥85dB.
• Cooling System: Features a DC 12V fan for active cooling, ensuring stable operation even during extended use.
• LED Indicators: Displays power and output levels (2, 4, 6, 8, 10), making it easy to monitor performance.
• Power Supply: Operates on AC 220~240V, 50-60Hz, compatible with standard power grids.
• Power Consumption: 485W, optimized for long-term usage in high-power applications.

Physical Specifications:

• Product Dimensions: 89(H) × 483(W) × 366(D) mm.
• Packaging Dimensions: 185(H) × 520(W) × 435(D) mm.
• Weight:
  • Net Weight: 14.5 kg.
  • Packaging Weight: 15.8 kg.

Applications:

The KMA-8360-Z5 is designed for environments requiring multi-zone audio control, such as:

• Commercial buildings with different audio needs in separate areas like offices, conference rooms, and hallways.
• Shopping centers where music or announcements are needed in distinct zones.
• Large venues or institutions that need powerful sound distribution in multiple rooms or sections.
• Hospitality sectors such as hotels and resorts for sound management across various spaces like restaurants, lobbies, and function rooms.

This amplifier offers a robust solution for high-powered, multi-zone audio distribution with flexible input options and strong performance features.
