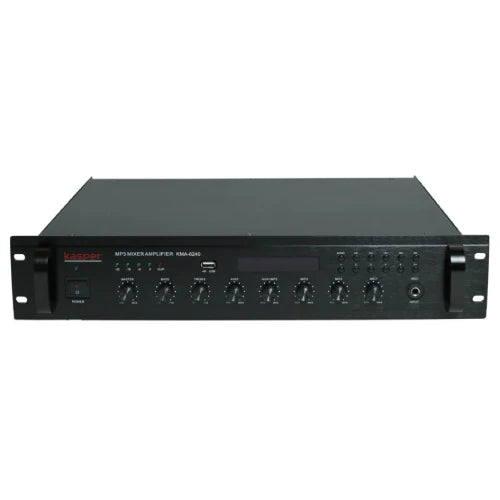

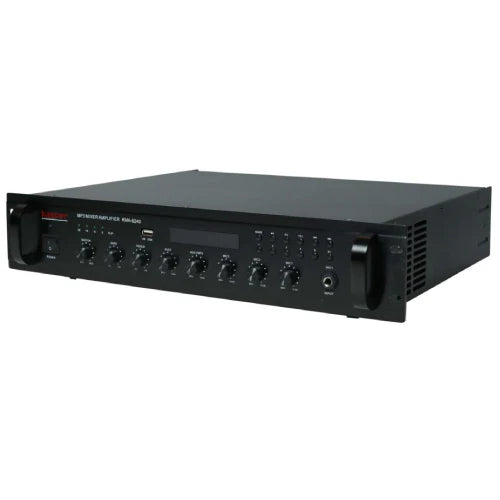

Kasper KMA-8240-Z5 240W 5 Zone Mixer Amplifier with MP3/FM Tuner/Bluetooth - Each

The Kasper KMA-8240-Z5 5 Zone Mixer Amplifier is a powerful and versatile audio solution designed for multi-zone sound management with a built-in MP3 player, FM tuner, and Bluetooth connectivity. Its rated output of 240W makes it suitable for larger installations requiring multiple zones of sound distribution.

Key Features:

• Rated Output Power: 240W, providing ample power for medium to large-sized spaces.
• Impedance Compatibility:
  • Low impedance (4-16Ω) for direct speaker connection.
  • High-voltage output: 70V with 19Ω and 100V with 39Ω, ideal for distributed sound systems across multiple zones.
• 5-Zone Output: Allows independent audio control in five zones with a 100V output, making it suitable for large environments with distinct audio needs across different areas.
• Inputs:
  • 3 MIC inputs with 600Ω impedance and 10-15mV sensitivity (unbalanced).
  • 2 AUX inputs with 10KΩ impedance and 200-470mV sensitivity (unbalanced).
  • Additional input options include an SD slot, USB slot, and RCA connectors for versatile media playback.
• Tone Control:
  • Bass: ±10dB at 100Hz.
  • Treble: ±10dB at 12KHz.
• Muting Function: MIC1 overrides other input signals at an adjustable range of 0~30dB, useful for making announcements or paging.
• Protection Features: Includes an AC fuse, overload protection, short circuit protection, and high-temperature safeguards, ensuring reliable operation.

Technical Specifications:

• Frequency Response: 60Hz-15KHz (±3dB), delivering a balanced sound range suitable for various applications.
• Total Harmonic Distortion (T.H.D.): Less than 0.5% at 1KHz with 1/3 rated output power, ensuring clarity and low distortion.
• Signal-to-Noise Ratio (S/N):
  • MIC inputs ≥72dB.
  • AUX inputs ≥85dB.
• Cooling System: Equipped with a DC 12V fan to ensure efficient cooling during extended use.
• LED Indicators: Display power and output levels (2, 4, 6, 8, 10) for easy monitoring.
• Power Supply: Operates on AC 220~240V, 50-60Hz.
• Power Consumption: 350W, making it suitable for long-term use without excessive energy consumption.

Physical Specifications:

• Product Dimensions: 89(H) × 483(W) × 366(D) mm.
• Packaging Dimensions: 185(H) × 520(W) × 435(D) mm.
• Weight: Net weight is 13.8 kg, and packaging weight is 15.4 kg.

Applications:

The KMA-8240-Z5 is perfect for environments that require independent control of audio in multiple areas, such as:

• Hotels with separate audio zones like lobbies, conference rooms, and dining areas.
• Shopping malls that need background music or announcements across various sections.
• Schools or universities with different classrooms or auditoriums requiring independent sound control.
• Corporate offices where meeting rooms, corridors, and workspaces need separate audio systems.

The Kasper KMA-8240-Z5 is a high-performance solution for venues that demand flexible and powerful audio control across multiple zones, complete with MP3, FM, and Bluetooth functionality for diverse media playback options.
