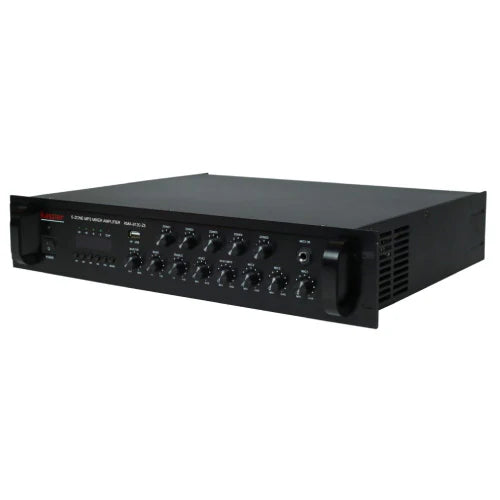

Kasper KMA-8120-Z5 120W 5 Zone Mixer Amplifier with MP3/FM Tuner/Bluetooth - Each

The Kasper KMA-8120-Z5 5 Zone Mixer Amplifier is a versatile audio solution designed for multi-zone sound distribution with built-in MP3, FM tuner, and Bluetooth connectivity. With a rated output power of 120W, it is suitable for various audio installations that require flexible control across multiple areas or zones.

Key Features:

• Rated Output Power: 120W, providing moderate power suitable for small to medium-sized spaces.
• Impedance Compatibility:
  • Low impedance (4-16Ω) for direct sound output.
  • High-voltage output: 70V with 38Ω and 100V with 77Ω, ideal for distributed audio across zones.
• 5-Zone Output: Allows you to manage and distribute audio to five different zones independently, each with a 100V output.
• Inputs:
  • 3 MIC inputs with 600Ω impedance and 10-15mV sensitivity (unbalanced).
  • 2 AUX inputs with 10KΩ impedance and 200-470mV sensitivity (unbalanced).
  • Extra input options include an SD slot, USB slot, and RCA connectors, offering flexibility for various audio sources like USB drives or SD cards.
• Tone Control:
  • Bass: ±10dB at 100Hz.
  • Treble: ±10dB at 12KHz.
• Muting Function: MIC1 overrides other input signals at an adjustable range of 0~30dB, which is useful for paging or announcements.
• Protection Features: Includes AC fuse, overload protection, short-circuit, and high-temperature protection, ensuring reliable performance.

Technical Specifications:

• Frequency Response: 60Hz-15KHz (±3dB), ensuring good sound quality over a wide frequency range.
• Total Harmonic Distortion (THD): Less than 0.5% at 1KHz (1/3 rated output power), maintaining clear and distortion-free sound.
• Signal-to-Noise Ratio (S/N):
  • MIC inputs ≥72dB.
  • AUX inputs ≥85dB.
• Cooling System: A DC 12V fan provides adequate cooling during prolonged use, helping to maintain the amplifier's longevity.
• LED Indicators: Provide visual feedback for power and level output (2, 4, 6, 8, 10).
• Power Supply: Operates on AC 220~240V, 50-60Hz.
• Power Consumption: 185W, making it an energy-efficient option for continuous operation.

Physical Specifications:

• Product Dimensions: 89(H) × 483(W) × 366(D) mm.
• Packaging Dimensions: 185(H) × 520(W) × 435(D) mm.
• Weight: Net weight is 11.5 kg, with a packaging weight of 13.1 kg.

Applications:

The KMA-8120-Z5 is well-suited for environments requiring zoned audio control, such as:

• Restaurants or cafes with different audio needs for separate areas.
• Retail stores that want to control background music across multiple sections.
• Offices or schools with various rooms requiring independent sound control.
• Hospitality venues where different zones may have varying audio requirements, such as lobbies, meeting rooms, or corridors.

This amplifier's multi-zone control, paired with its Bluetooth, FM tuner, and MP3 playback options, makes it a flexible and efficient audio management tool for small to medium-sized installations
