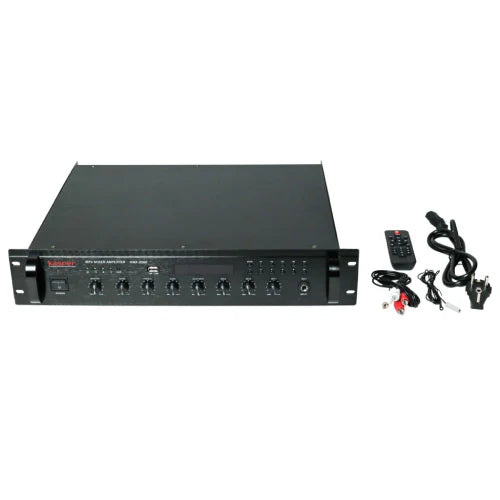

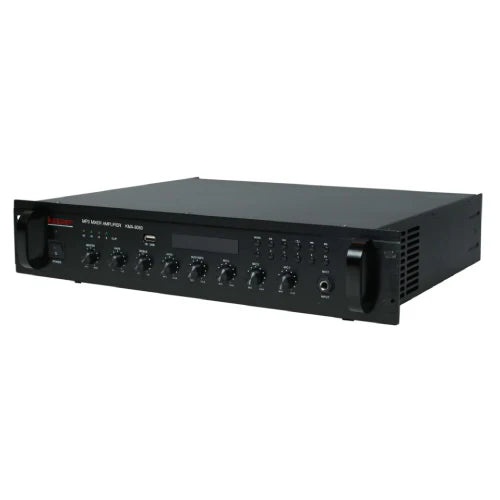

Kasper KMA-8120 120W Mixer Amplifier with MP3/FM Tuner/Bluetooth - Each

The Kasper KMA-8120 Mixer Amplifier is a compact and efficient amplifier suitable for small-scale audio installations. Featuring MP3/FM tuner and Bluetooth capabilities, it provides a flexible solution for environments like classrooms, small retail spaces, or meeting rooms.

Key Features:

• Rated Output Power: 120W, perfect for smaller venues and applications.
• Impedance Compatibility:
  • Low impedance (4-16Ω) for basic sound system setups.
  • High voltage output: 70V with 38Ω and 100V with 77Ω, designed for distributed audio systems.
• Inputs:
  • 3 MIC inputs with 600Ω impedance and 10-15mV sensitivity (unbalanced).
  • 2 AUX inputs with 10KΩ impedance and 200-470mV sensitivity (unbalanced).
  • Additional input options include an SD slot, USB slot, and RCA connector for versatile audio sources.
• Outputs: Single-zone output at 100V, suitable for wide-area sound coverage.
• Tone Control:
  • Bass: ±10dB at 100Hz.
  • Treble: ±10dB at 12KHz.
• Muting Function: MIC1 has priority over other inputs, allowing for overriding signals with a 0-30dB adjustable muting range.
• Protection Features: AC fuse, overload protection, short-circuit, and high-temperature protection ensure the safety and durability of the amplifier.

Technical Specifications:

• Frequency Response: 60Hz-15KHz (±3dB), covering essential audio ranges for clear sound reproduction.
• Total Harmonic Distortion (THD): <0.5% at 1KHz (1/3 rated output power) for high-quality audio output.
• Signal-to-Noise Ratio (S/N):
  • MIC inputs ≥72dB.
  • AUX inputs ≥85dB.
• Cooling System: Equipped with a DC 12V fan for optimal temperature control during extended use.
• LED Indicators: For power and level control (2, 4, 6, 8, 10).
• Power Supply: AC 220~240V, 50-60Hz.
• Power Consumption: 185W.

Physical Specs:

• Product Dimensions: 89(H)×483(W)×366(D) mm.
• Packaging Dimensions: 185(H)×520(W)×435(D) mm.
• Weight: Net weight is 11.5 kg, while the packaging weight is 13.1 kg.

Applications:

The KMA-8120 is ideal for smaller environments where a reliable audio system with simple controls, multiple input options, and Bluetooth connectivity is needed. Its compact size and lower power output make it a great fit for intimate spaces or installations with moderate audio requirements.
