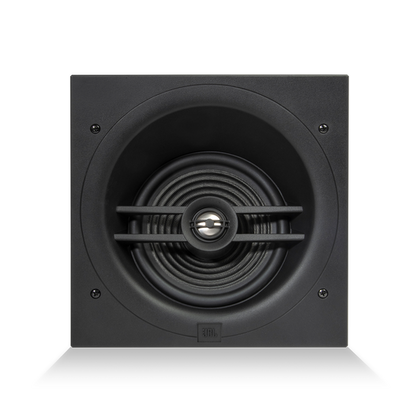

JBL Stage 260CSA - Angled In-Ceiling Speaker - Piece

JBL Stage 260CSA - Angled In-Ceiling Speaker - Piece

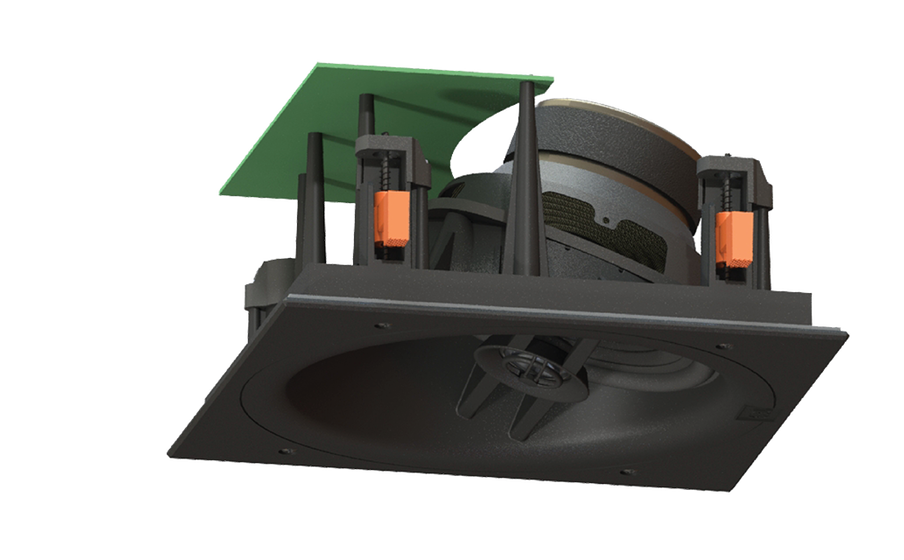

An angled baffle for aiming your sound

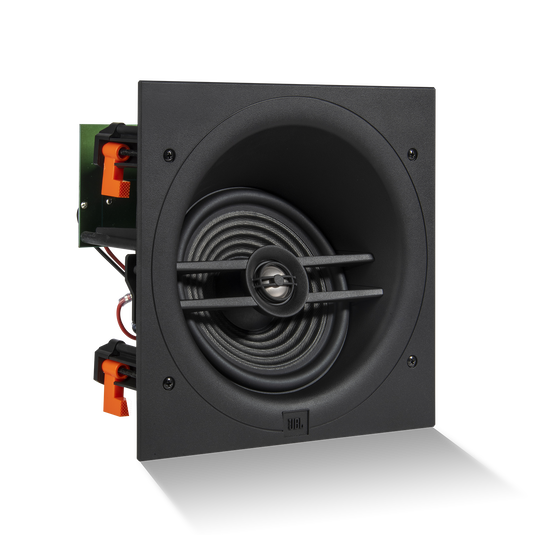

Conventional in-ceiling speakers fire straight down. While that works well in some cases, in others the speakers may lack the directionality required to give you the best sound. JBL's new Stage 260CSA in-ceiling speaker uses an angled baffle that lets you aim the sound towards your listening position even if the speaker is off-axis. It delivers exceptional performance in both two-channel music systems and home theater setups.

High-performance drivers

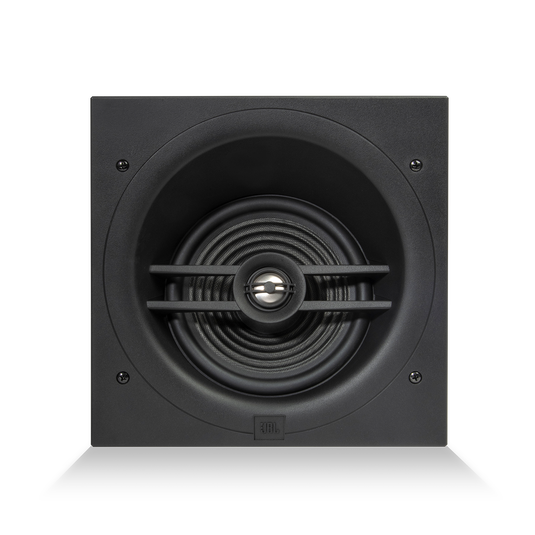

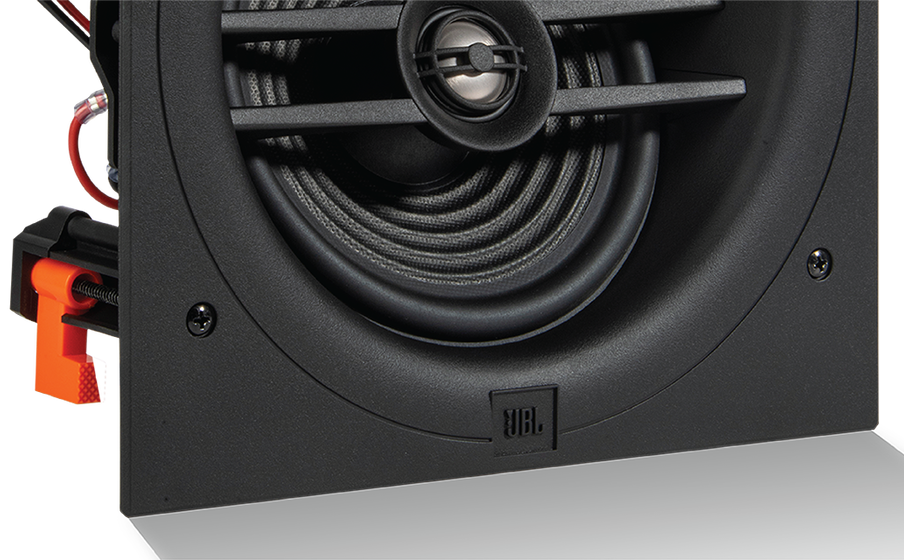

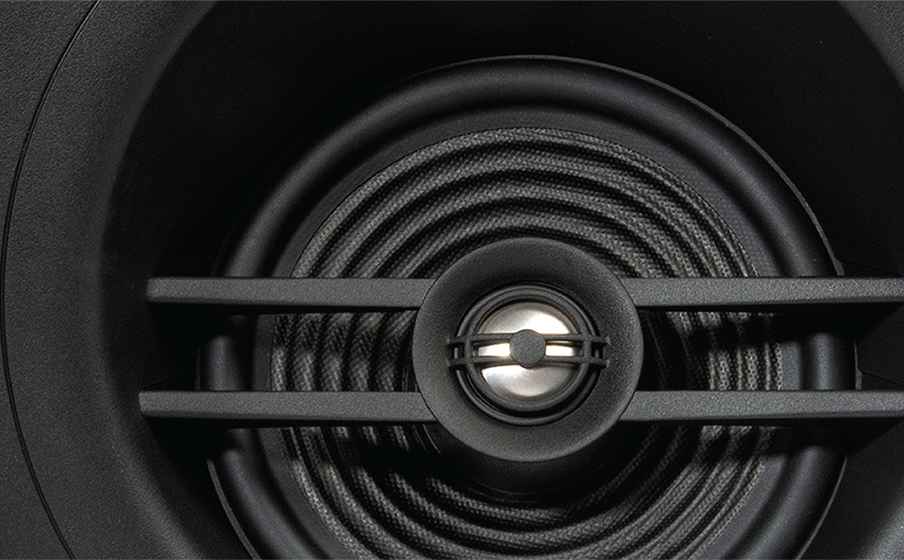

The 260CSA has a 1" aluminum dome tweeter with an acoustic lens that dishes out sparkly, clear highs. A 6-1/2" polycellulose woofer delivers smooth mids and bass. The drivers are set inside an angled, acoustically optimized baffle to aim the speaker's sound and to reduce diffraction and other types of sound-muddying distortion.

Designed for easier installation in your ceiling

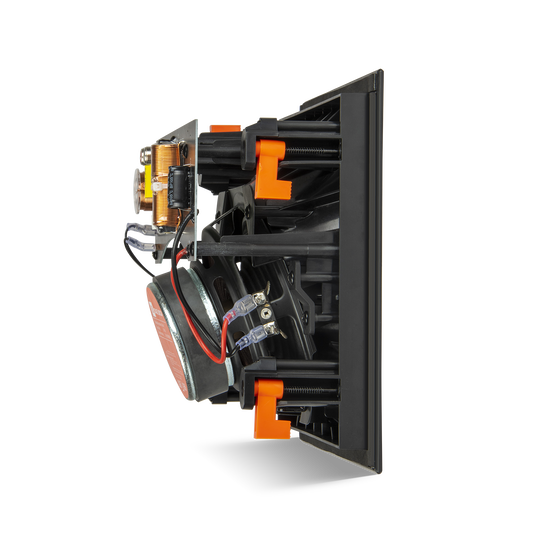

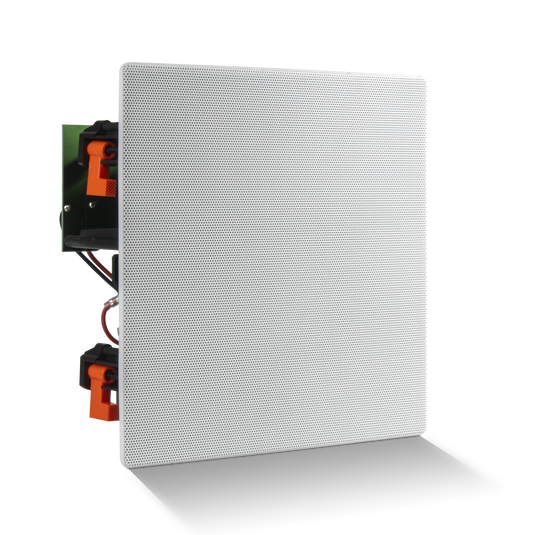

This speaker uses JBL's XL-2 installation system. The rear legs can attach to ceilings up to 2" thick, giving you plenty of versatility when it comes to placement. Once installed, the included metal, zero-bezel grille seamlessly hides the speaker inside your ceiling.

Product highlights:

• 6-1/2" polycellulose woofer

• 1" aluminum dome tweeter with acoustic lens and waveguide

• angled, acoustically optimized baffle

• frequency response: 50-25,000 Hz (-6dB)

• power handling: up to 100 watts RMS

• impedance: 8 ohms

• sensitivity: 87 dB


What's in the box:

• In-ceiling loudspeaker

• Grille

• Cut-Out Template

• Quick Start Guide


Quantity in Package Single

Tweeter Hard-Dome

Aimable Tweeter No

Woofer Composition Polycellulose

Woofer Surround Rubber

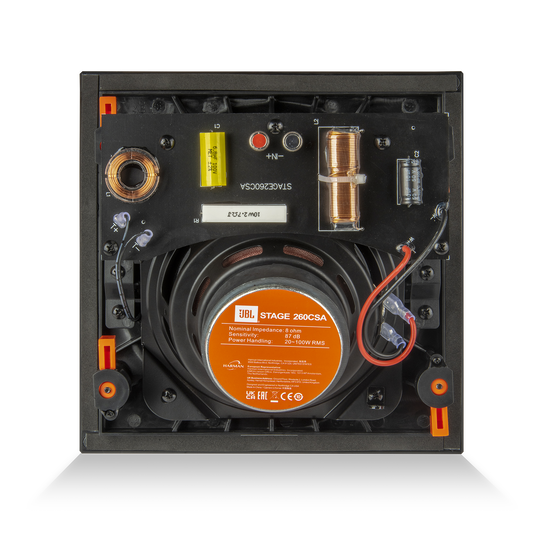

Connector Type Spring clip

Bi-Amp Inputs No

Built-in Back-box No

Indoor (Moisture-resistant) No

Outdoor (Partial Exposure) No

Outdoor (Full Exposure) No

Tweeter Size 1

Midrange Size N/A

Speaker Shape Square

Woofer Size 6.5

Power Range (Watts) 20-100

Sensitivity 87 dB

Impedance (Ohms) 8

Frequency Response 50-25kHz

Parts Warranty 5 Years

Labor Warranty 5 Years

Cutout Width (inch) 8.625

Cutout Height  (inch) 8.625

Mounting Depth  (inch) 4.875
