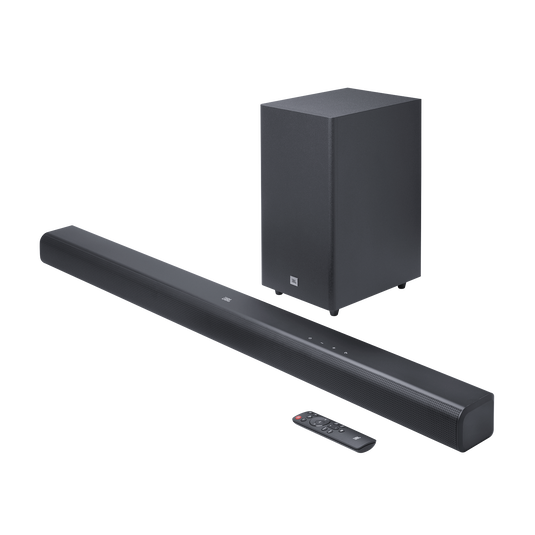

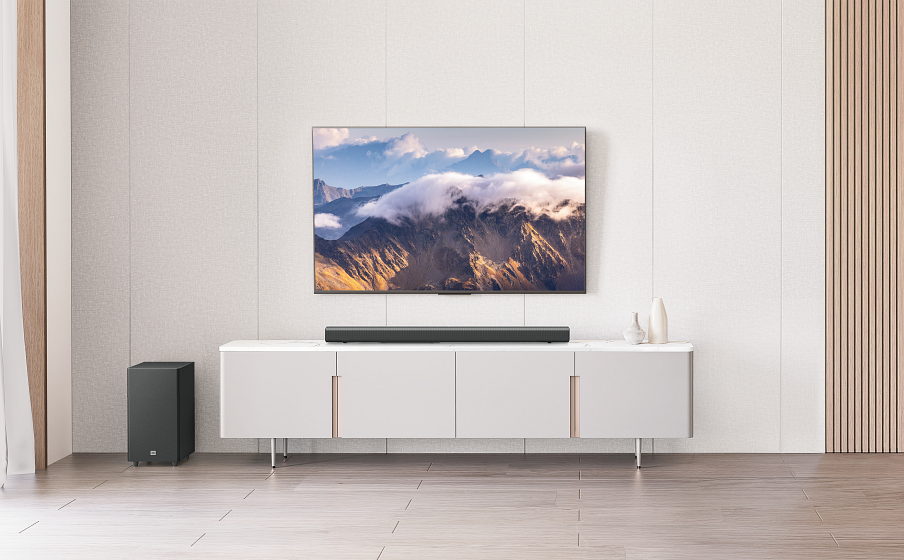

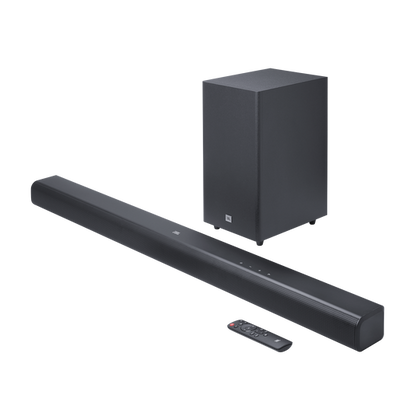

Step into a world of immersive home audio with the JBL Cinema SB590 soundbar. An explosive 440 watts of powerful Virtual Dolby Atmos® sound in a compact design plus thunderous extra-deep bass from a 6.5” wireless subwoofer combine to surround you in a whole new level of sound. A dedicated center channel means TV and film dialogue is always crystal clear. High-resolution HDMI eARC, HDMI, or optical connections give you plenty of easy set-up options. And when the TV is off, seamless Bluetooth connectivity means you can use it to play all your favorite streaming music and podcasts from any device.

General Specifications

Model

CINEMA SB590

Sound system

3.1 channel

Power supply

100 - 240V AC, ~ 50/60Hz

Total speaker power output (Max @THD 1%)

440W

Soundbar output power (Max @THD 1%)

240W

Subwoofer output power (Max. @THD 1%)

200W

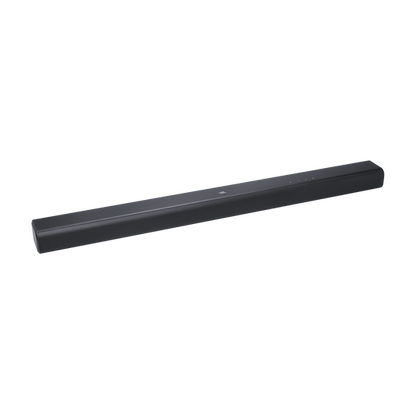

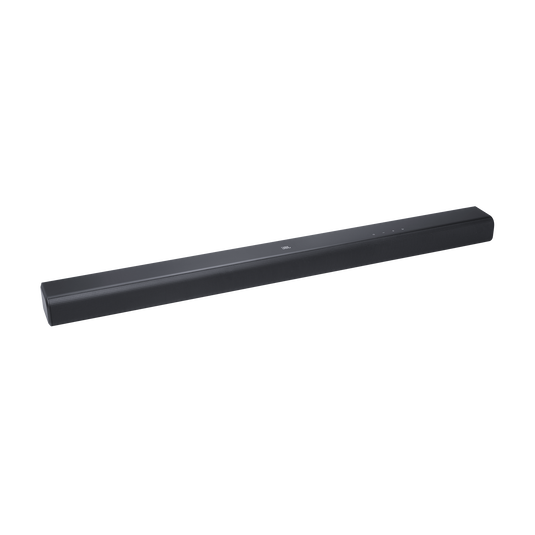

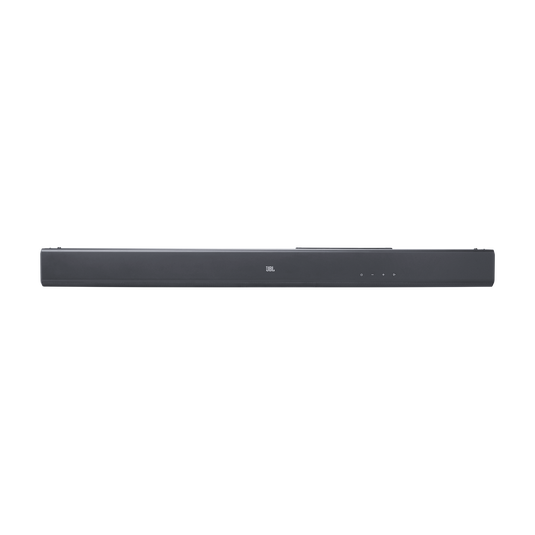

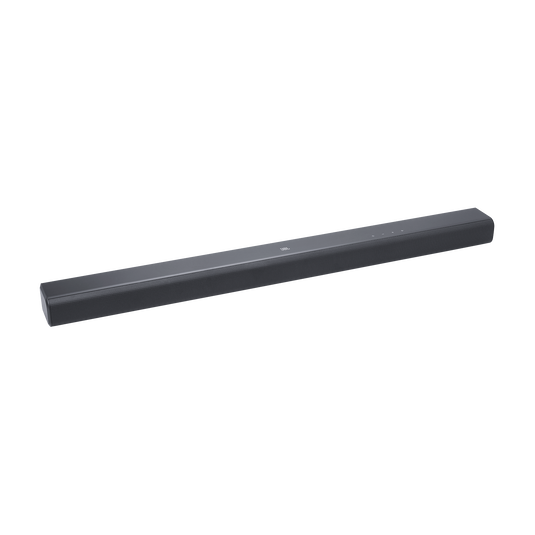

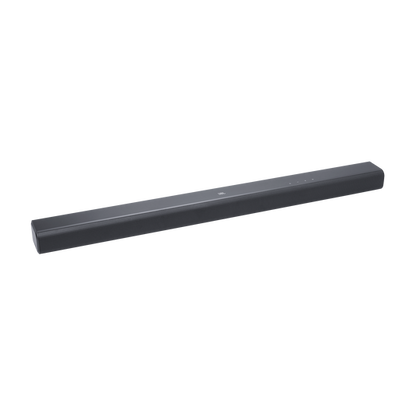

Soundbar transducer

3x (45 x 100) mm racetrack drivers + 3x 13mm tweeters

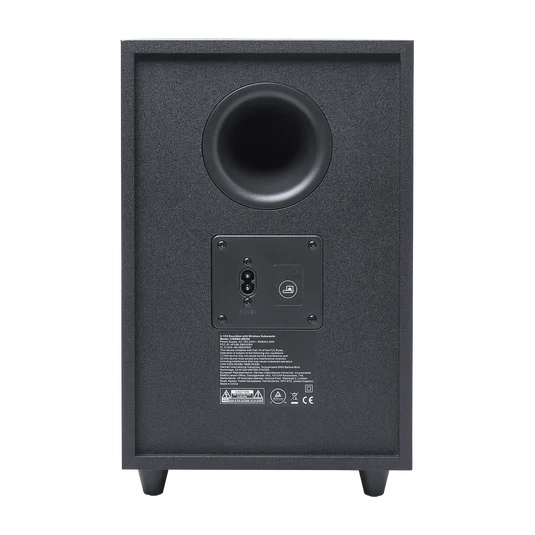

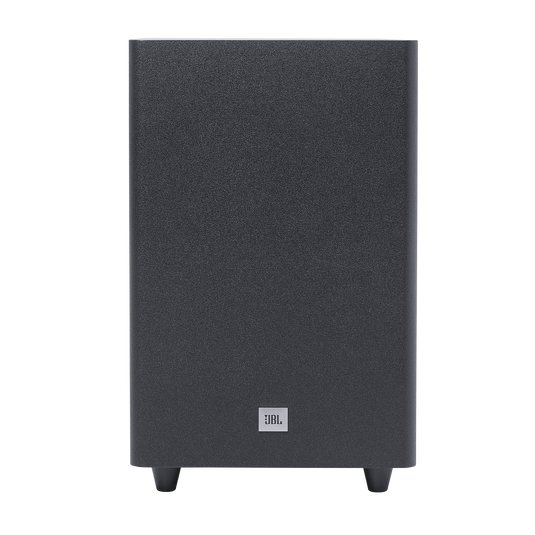

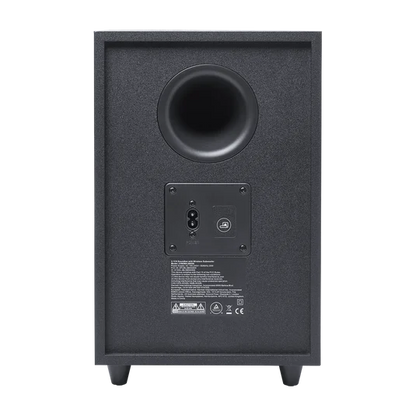

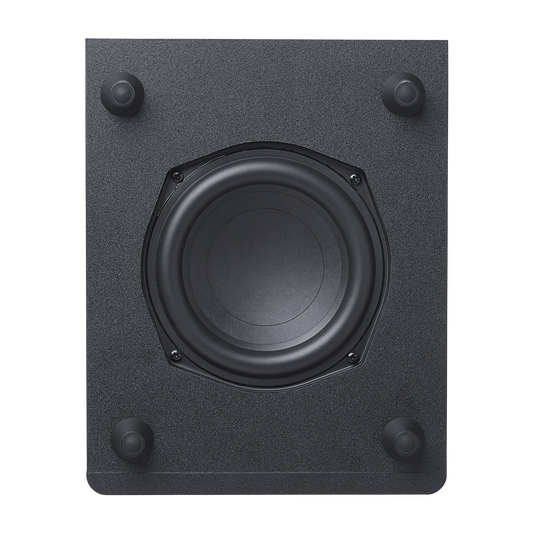

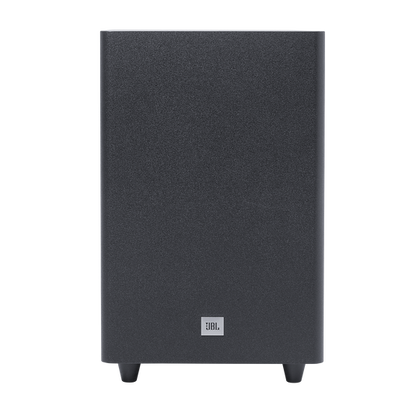

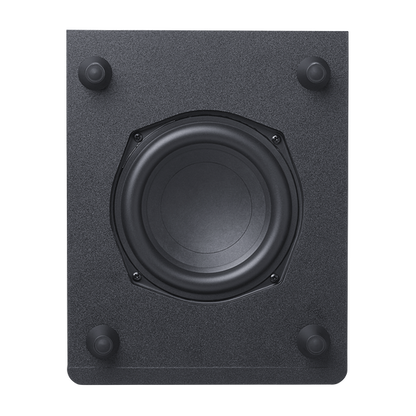

Subwoofer transducer

6.5” (165 mm), wireless subwoofer

Standby power

< 0.5 W

Operating temperature

0°C - 45 °C

Audio Specifications

Frequency response

40Hz-20kHz (-10dB)

Audio inputs

1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D)

950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’

Subwoofer dimensions (W x H x D)

200 x 404 x 250 mm / 7.9" x 15.9" x 9.9"

Soundbar weight

2.6kg / 5.7 lbs

Subwoofer weight

5.7 kg / 12.6 lbs

Packaging dimensions (W x H x D)

1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"

Packaging Weight

10.4 kg / 22.9lbs

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file formats

mp3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

Bluetooth version

5.3

Bluetooth profile

A2DP 1.3, AVRCP 1.6

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth Max. transmitting power

<10 dBm (EIRP)

Bluetooth modulation

GFSK, π/4 DQPSK, 8DPSK

2.4G wireless transmitter frequency range

2402-2481 MHz

2.4G wireless transmitter power

＜10dBm (EIRP）

2.4G wireless modulation

GFSK

Video Specifications

HDMI video input

1

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

Soundbar

Wireless subwoofer

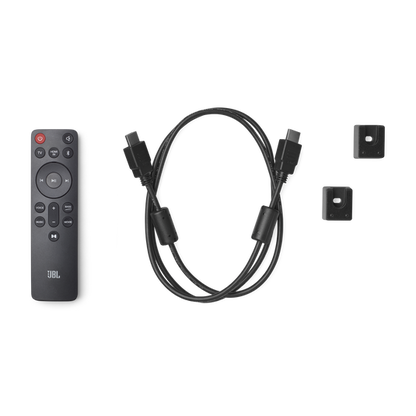

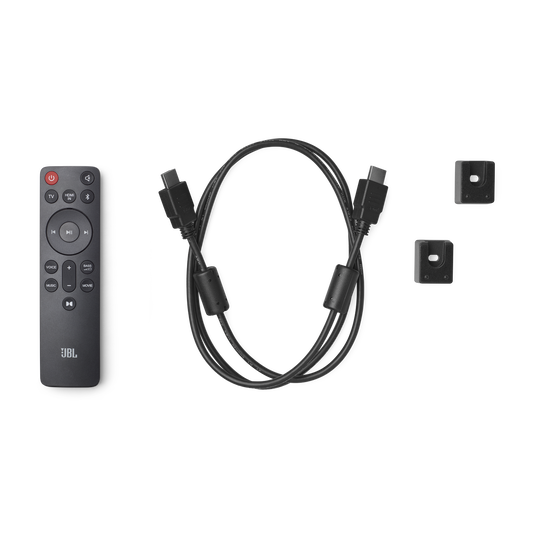

Remote control with batteries

Power cords (up to 8pcs depending on region SKUs)

HDMI cable

Wall-mount bracket kit with screws

Quick start guide

Warranty card

Safety sheet
