True Dolby Atmos® Surround Sound

Immerse yourself in theater-quality 3D sound. With two up-firing drivers, the JBL Bar 800 delivers true Dolby Atmos® 3D surround sound.

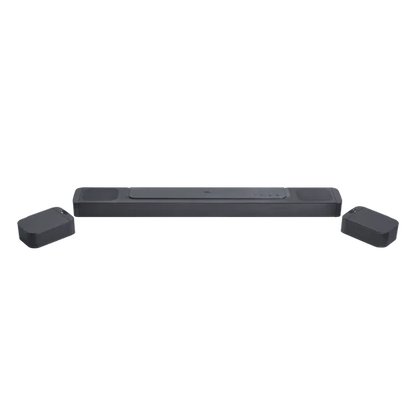

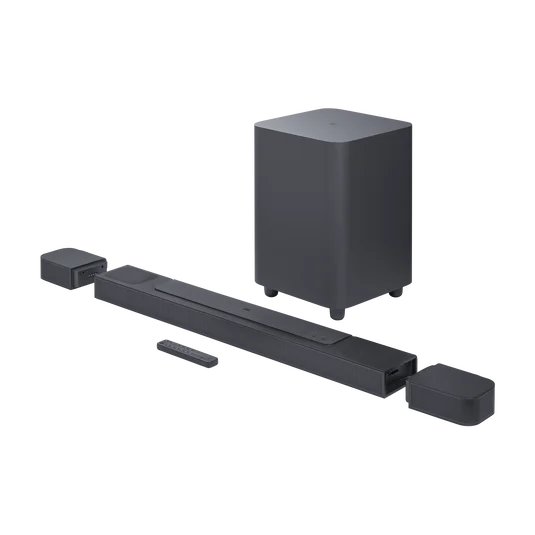

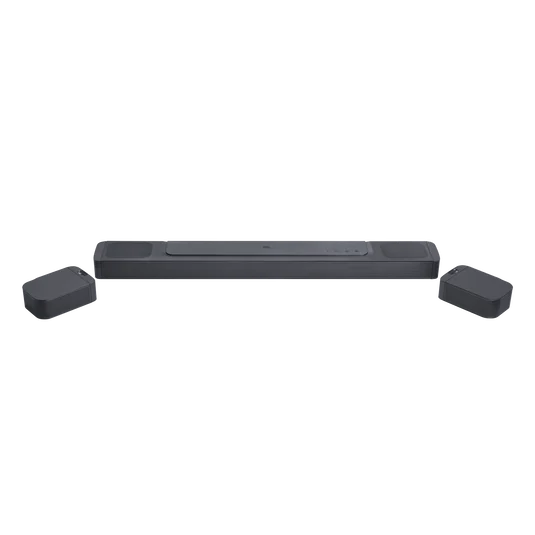

Real surround sound with detachable surround speakers

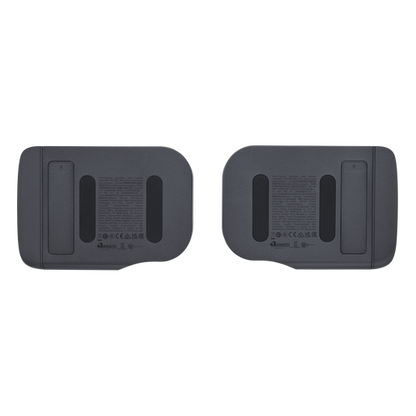

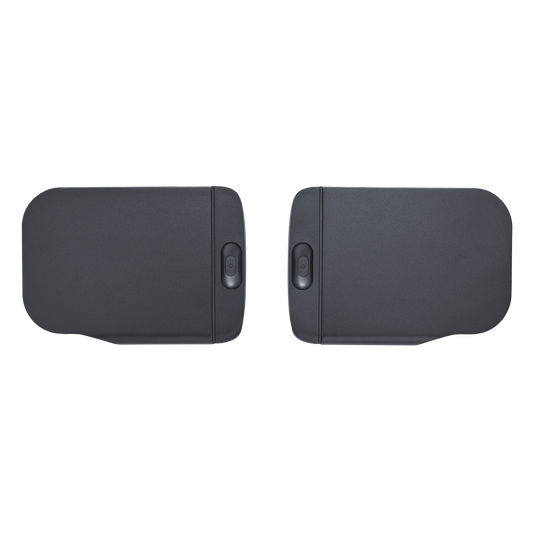

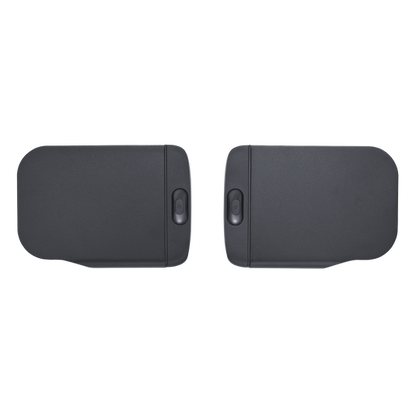

Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

General Specifications

Power supply

100 - 240V AC, ~ 50/60Hz

Networked standby power

< 2.0W

Operating temperature

0°C - 45°C

Audio Specifications

Total speaker power output (Max @THD 1%)

720W

Soundbar output power (Max @THD 1%)

340W

Surround speaker output power (Max @THD 1%)

2x 40W

Subwoofer output power (Max. @THD 1%)

300 W

Soundbar transducer

3x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers

Surround speaker transducer

1x (46x90)mm racetrack driver

Subwoofer transducer

10” (260mm)

Frequency response

35Hz - 20kHz (-6dB)

Audio inputs

1 Optical, Bluetooth, Chromecast Built-in, AirPlay and Alexa MRM, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D)

1174 x 56 x 120 mm / 46.2" x 2.2" x 4.7"

Main soundbar dimensions (W x H x D)

884 x 56 x 120 mm / 34.8" x 2.2" x 4.7"

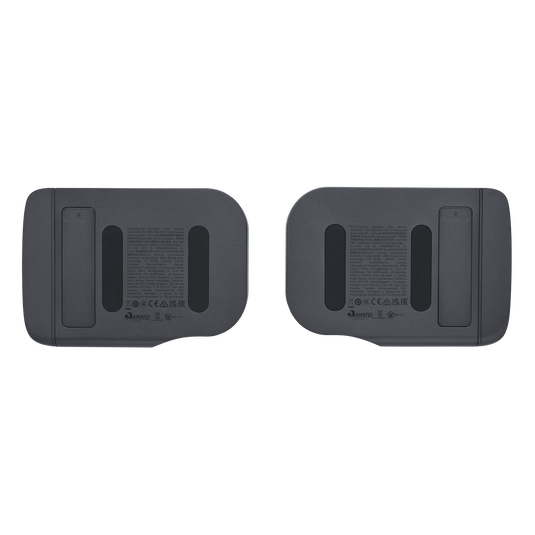

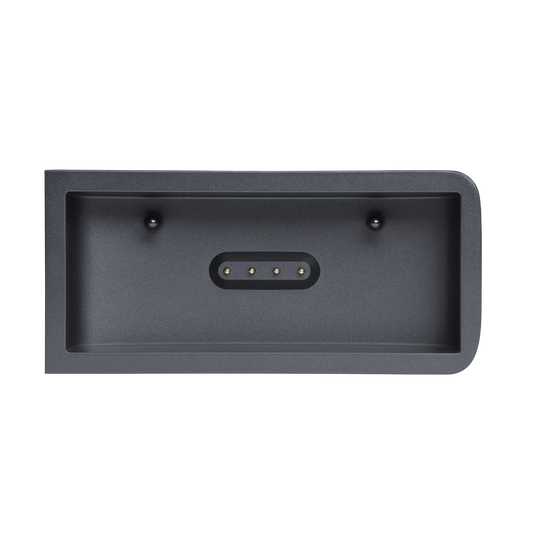

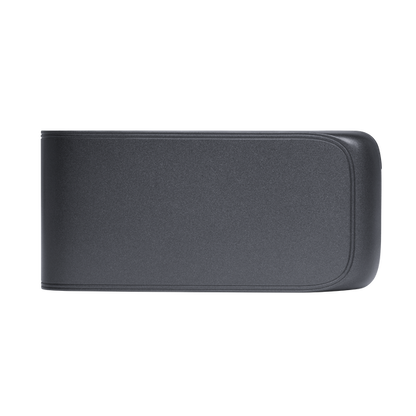

Detachable surround speaker dimensions (each) (W x H x D)

145 x 56 x 120 mm / 5.7" x 2.2" x 4.7"

Subwoofer dimensions (W x H x D)

305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight

3.4 kg / 7.4 lbs

Detachable surround speaker weight (each)

1.3 kg / 2.8 lbs

Subwoofer weight

10 kg / 22 lbs

Packaging dimensions (W x H x D)

1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"

Packaging Weight

18.9 kg / 41.6 lbs

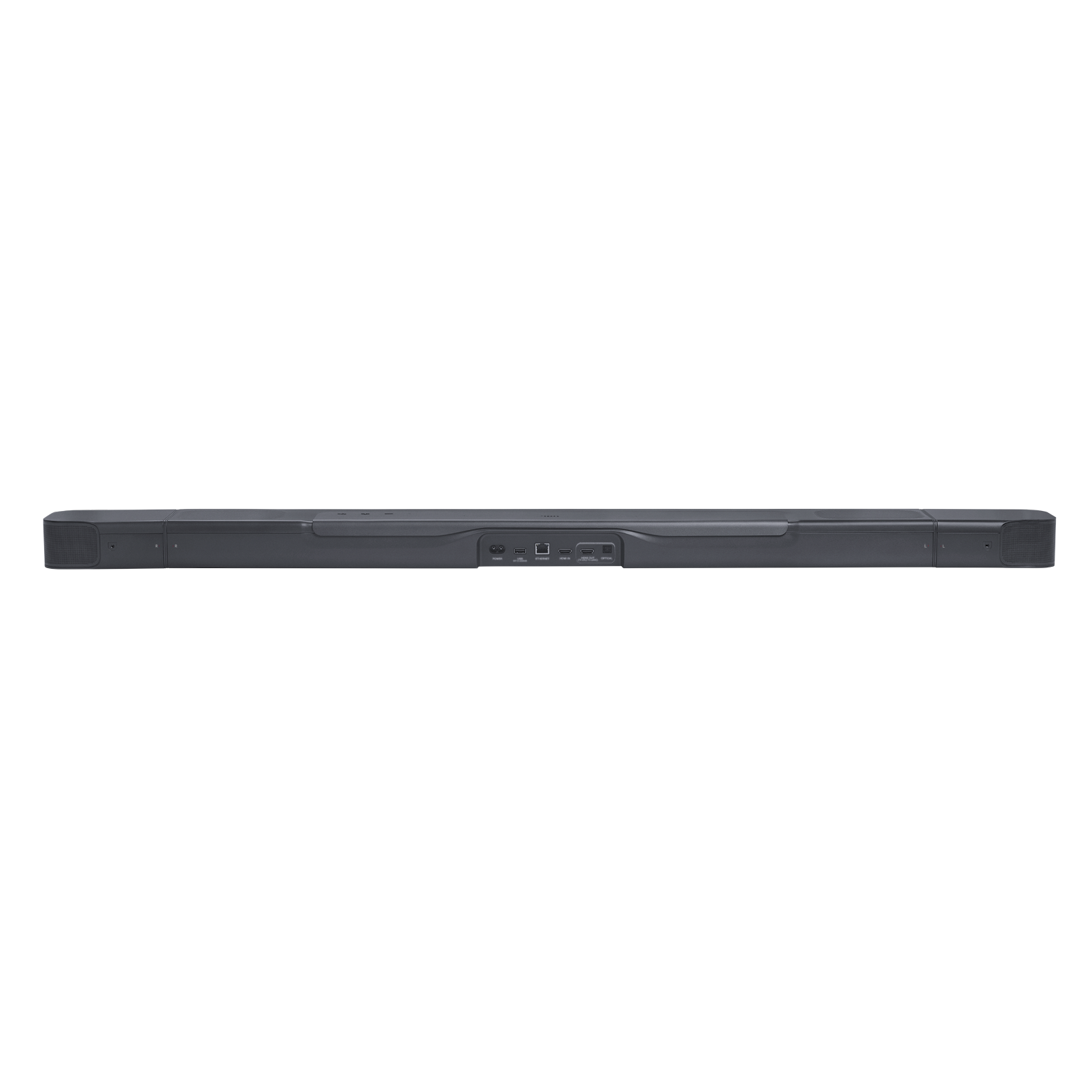

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file format

MP3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

80 - 320 kpbs

Bluetooth version

5.0

Bluetooth profile

A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range

2400MHz – 2483.5MHz

Bluetooth transmitter power

<15dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power

< 20dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power

5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range

2406 - 2474MH

2.4G wireless transmitter power

＜10dBm (EIRP）

Battery

Lithium battery

3.635V, 3283mAh

Country of Origin

Country of Origin: China

Video Specifications

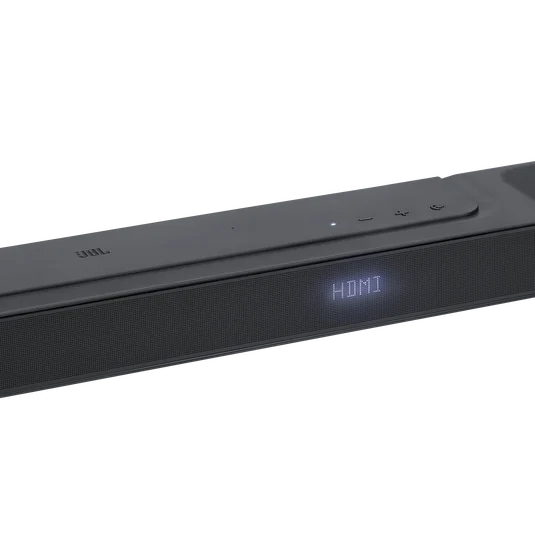

HDMI video input

1

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10, Dolby Vision

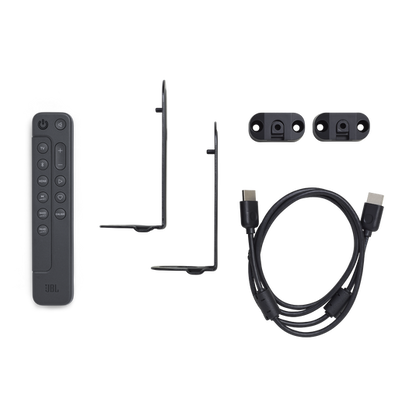

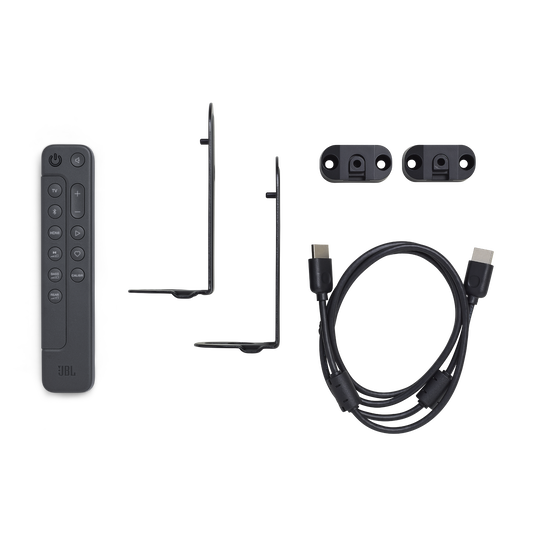

What's in The Box?
