General Specifications

Sound system

11.1.4 channel

Power supply

100 - 240V AC, ~ 50/60Hz

Networked standby power

< 2.0W

Operating temperature

0°C - 45°C

Audio Specifications

Total speaker power output (Max @THD 1%)

1170W

Soundbar output power (Max @THD 1%)

650W

Surround speaker output power (Max @THD 1%)

2x 110W

Subwoofer output power (Max. @THD 1%)

300 W

Soundbar transducer

6x (46x90)mm racetrack drivers, 5x 0.75" (20mm) tweeters, 4x 2.75" (70mm) up-firing full-range drivers

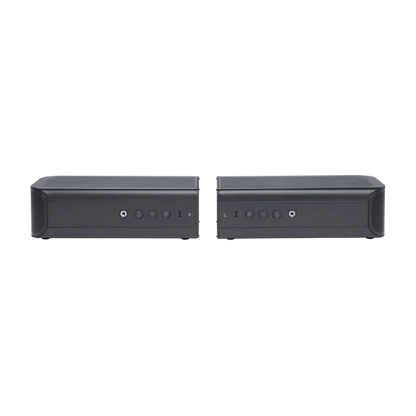

Surround speaker transducer

(46x90)mm racetrack driver, 0.75" (20mm) tweeter, 2.75" (70mm) up-firing full-range driver, 2x (48x69)mm rounded rectangle Passive Radiators

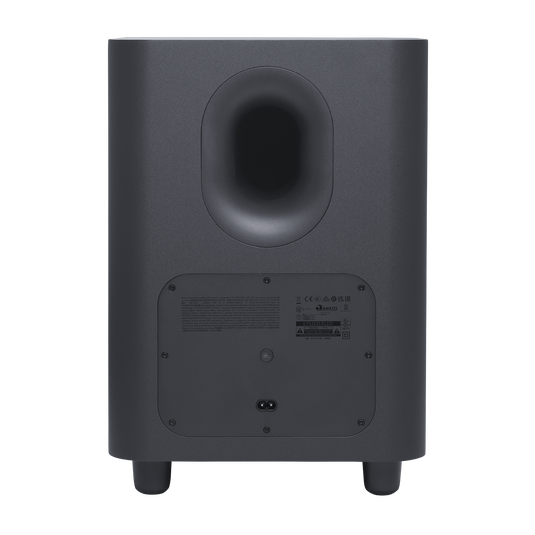

Subwoofer transducer

10” (260mm)

Frequency response

33Hz - 20kHz (-6dB)

Audio inputs

1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D)

1376 x 60 x 139 mm / 54.2" x 2.4" x 5.5"

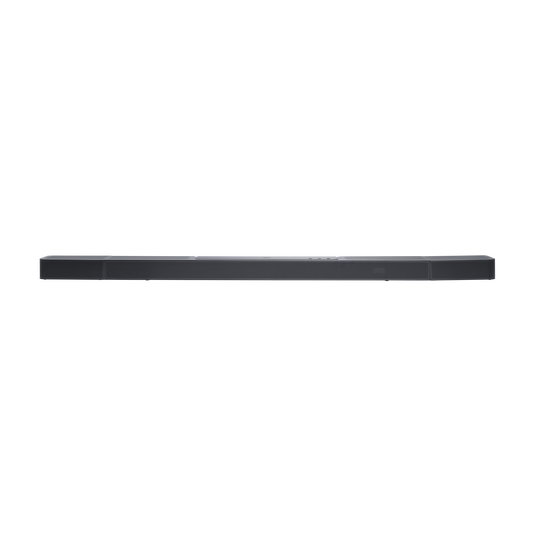

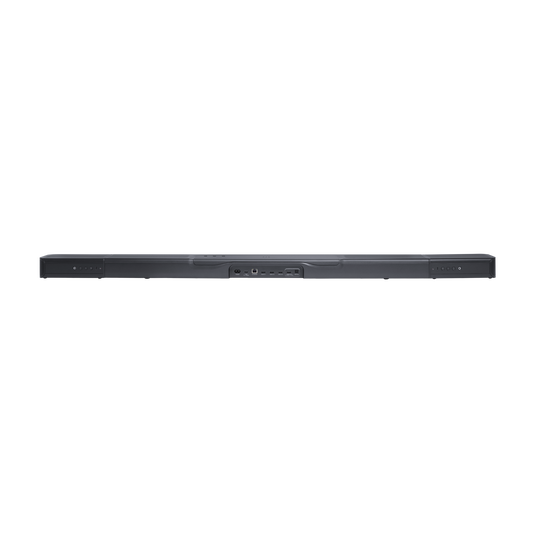

Main soundbar dimensions (W x H x D)

1000 x 60 x 139 mm / 39.4" x 2.4" x 5.5"

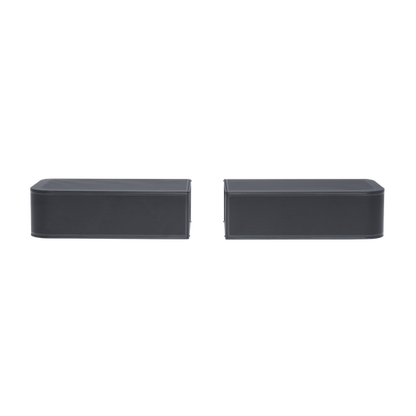

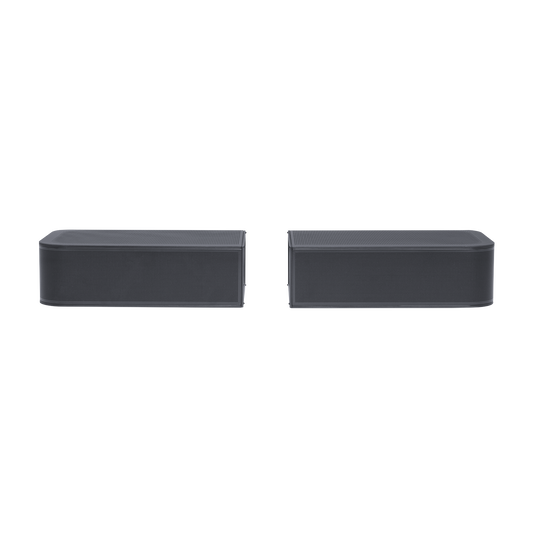

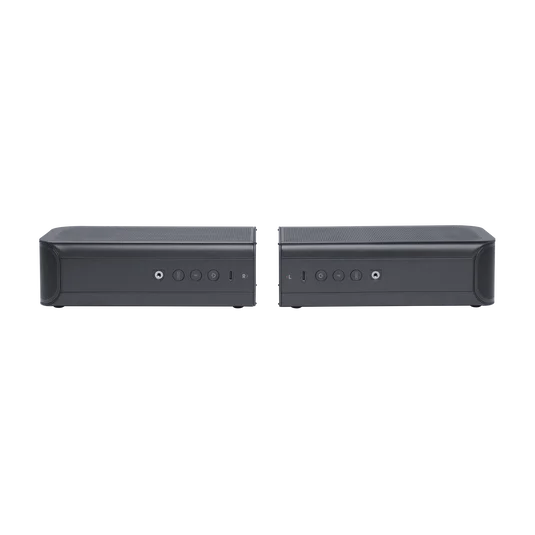

Detachable surround speaker dimensions (each) (W x H x D)

202 x 60 x 139 mm / 8" x 2.4" x 5.5"

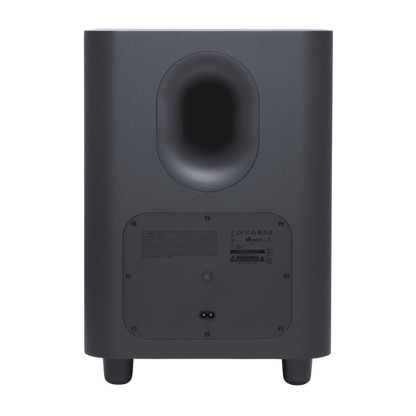

Subwoofer dimensions (W x H x D)

305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight

4.3kg / 9.5 lbs

Detachable surround speaker weight (each)

1.25 kg / 2.75 lbs

Subwoofer weight

10 kg / 22 lbs

Packaging dimensions (W x H x D)

381 x 1107 x 477 mm/ 15" x 43.6" x 18.8""

Packaging Weight

21.45 kg / 47.2 lbs

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file format

MP3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

80 - 320 kpbs

Bluetooth version

Main bar - 5.0, Detachable surround speaker - 5.2

Bluetooth profile

Main bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6

Bluetooth transmitter frequency range

2400MHz – 2483.5MHz

Bluetooth transmitter power

<15dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power

< 20dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power

5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range

2406 - 2474MHz

2.4G wireless power

＜10dBm (EIRP）

Battery

Lithium battery

3.635V, 6600 mAh

Detachable surround speaker playtime

up to 12 Hours (may vary according to content type and volume level)

Country of Origin

Country of Origin: China

Video Specifications

HDMI video input

3

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10, Dolby Vision

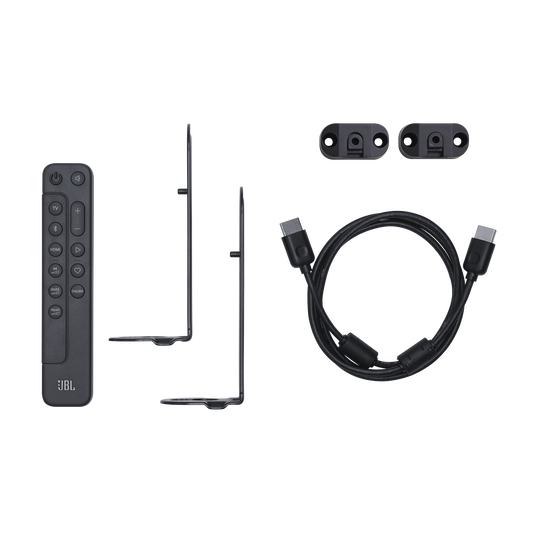

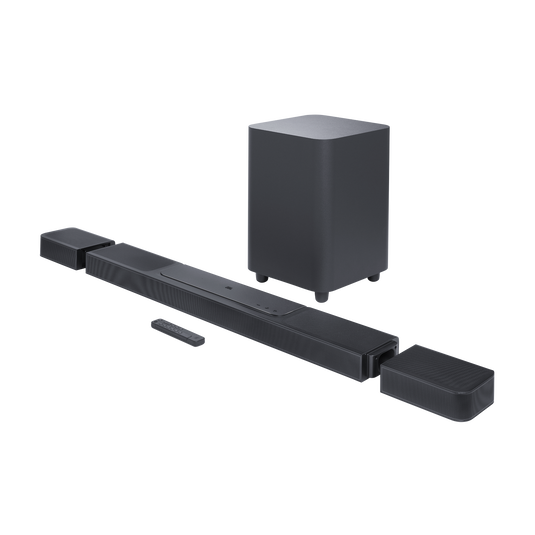

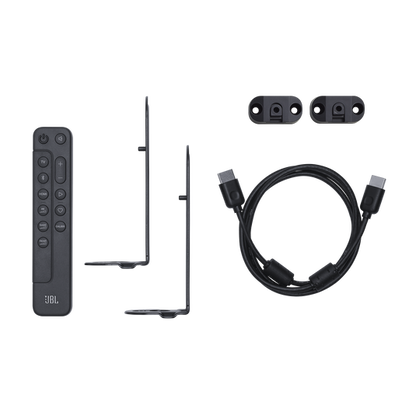

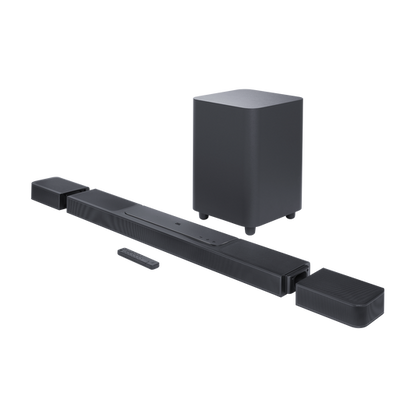

1x Main soundbar

2x Detachable wireless surround speakers

1x Wireless subwoofer

Remote control with 2 x batteries

Power cords (up to 8pcs depending on region SKUs)

1 x HDMI cable

2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws

2 x Side caps

Quick start guide

Safety instruction and Warranty card

Wall mount template
