DAC-Z10

Precision Engineering
Built for Authentic Sound

From digital to analog, the DAC-Z10 lets music unfold in its purest form
A DAC that reveals the authentic character and finest details of sound

Full Isolation Design

Eversolo FIA™

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analog domains to minimize interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment. Its decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analog preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

Internal Design

R2R

Linear Power Supplies

OCXO Temperature-Controlled Crystal Oscillator

DAC Module

Internal architecture | Craftsmanship

Eversolo Precision Core™

Fully Balanced R2R Network

FPGA Clock Reconstruction

Three Independent Power Supplies

With three independent toroidal transformers for left channel, right channel, and system power, the DAC-Z10 maintains ultra-low noise down to 42μV. This design minimizes interference, giving each channel its own clean, isolated voltage support for a stable and detailed sound.

Dual Independent Channels

Dual Decoding Modules

Built on a fully balanced architecture, the DAC-Z10 features dual independent AK4191 + AK4499 DAC modules for the left and right channels. Combined with AKM’s Velvet Sound™ technology, it strikes the perfect balance between precision and tonal richness.

Native Support

DSD 512

PCM 768kHz/32Bit

Dual Independent Channels

R2R Volume Control

The DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.

Fully Balanced Preamplifier

The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

Eversolo Precision Core™

Accurate Clock System

OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology
External 10 MHz & 25 MHz High-Precision Clock Support | FPGA Clock Reconstruction

OCXO Temperature-Controlled Crystal Oscillator

Phase-Locked Loop Technology

The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.

External Clock Support

Accurate timing is key to capturing every musical nuance. By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.

Input Specifications

10MHz

25MHz

Input Impedance

50Ω

75Ω

FPGA Redefined

The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC — you can truly hear the difference.

Ultra-Low Distortion & Wide Dynamic Range

Capturing Every Nuance of the Music

The DAC-Z10 lets every listener hear the true sound. With ultra-low distortion and wide dynamic range, every note is crystal clear.

Multi-Core USB Audio Processor

The DAC-Z10 features a multi-core USB audio processor, offering higher processing speed and bandwidth to ensure lossless transmission of high-resolution audio data.

USB Audio In

DSD512 Native

PCM 768KHz/32Bit

Optical / Coaxial

PCM 192KHz/24Bit

DSD64 Dop

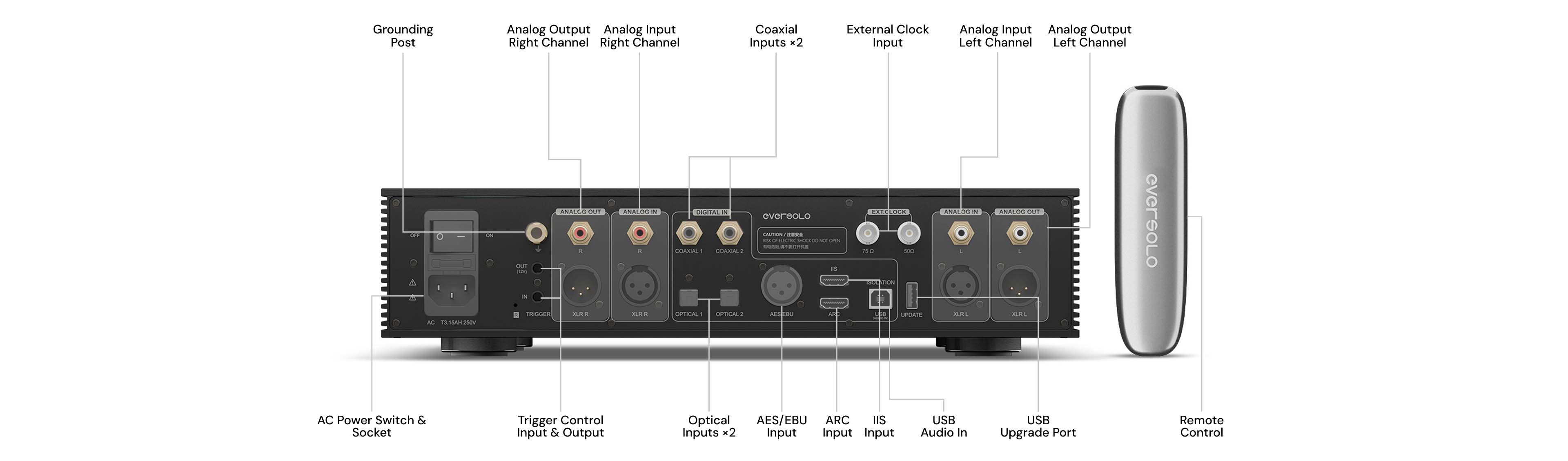

Grounding Post

The DAC-Z10’s grounding post channels noise away, eliminating even minor interference and preserving the purity of each note.

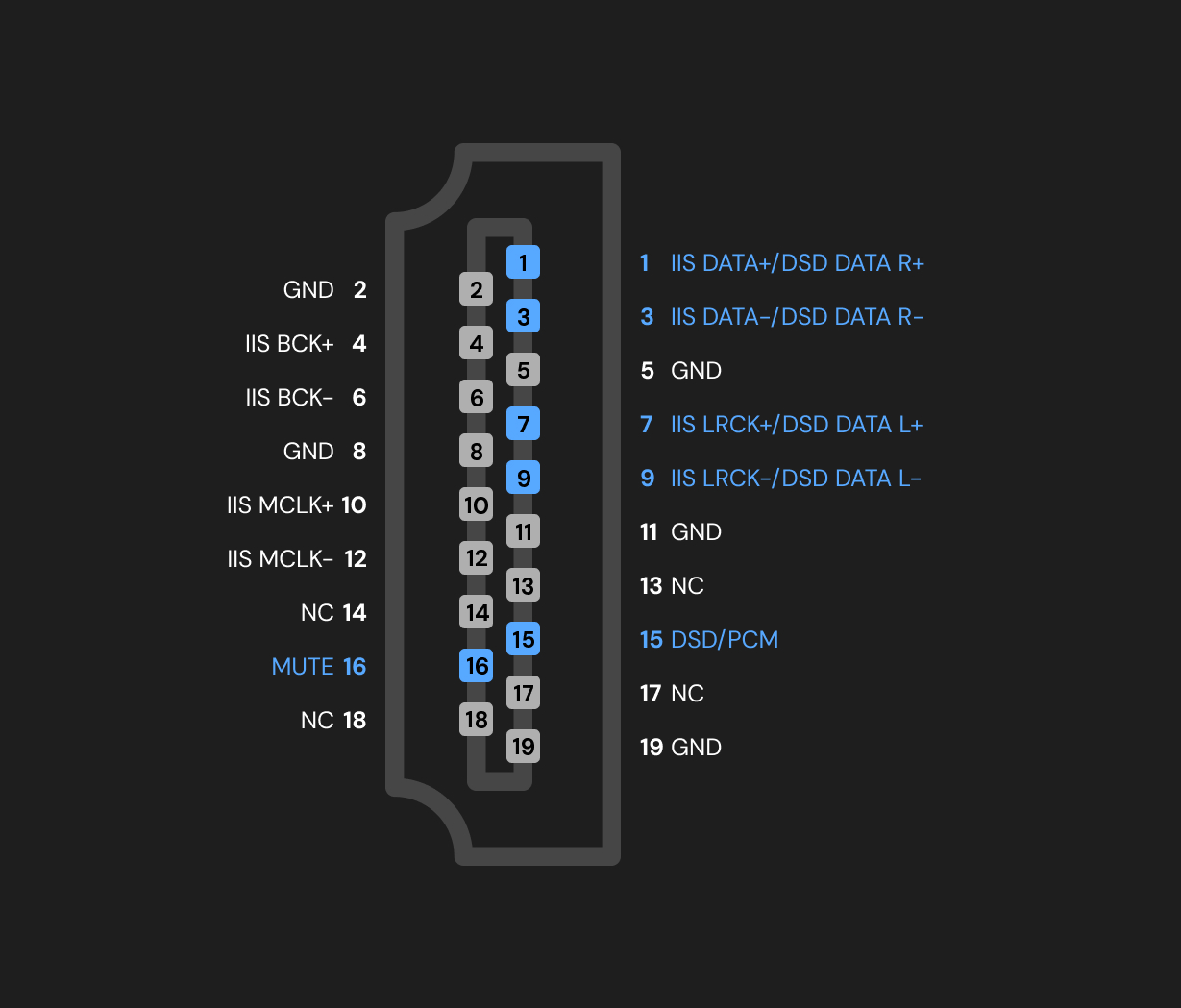

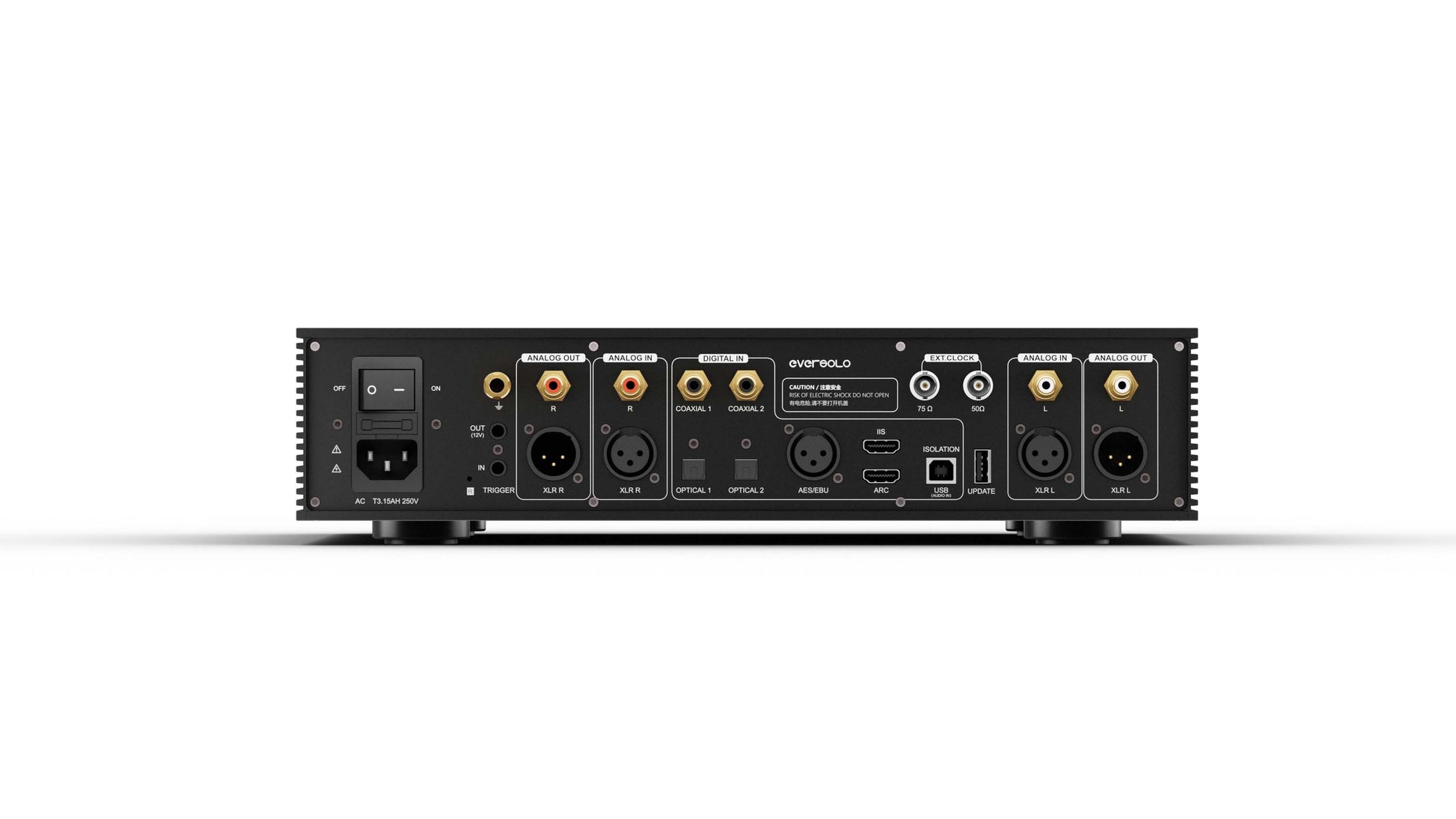

8-Mode IIS Digital Audio Input

Via IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native. Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.

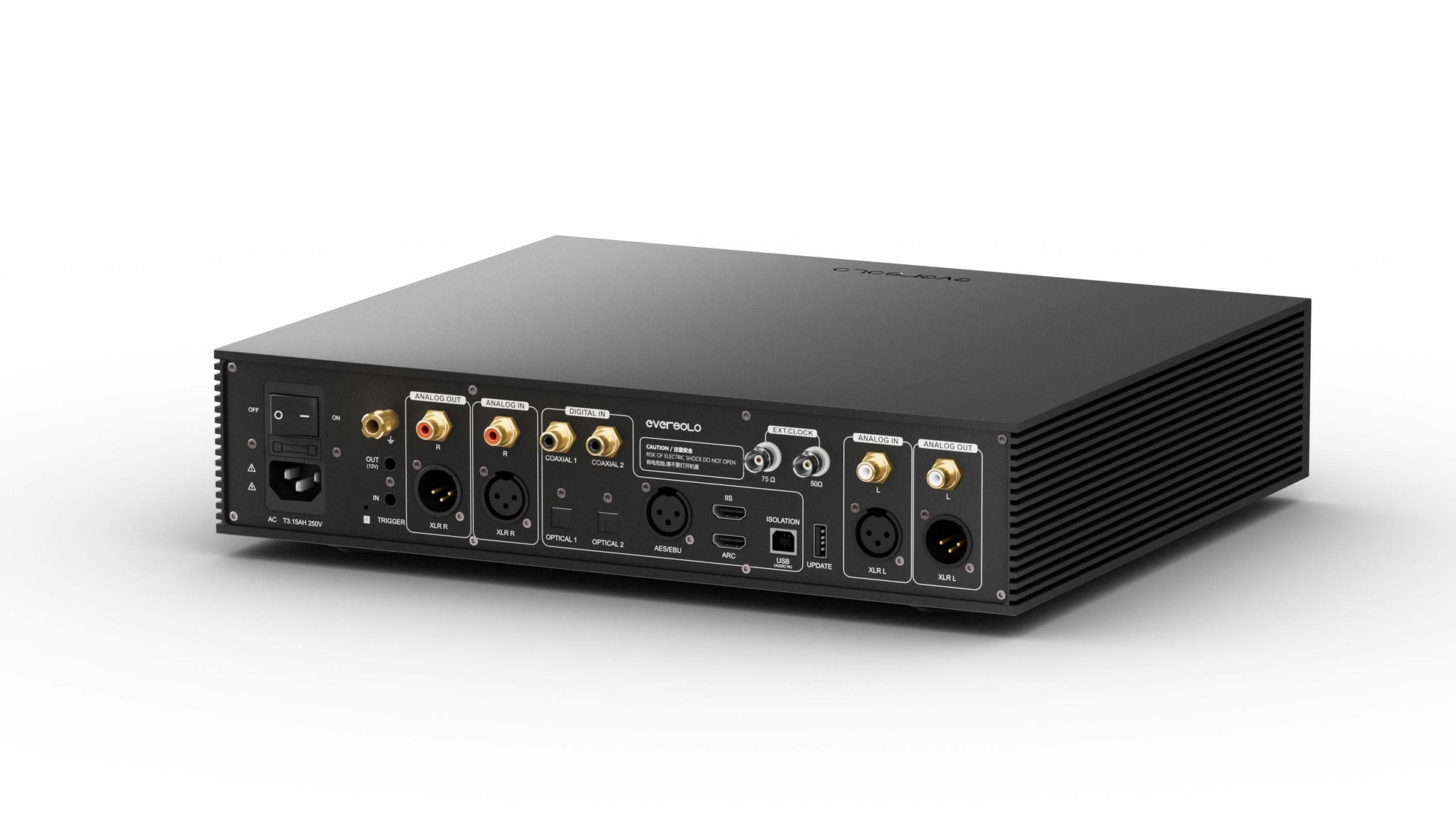

Dual Coaxial Inputs

The DAC-Z10 features dual isolated coaxial inputs, supporting up to 192kHz/24bit. This design effectively shields against external interference, preserving every detail with clarity and precision. Dual source input lets you switch devices effortlessly without any signal loss.

Isolated AES/EBU Input

To preserve signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input, fully separating electrical noise between front-end and back-end devices. This isn’t just an engineering solution—it’s our commitment to pure sound.

Dual Optical Inputs

The DAC-Z10 supports dual optical inputs, offering greater flexibility and connectivity for your audio system. With dual optical inputs, the DAC-Z10 can connect to two audio devices simultaneously, providing a more versatile listening experience.

Pure USB Audio Input

USB is often the most convenient choice for digital audio, but electrical noise and ground loops can subtly compromise its purity. The DAC-Z10 introduces an isolated USB Audio input, transmitting only the clean data while blocking all electrical interference.

TRIGGER IN & OUT for Linked Control

Manually turning each component on and off can be tedious and may cause current surges. The DAC-Z10’s TRIGGER interfaces act as a command channel, enabling seamless linked control across your system.

HDMI ARC Integration

The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theater system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.

6.35mm Headphone Amplifier Module

The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.

High Gain Output

1 W（16 Ω）

1 W（32 Ω）

0.16 W（300 Ω）

High Quality Bluetooth Module

The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.

The Balance of Simplicity and Strength

The DAC-Z10’s chassis is crafted from aviation-grade aluminum. Rigid yet lightweight, it blends precision engineering with refined texture. Sleek in design, yet full of presence.

Aviation-grade Aluminum Chassis

Electromagnetic Shielding

Smooth Control Experience

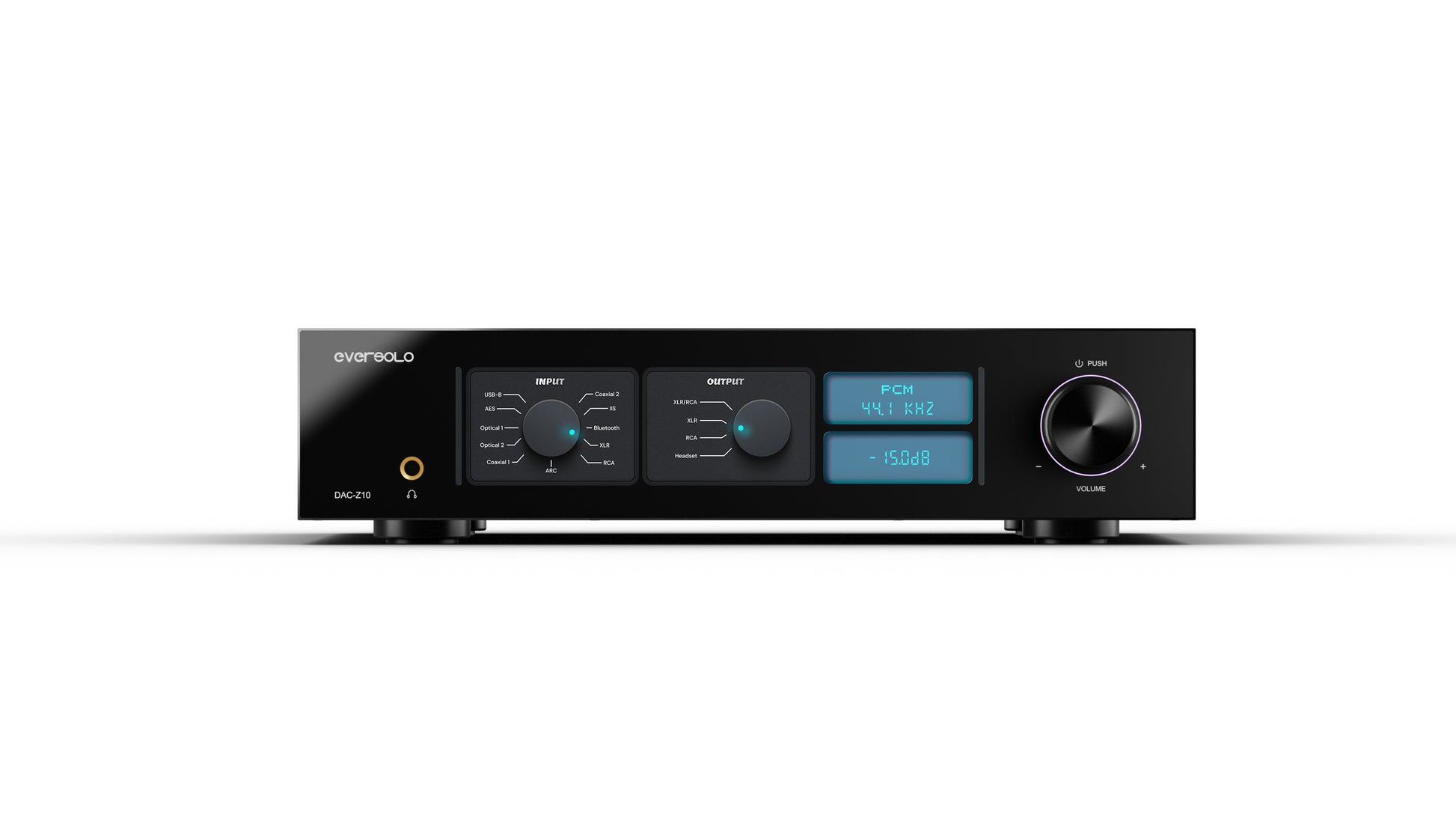

The DAC-Z10 features an 8.8-inch IPS touchscreen with a clear and intuitive interface. Switching inputs, adjusting volume, and checking format information are all at your fingertips.

Volume Control Knob

Multiple Exclusive Colors

To let every user tailor the DAC-Z10 to their personal taste and space aesthetics, we offer multiple knob colors.

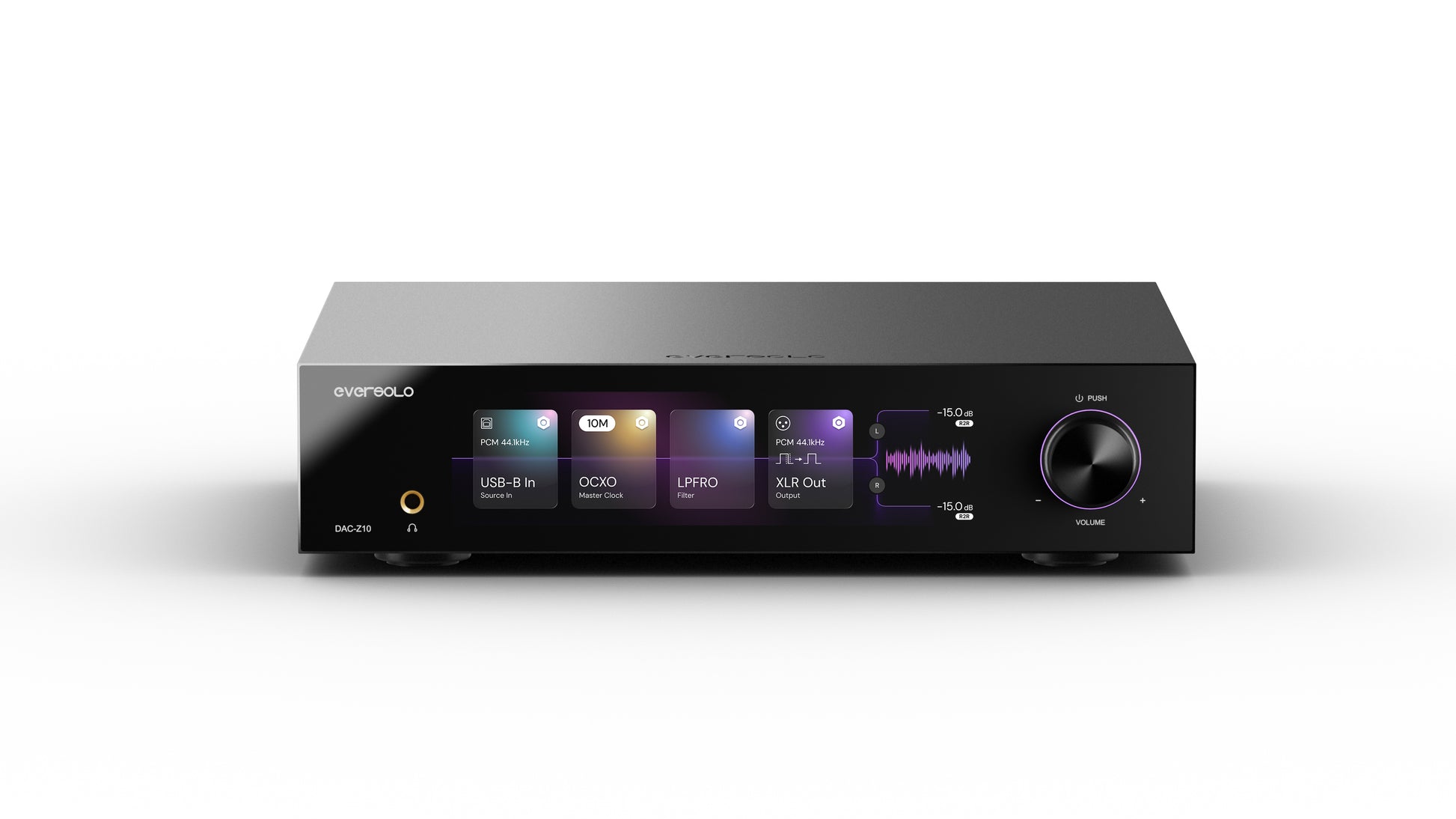

Routing Information Interface

Intuitive Signal Path Display

On this interface, the path of sound is illuminated. Input sources, master clock, filter characteristics, XLR/RCA outputs, and the heartbeat of the R2R left/right channel volume control—all unfold clearly, revealing the full story of your music.

Sonic & Visual Enjoyment

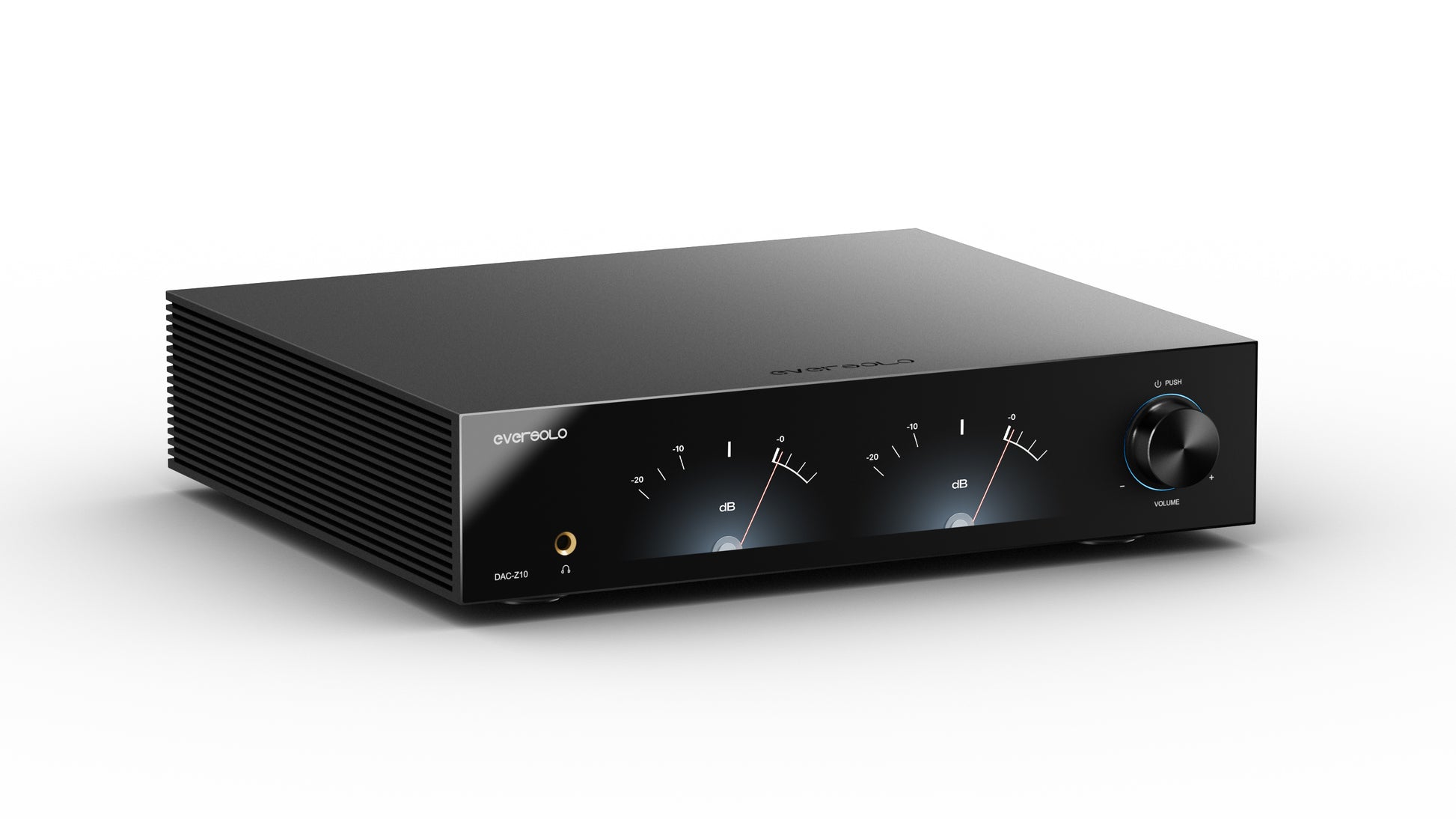

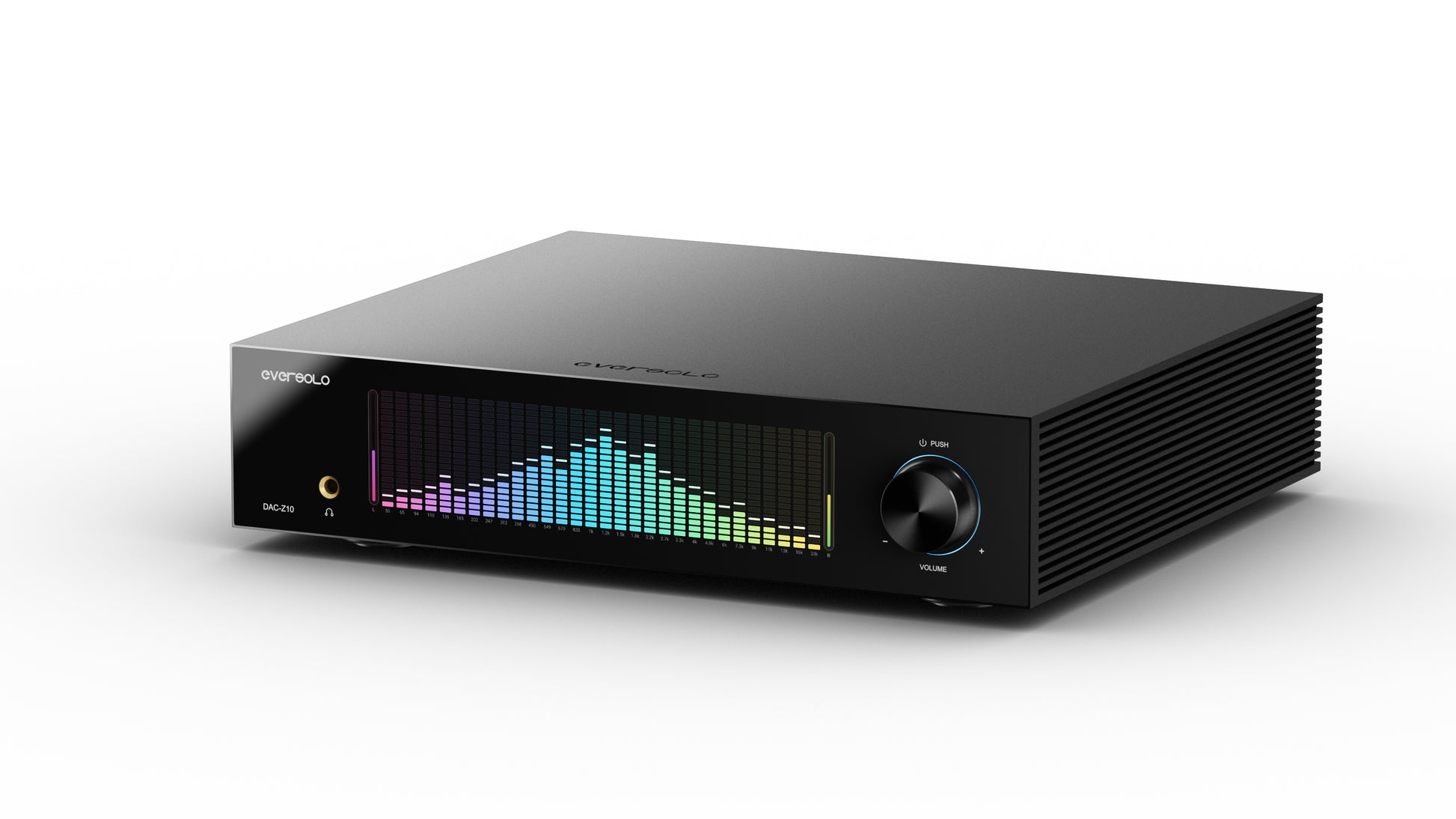

The DAC-Z10 offers a variety of vintage VU meters and dynamic spectrum displays, allowing you to enjoy the visual beauty of sound while listening to music. With the DAC-Z10, every performance comes alive.

Ideal Soundstage

Left/Right Balance Gain

The DAC-Z10 offers up to 15dB of left/right balance gain adjustment, allowing precise tuning of each channel according to your personal listening preference. With the DAC-Z10, every note reaches your ears accurately.

Filter Characteristics

Customize Your Sound

The DAC-Z10 offers 6 DAC filter characteristics, letting you switch freely to suit different musical atmospheres. With its versatile filter curves, the DAC-Z10 shapes the sound to match your personal listening taste.

Port polarity indication when set to positive

Port polarity indication when set to negative

XLR Polarity Modes

Accurate Signal Transmission

To ensure faithful sound reproduction, the DAC-Z10 offers two XLR polarity modes, allowing precise adjustment according to different system requirements. This guarantees stable and accurate signal transmission.

Mobile Control

Music at Your Fingertips

The DAC-Z10 supports both mobile App control and touchscreen control. Manage your system remotely from your smartphone, or interact directly via the large touchscreen. No matter how you choose, your music is always within reach.

Specification	Details
Product Name	Eversolo DAC-Z10 – DAC & Pre-Amplifier
Brand	Eversolo
Device Type	High-Resolution Digital-to-Analog Converter with Preamplifier
DAC Architecture	Dual ESS Sabre High-Performance DAC Chips
Digital Inputs	USB-B, Optical (TOSLINK), Coaxial (S/PDIF)
Analog Inputs	RCA Line Input
Analog Outputs	Balanced XLR, Unbalanced RCA (Variable / Fixed)
Supported Audio Formats	PCM up to 32-bit / 768 kHz, DSD64 / DSD128 / DSD256
MQA Support	MQA Decoder & Renderer
Volume Control	High-Precision Digital Volume Control
Display	High-Resolution Colour Display
Controls	Front Panel Controls, IR Remote Control
Clock System	Ultra-Low Jitter Precision Clock
Power Supply	High-Quality Linear Power Supply
Chassis	CNC-Machined Aluminium Body
Finish	Black
Dimensions (W × H × D)	Approx. 320 × 90 × 240 mm
Weight	Approx. 4.5 kg
Ideal Use	High-End DAC & Preamp for Audiophile Stereo and Power Amplifier Systems
