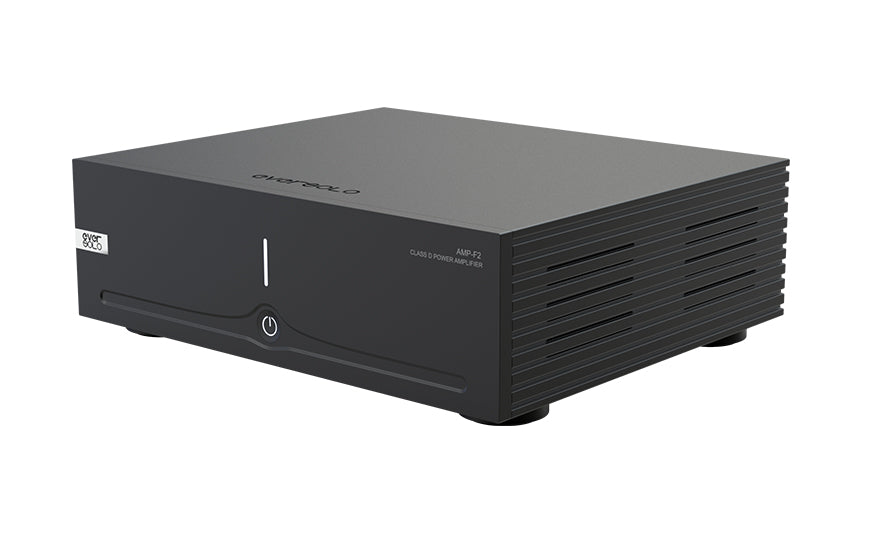

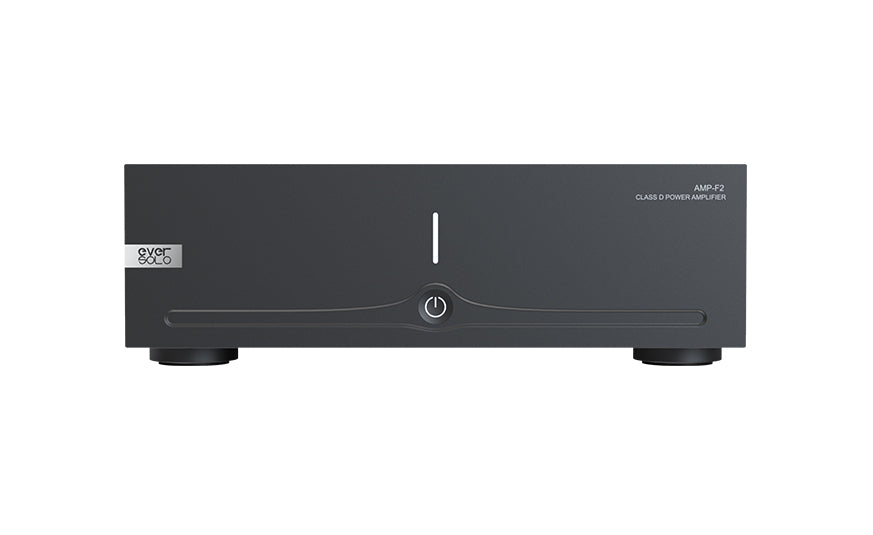

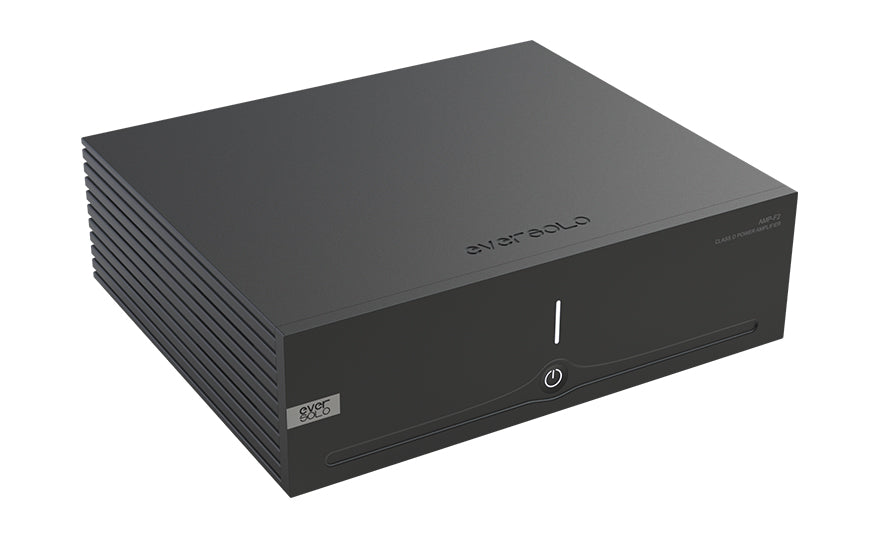

Eversolo AMP-F2 - 2 Channel Audio Power Amplifier

\nDynamic Power \n \nDetailed Presentation \n \nThe AMP-F2, developed in collaboration between the Starke Sound team and the Eversolo team, is based on the innovative NS600 module created by the Starke Sound team. It boasts a high sampling rate of up to 600KHz. Simultaneously, it significantly reduces noise and enhances dynamic performance through the newly designed SAPS audio-specific switch power supply. It employs an efficient Class D amplification structure, cou- pled with optimized circuits to maximize audio quality. The AMP-F2 is bridgeable, allowing flexible configura- tion for 2-channel or mono-channel setups when needed. \n \nVigorous Output \n \nBridged Support \n \nThe AMP-F2 is equipped with Starke Sound's NS600 amplifier module, each channel can output a con- stant 250W RMS (42) @ 1% THD+N. When bridged, it can support up to 450W RMS (29) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs. \n \nAccurate Sound \n \nPerfect Experience \n \nThe NS600 module employs PurePathTM Ultra-HD technology and advanced integrated feedback design, fea- turing high-speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio quality. \n \nPowerful Power Drive \n \nUtilizing a 600W high-efficiency, low-ripple, low-EMI switch power supply, it delivers consistent and powerful output, extremely low noise, enhancing the overall dy- namic performance of the system. \n \n

\n \n  \n

Specifications

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

\n Output Power	250W RMS at 4Ω（1%THD，per channel）145W RMS at 8Ω（1%THD，per channel）
\n Bridge Mode Output Power	450W RMS at 2Ω（Bridge Mode）
\n Channel quantity	2 Channels
\n Amplifier type	Class D
\n Frequency Response	10Hz-20kHz -1.2dB
\n Maximum output current	16.5A（per channel）/ 33A（Bridge）
\n Signal-To-Noise Ratio（SNR）	>110dB,"A" weighted 4Ω 260W

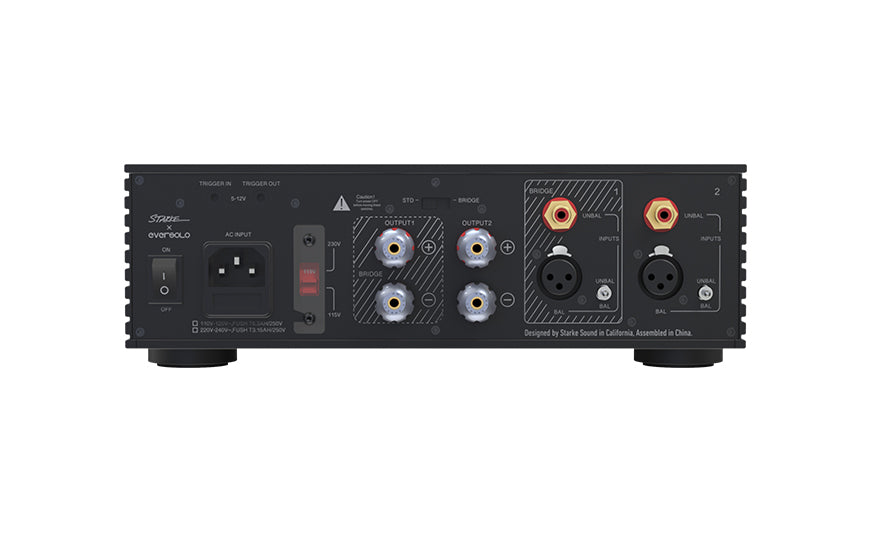

\n Input terminals	2-Channel RCA Input ；2-ChannelXLR Input
\n Input Impedance	RCA 10.5K ohm /XLR 21.7K ohm
\n Output terminals	2 pairs beryllium copper binding post，custom made by Starke Sound
\n Output Impedance	0.09 ohm 1kHz
\n Damping coefficient	100
\n Full size	W 270 mm x D 228 mm x H 90 mm (w/ foot))
\n Weight	3.65Kg
