Emotiva XPA DR-3 - Differential Reference? Three-Channel Power Amplifier

Name: Emotiva XPA DR-3 - Differential Reference? Three-Channel Power Amplifier
Brand: Cinesound
SKU: CINE715
Availability: InStock

Rs. 0.00

Sale Sold out

Emotiva XPA DR-3 - Differential Reference? Three-Channel Power Amplifier

Product Description

XPA-DR3 is a high-powered three-channel audiophile power amplifier that combines the exceptional accuracy and finesse of a true balanced differential design with the power.
Differential Referenceâ„¢ Performance And Sound Quality
Modern Efficient Circuit Design
Quality Construction
Flexible Signal Connections and Power Options

\n \n \n \n \n \n \n \n \n \n \n

IN THE BOX
Sales Package	Amplifier and User Documentation

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

General
Brand	Emotiva
Model	XPA-DR3
Color	black

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications
\n Circuit Topology	A fully modular, fully differential, fully balanced audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class Hâ„¢ power supply topology, and microprocessor-controlled fault protection
\n Audio Specifications	The XPA-DR3 features three Differential Referenceâ„¢ Amplifier Modules
\n Audio Specifications (Three Differential Reference Amplifier Modules)	\n Power Output (all three channels driven): \n 450 watts RMS, per channel, into 8 Ohms, at <0.1% THD. \n 600 watts RMS, per channel, into 4 Ohms, at <0.1% THD. \n \n Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / â€“ 0.1 dB). \n \n Broad Band Frequency Response: 20 Hz to 50 kHz +0/-2 dB. \n \n THD + noise: < 0.008%; at 100 watts RMS; 1 kHz; 8 Ohms. \n \n Signal to Noise Ratio (8 Ohm load): \n > 120 dB; ref FTC rated power; unbalanced input (A-weighted). \n > 96 dB; ref 1 watt; unbalanced input (A-weighted). \n \n Minimum Recommended Load Impedance (per channel): 4 Ohms \n (which equals one 4 Ohm load or two paralleled 8 Ohm loads). \n \n Damping Factor (8 Ohm load): > 500. \n \n Input Sensitivity (for rated power; 8 Ohm load): 2.0 V. \n \n Gain: 29 dB. \n \n Input Impedance: \n \n 33 kOhms (balanced). \n \n 23.5 kOhms (unbalanced).

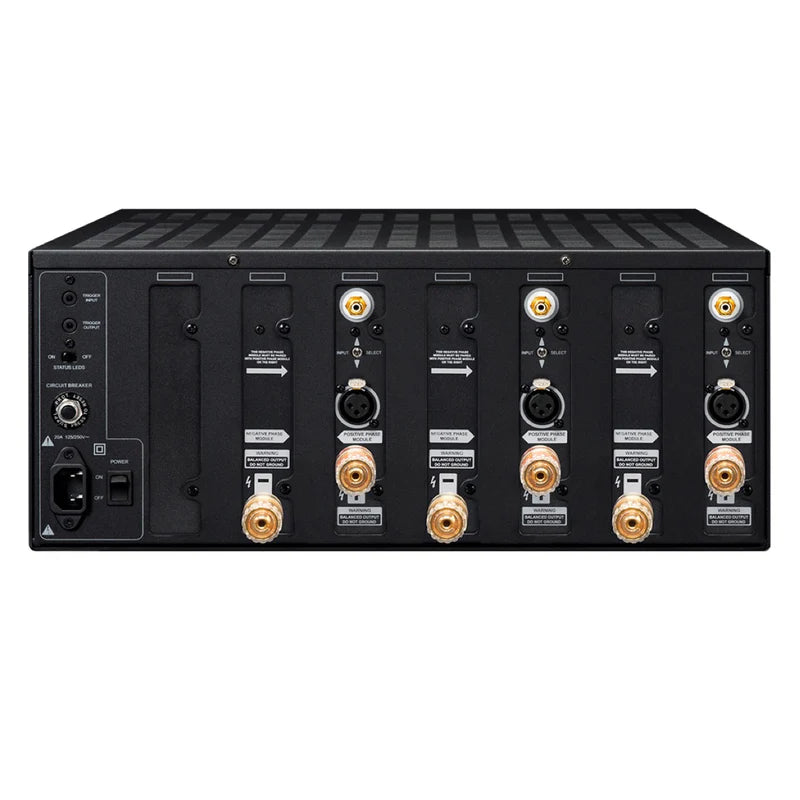

\n Input And Output Connections \n Input Connections	\n Unbalanced (RCA); balanced (XLR); one each, per channel, user selectable. \n \n Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts. \n \n Trigger: \n \n Trigger Input: 5 â€“ 12 V (AC or DC); <10 mA input current required. \n \n Trigger Output: 12 VDC; can drive any load up to 120 mA
\n Power Requirements	\n Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)
\n Front Panel Controls and Indicators	\n Standby push button (halo ring changes color to indicate Standby or On) \n \n Status LEDs: one per channel; blue \n \n Status LEDs change to red to indicate a fault condition
\n Rear Panel Controls	\n AC Power switch: rocker switch (switches AC main power). \n \n Status LEDs switch: disables front panel Status LEDs and dims Standby button halo. \n \n Input selector switches (one per channel): \n \n metal toggle switches; select between balanced and unbalanced inputs. \n Circuit Breaker: press button to reset circuit breaker.
\n Protection	The XPA-DR3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Dimension
Dimension	\n 17â€ wide x 8â€ high x 19â€ deep (unboxed; including feet) \n \n 17â€ wide x 7â€ high x 19â€ deep (unboxed; without feet) \n \n 24-1/2â€ wide x 12â€ high x 24-3/4â€ deep (boxed)
Weight	\n 49.5 lbs (unboxed) \n \n 54.5 lbs (boxed)
