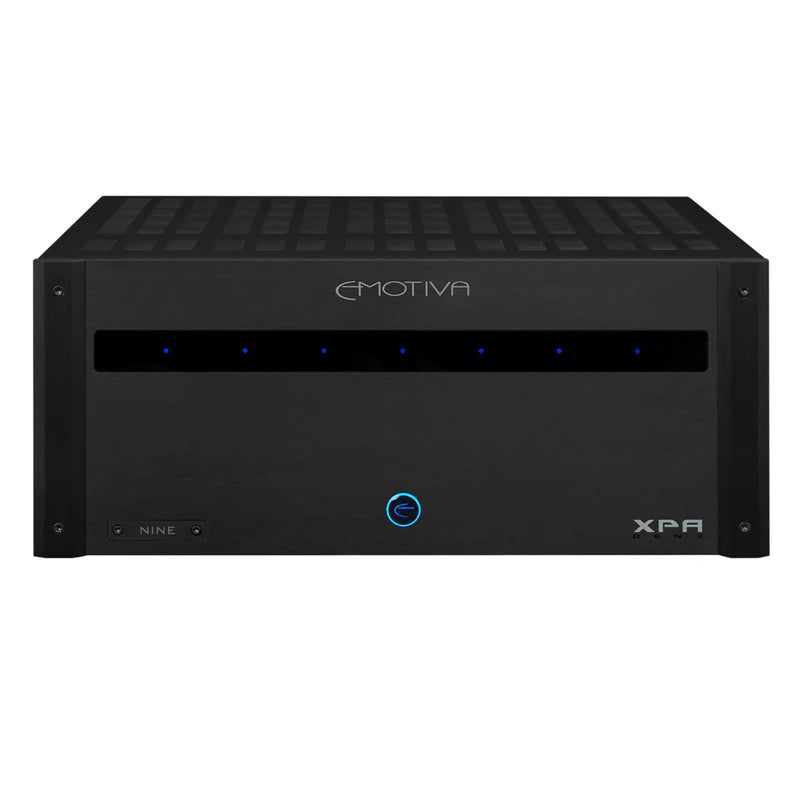

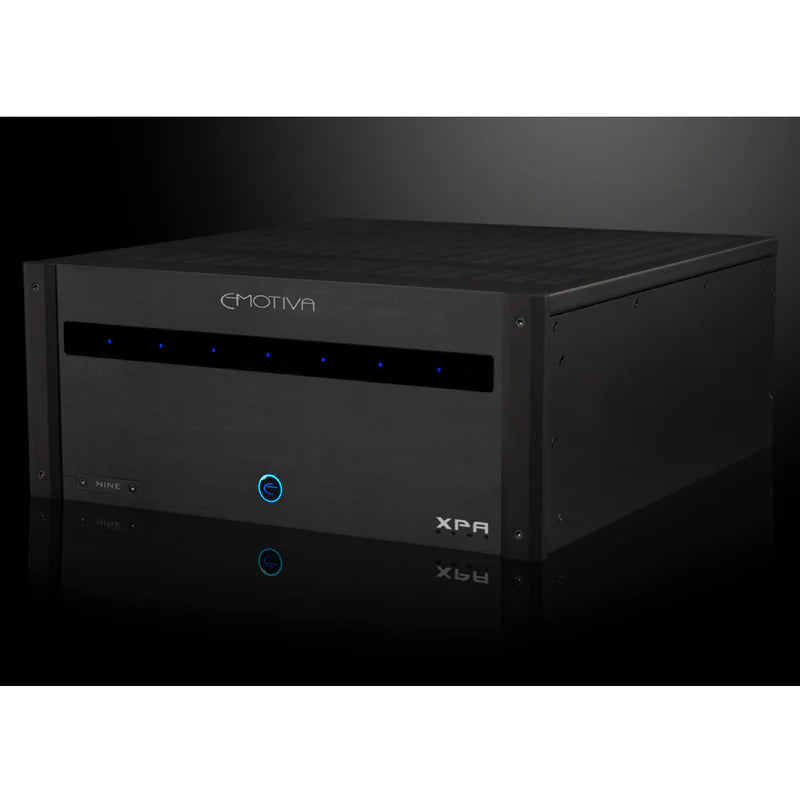

Emotiva XPA-9 Gen3 - 9 Channel Power Amplifier

Name: Emotiva XPA-9 Gen3 - 9 Channel Power Amplifier
Brand: Cinesound
SKU: CINE712
Availability: InStock

Rs. 0.00

Sale Sold out

Emotiva XPA-9 Gen3 - 9 Channel Power Amplifier

Product Description

The XPA-9 is a nine-channel audiophile quality power amplifier, and is perfect for powering all of your speakers in a 7.1.2 configuration or 5.1.4 configuration Dolby Atmos / DTS:X home theater system.
Modular design â€“ two to seven channels
Proven and reliable Class AB output stages
High current switch mode power supply
Lighter weight than the competition
Excellent audio quality
Low noise, low distortion, wideband amplifier design
Optimized Soft-Switch Class Hâ„¢ power supply topology.

\n \n \n \n \n \n \n \n \n \n \n

IN THE BOX
Sales Package	Amplifier and User Documentation

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

General
Brand	Emotiva
Model	XPA-9 Gen3
Color	black

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications

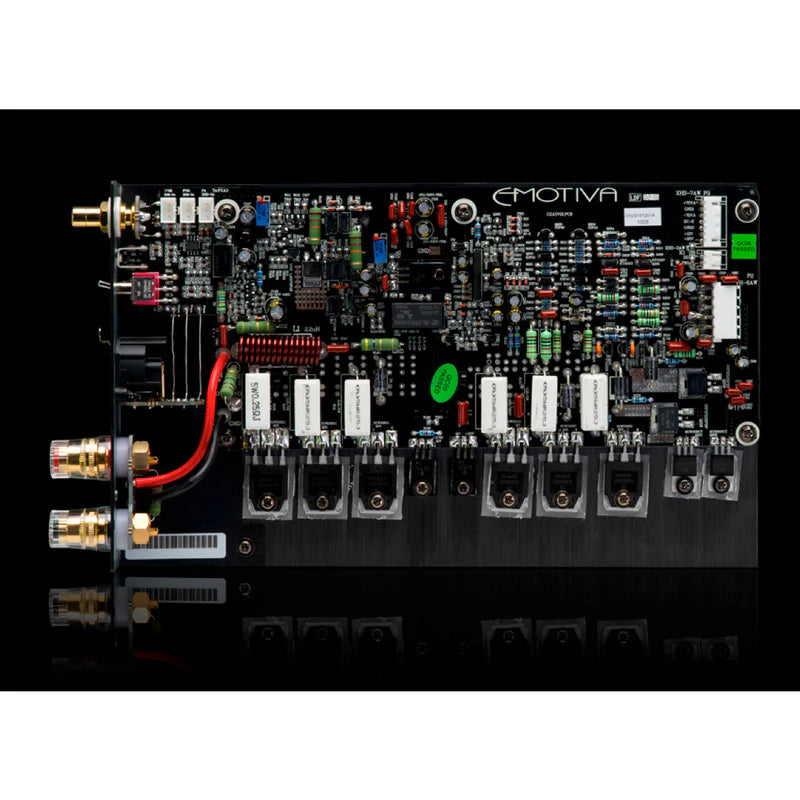

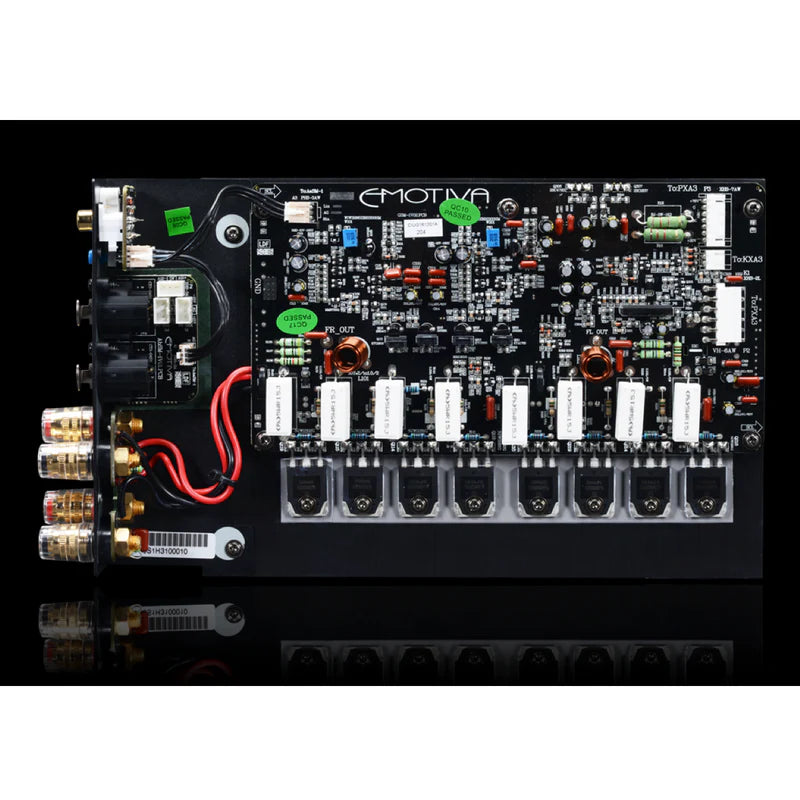

\n Circuit Topology	\n The XPA-9 Gen3 is a fully modular audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class Hâ„¢ power supply topology, and microprocessor-controlled fault protection. \n \n The XPA-9 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS).
\n Audio Specifications	The XPA-9 Gen3 features five of our High-Powered Single Channel Modules and two of our Stereo Modules
\n Audio Specifications (High-Powered Single Channel Modules)	\n Power Output: \n 300 watts RMS/channel; 20 Hz â€“ 20 kHz; THD<0.1%; 8 Ohms; one channel driven. \n 550 watts RMS/channel; 20 Hz â€“ 20 kHz; THD<0.2%; 4 Ohms; one channel driven. \n 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven. \n 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven. \n \n Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / â€“ 0.1 dB). \n \n Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB. \n \n THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms. \n \n Signal to Noise Ratio (8 Ohm load): \n > 115 dB; ref FTC rated power; unbalanced input (A-weighted). \n > 86 dB; ref 1 watt; unbalanced input (A-weighted). \n \n Minimum Recommended Load Impedance (per channel): 4 Ohms \n (which equals one 4 Ohm load or two paralleled 8 Ohm loads). \n \n Damping Factor (8 Ohm load): > 500. \n \n Input Sensitivity (for rated power; 8 Ohm load): 1.5 V. \n \n Gain: 29 dB. \n \n Input Impedance: \n \n 33 kOhms (balanced). \n \n 23.5 kOhms (unbalanced).
\n Audio Specifications (Stereo Modules)	\n Power Output: \n 65 watts RMS/channel; 20 Hz â€“ 20 kHz; THD<0.1%; 8 Ohms; one channel driven. \n 100 watts RMS/channel; 20 Hz â€“ 20 kHz; THD<0.2%; 4 Ohms; one channel driven. \n 65 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven. \n 100 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven. \n \n Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / â€“ 0.1 dB). \n \n Broad Band Frequency Response: 50 Hz to 80 kHz +0/-1.5 dB. \n \n THD + noise: < 0.02%; at 60 watts RMS; 1 kHz; 8 Ohms. \n \n Signal to Noise Ratio (8 Ohm load): \n > 105 dB; ref FTC rated power; unbalanced input (A-weighted). \n > 85 dB; ref 1 watt; unbalanced input (A-weighted). \n \n Minimum Recommended Load Impedance (per channel): 4 Ohms \n (which equals one 4 Ohm load or two paralleled 8 Ohm loads). \n \n Damping Factor (8 Ohm load): > 500. \n \n Input Sensitivity (for rated power; 8 Ohm load): 0.8 V (800 mV). \n \n Gain: 29 dB. \n \n Input Impedance: \n \n 33 kOhms (balanced). \n \n 23.5 kOhms (unbalanced).

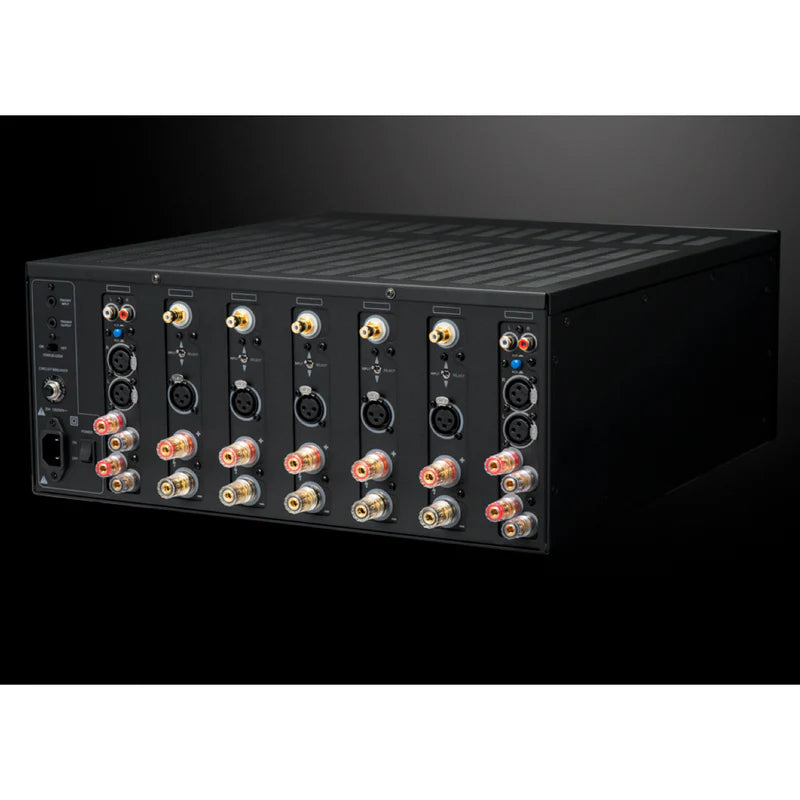

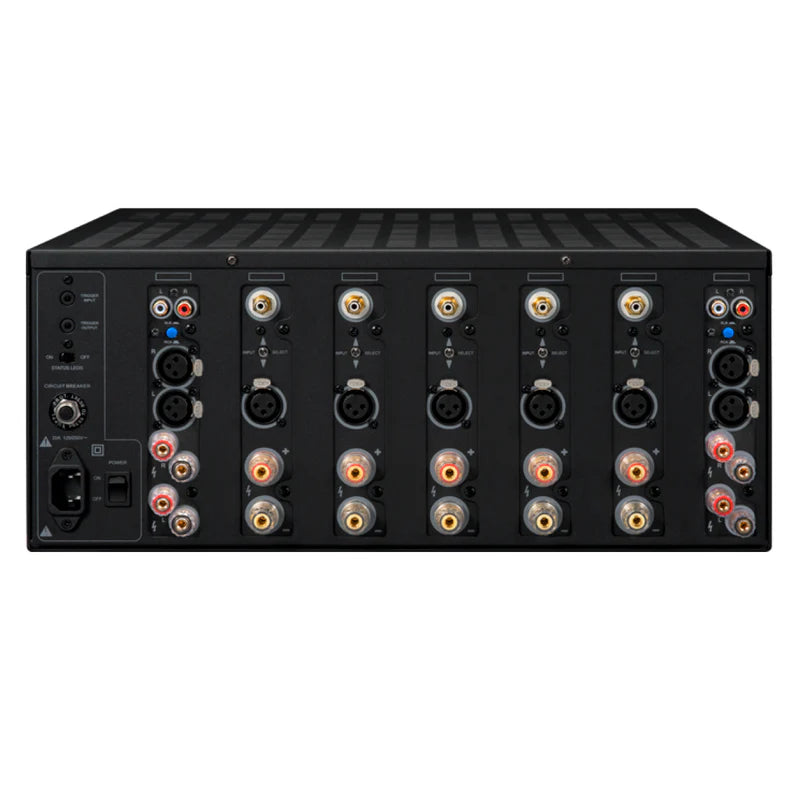

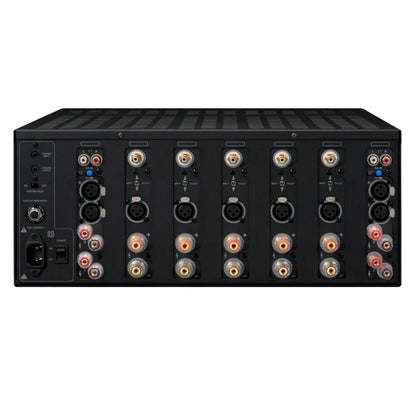

\n Input And Output Connections \n Input Connections (High-Powered Single Channel Modules)	\n Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable. \n Input Connections (Stereo Modules): \n 2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable. \n Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts. \n Trigger: \n Trigger Input: 5 â€“ 12 V (AC or DC); <10 mA input current required. \n Trigger Output: 12 VDC; can drive any load up to 120 mA.
Power Requirements	Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)
\n Rear Panel Controls	\n AC Power switch: rocker switch (switches AC main power). \n Status LEDs switch: disables front panel Status LEDs and dims Standby button halo. \n Input selector switches (one per channel): \n metal toggle switches; select between balanced and unbalanced inputs. \n Circuit Breaker: press button to reset circuit breaker

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Dimension
Dimension	\n 17â€ wide x 8â€ high x 19â€ deep (unboxed; including feet) \n \n 17â€ wide x 7â€ high x 19â€ deep (unboxed; without feet) \n \n 24-1/2â€ wide x 12â€ high x 24-3/4â€ deep (boxed)
Weight	\n 53 lbs (unboxed) \n \n 58 lbs (boxed)
