Emotiva XPA-7 Gen3 - 7 Channel Power Amplifier

Product Description

A 7 Channel Audiophile Home Theater Power Amplifier
Perfect for powering the seven main bed channels of a 5.1 channel, 7.1 channel, or Dolby Atmos / DTS:X home theater system.
Low noise, low distortion, wideband amplifier design.
Optimized Soft-Switch Class Hâ„¢ power supply topology.

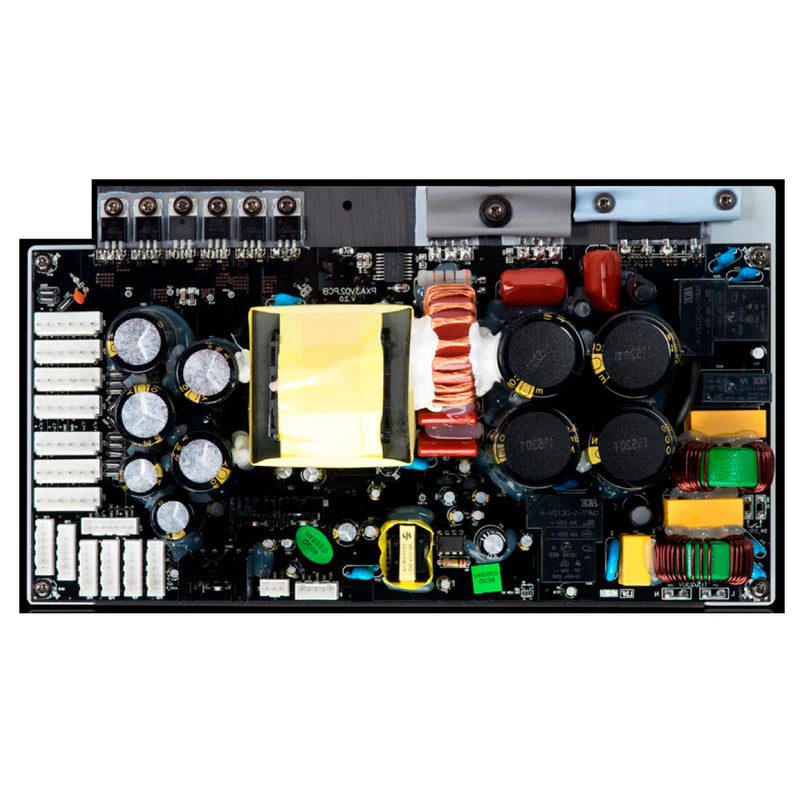

Switched Mode Power Supply (SMPS) offers all of the performance of a traditional linear power supply, with improved efficiency and reliability, and reduced overall weight.
Solid machined gold-plated RCA input connectors.
Standard IEC power inlet fits all standard IEC power cables and most custom audiophile power cables.
Remote trigger input and output allow the XPA-7 Gen3 to control and be controlled by other trigger-enabled equipment.

\n \n \n \n \n \n \n \n \n \n \n

IN THE BOX
Sales Package	Amplifier and User Documentation

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

General
Brand	Emotiva
Model	XPA-7 Gen3
Color	black

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications
\n Power Output	\n 300 watts RMS/channel; 20 Hz â€“ 20 kHz; THD<0.1%; 8 Ohms; one channel driven \n 550 watts RMS/channel; 20 Hz â€“ 20 kHz; THD<0.2%; 4 Ohms; one channel driven \n 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven \n 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven \n 200 watts RMS/channel; THD<0.1%; 8 Ohms; ALL SEVEN channels driven
\n Power Bandwidth (at rated power; 8 Ohm load)	\n 20 Hz to 20 kHz (+ / â€“ 0.1 dB)
\n Broad Band Frequency Response	5 Hz to 80 kHz +0/-2 dB
\n THD + noise	< 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms
\n Signal to Noise Ratio (8 Ohm load)	> 117 dB; ref FTC rated power; unbalanced input (A-weighted). > 91 dB; ref 1 watt; unbalanced input (A-weighted)
\n Minimum Recommended Load Impedance (per channel)	4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads
\n Damping Factor (8 Ohm load)	\n > 500
\n Input Sensitivity (for rated power; 8 Ohm load)	1.5 V
\n Gain	29 dB
\n Input Impedance	\n 33 kOhms (balanced) \n \n 23.5 kOhms (unbalanced)
\n Input Connections (High-Powered Single Channel Modules)	\n Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable
\n Input Connections (Stereo Modules)	2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable
\n Speaker Output Connections	Audiophile grade, gold plated, 5-way binding posts
\n Trigger	\n Trigger Input: 5 â€“ 12 V (AC or DC); <10 mA input current required \n Trigger Output: 12 VDC; can drive any load up to 120 mA.
\n Standby	push button (halo ring changes color to indicate Standby or On)
\n Status LEDs	one per channel; blue. Status LEDs change to red to indicate a fault condition
\n Protection	The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Dimension
Dimension	\n 17â€ wide x 8â€ high x 19â€ deep (unboxed; including feet) \n 17â€ wide x 7â€ high x 19â€ deep (unboxed; without feet) \n 24-1/2â€ wide x 12â€ high x 24-3/4â€ deep (boxed)
Weight	\n 53 lbs (unboxed) \n \n 58 lbs (boxed)
