Emotiva XPA-3 Gen3 - 3 Channel Power Amplifier

Product Description

New XPA-3 is a three-channel audiophile quality power amplifier.
Low noise, low distortion, wideband amplifier design with traditional Class A/B output.
Designed to sound superb in all types of audio systems & forms of music.

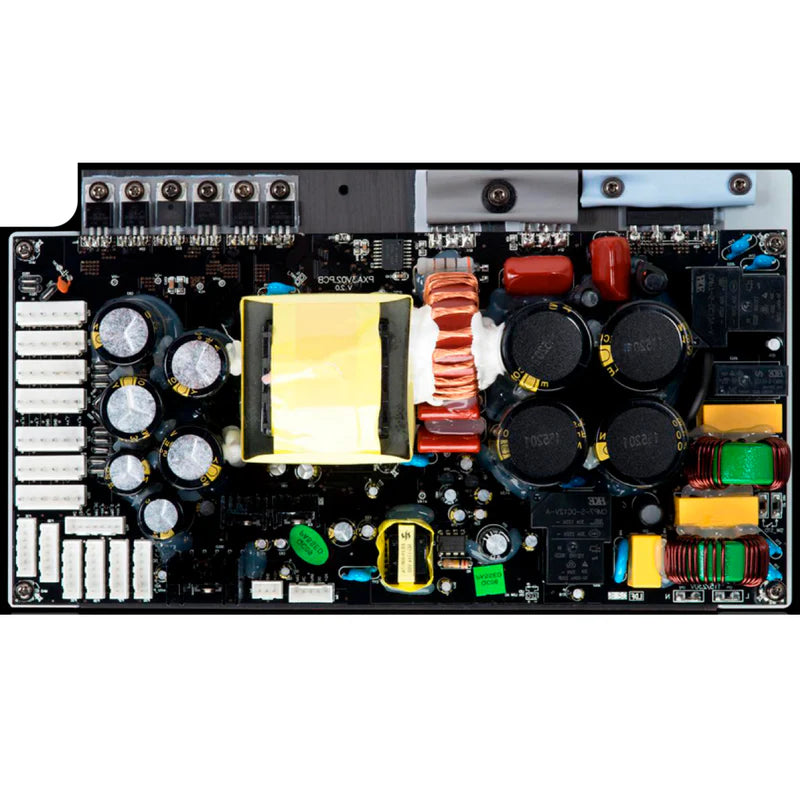

Switched Mode Power Supply (SMPS) offers all of the performance of a traditional linear power supply.
Optimized Soft-Switch Class Hâ„¢ power supply topology.
Solid machined gold-plated RCA input connectors.
Remote trigger input and output allow the XPA-3 Gen3 to control and be controlled by other trigger-enabled equipment.
The XPA-3 Gen3 is protected from AC line faults by a rugged resettable rear panel push-button circuit breaker.

\n \n \n \n \n \n \n \n \n \n \n

IN THE BOX
Sales Package	Amplifier and User Documentation

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

General
Brand	Emotiva
Model	XPA-3 Gen3
Color	black

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications
\n Power Output	\n 300 watts RMS/channel; 20 Hz â€“ 20 kHz; THD<0.1%; 8 Ohms; one channel driven \n \n 550 watts RMS/channel; 20 Hz â€“ 20 kHz; THD<0.2%; 4 Ohms; one channel driven \n \n 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven \n \n 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven \n \n 275 watts RMS/channel; THD<0.1%; 8 Ohms; ALL THREE channels driven
\n Power Bandwidth (at rated power; 8 Ohm load)	20 Hz to 20 kHz (+ / â€“ 0.1 dB)
\n Broad Band Frequency Response	5 Hz to 80 kHz +0/-2 dB
\n THD + noise	< 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms
\n Signal to Noise Ratio (8 Ohm load)	\n > 117 dB; ref FTC rated power; unbalanced input (A-weighted) \n \n > 91 dB; ref 1 watt; unbalanced input (A-weighted)
\n Minimum Recommended Load Impedance (per channel)	\n 4 Ohms \n (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
\n Damping Factor (8 Ohm load)	> 500
\n Input Sensitivity (for rated power; 8 Ohm load)	1.5 V
Gain	29 dB
\n Input Impedance	\n 33 kOhms (balanced) \n \n 23.5 kOhms (unbalanced)
\n Input Connections (High-Powered Single Channel Modules)	Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable
\n Input Connections (Stereo Modules)	2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable
\n Speaker Output Connections	Audiophile grade, gold plated, 5-way binding posts
\n Trigger Input	5 â€“ 12 V (AC or DC); <10 mA input current required
\n Trigger Output	12 VDC; can drive any load up to 120 mA
\n Power requirements	Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Dimension
Dimension	\n 17â€ x 8â€ x 19â€ (unboxed; including feet) \n \n 17â€ x 7â€ x 19â€ (unboxed; without feet) \n \n 24-1/2â€ x 12â€ x 24-3/4â€ (boxed)
Weight	\n 17.6 kg / 39 lbs (unboxed) \n \n 19.9 kg / 44 lbs (boxed)
