Emotiva XPA-11 - 11 Channel Power Amplifier

Name: Emotiva XPA-11 - 11 Channel Power Amplifier
Brand: Cinesound
SKU: CINE713
Availability: InStock

Rs. 0.00

Sale Sold out

Emotiva XPA-11 - 11 Channel Power Amplifier

Product Description

An 11 Channel Audiophile Home Theater Power Amplifier
Perfect for powering all of your speakers in a 7.1.4 configuration or 9.1.2 configuration Dolby Atmos / DTS:X home theater system.
Low noise, low distortion, wideband amplifier design.
Totally stable with real world speakers in real systems.
Optimized Soft-Switch Class Hâ„¢ power supply topology.
Switched Mode Power Supply (SMPS).
Remote trigger input and output allow the XPA-11 Gen3 to control and be controlled by other trigger-enabled equipment.
Standard IEC power inlet fits all standard IEC power cables and most custom audiophile power cables.
The XPA-11 Gen3 is protected from AC line faults by a rugged resettable rear panel push-button circuit breaker.

\n \n \n \n \n \n \n \n \n \n \n

IN THE BOX
Sales Package	Amplifier and User Documentation

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

General
Brand	Emotiva
Model	XPA-11 Gen3
Color	black

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications
\n Power output (High-Powered Single Channel Modules)	\n 300 watts/channel RMS into 8 Ohms; two channels driven \n 490 watts/channel RMS into 4 Ohms; two channels driven
\n Power output (Stereo Modules)	\n 65 watts/channel RMS into 8 Ohms; two channels driven \n \n 100 watts/channel RMS into 4 Ohms; two channels driven
\n Audio	Audiophile quality Class A/B output stage
\n Balance	Balanced and unbalanced inputs for compatibility with a wide variety of preamps and surround sound processors
\n Design Topology	\n Class A/B output stage; Optimized Class H power supply topology on High-Powered Single Channel Modules for improved efficiency \n \n Regulated switch mode power supply combines massive power capability, high reliability, excellent performance, and reduced weight
\n Features	\n Fully modular construction for optimum flexibility. \n \n Universal AC power automatically selects the proper line voltage for easy installation in a wide variety of locations. \n \n Comprehensive yet transparent protection circuitry protects from most common fault conditions without degrading sound quality.
\n Power Requirements	\n 100 â€“ 250 VAC 50/60 Hz (automatically detected)
\n Input and Output Connections	\n Input Connections (High-Powered Single Channel Modules): \n Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable \n \n Input Connections (Stereo Modules): \n 2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable \n \n Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts \n \n Trigger: \n Trigger Input: 5 â€“ 12 V (AC or DC); <10 mA input current required \n Trigger Output: 12 VDC; can drive any load up to 120 mA

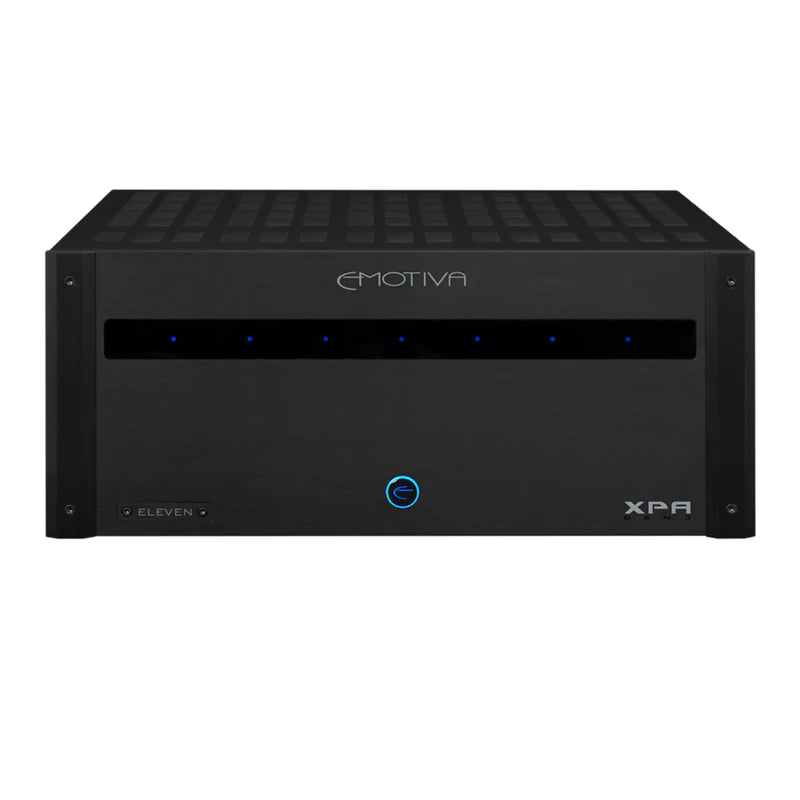

\n Front Panel Controls and Indicators	\n Standby: push button (halo ring changes color to indicate Standby or On) \n \n Status LEDs: one per channel; blue. \n Status LEDs change to red to indicate a fault condition

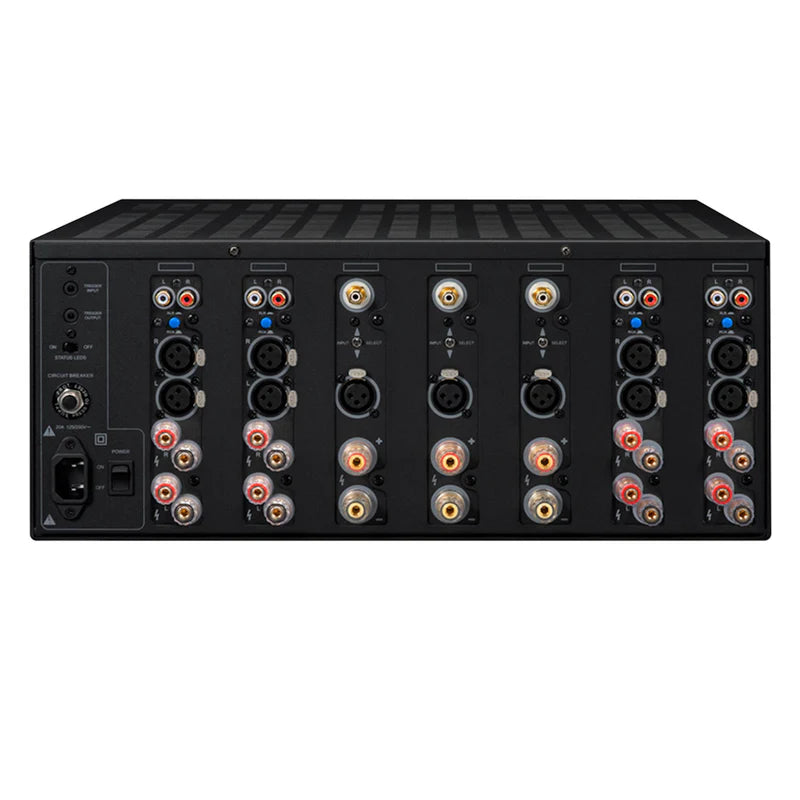

\n Rear Panel Controls and Indicators	\n AC Power switch: rocker switch (switches AC main power) \n \n Status LEDs switch: disables front panel Status LEDs and dims Standby button halo \n \n Input selector switches (one per channel): \n metal toggle switches; select between balanced and unbalanced inputs \n \n Circuit Breaker: press button to reset circuit breaker
