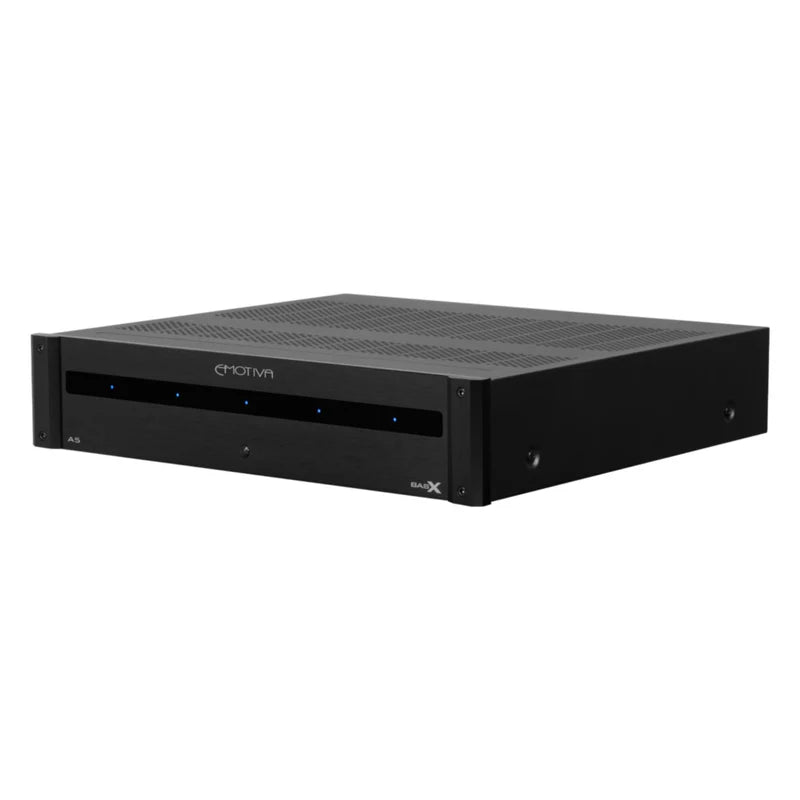

Emotiva BasX A5 - Five Channel Power Amplifier

Name: Emotiva BasX A5 - Five Channel Power Amplifier
Brand: Cinesound
SKU: CINE718
Availability: InStock

Rs. 0.00

Sale Sold out

Emotiva BasX A5 - Five Channel Power Amplifier

Product Description

This support with all types of audio systems with all types of music.
It gives detailed sound and incredibly natural imaging.
It has Low noise, wide bandwidth design, and a highly optimized input stage.

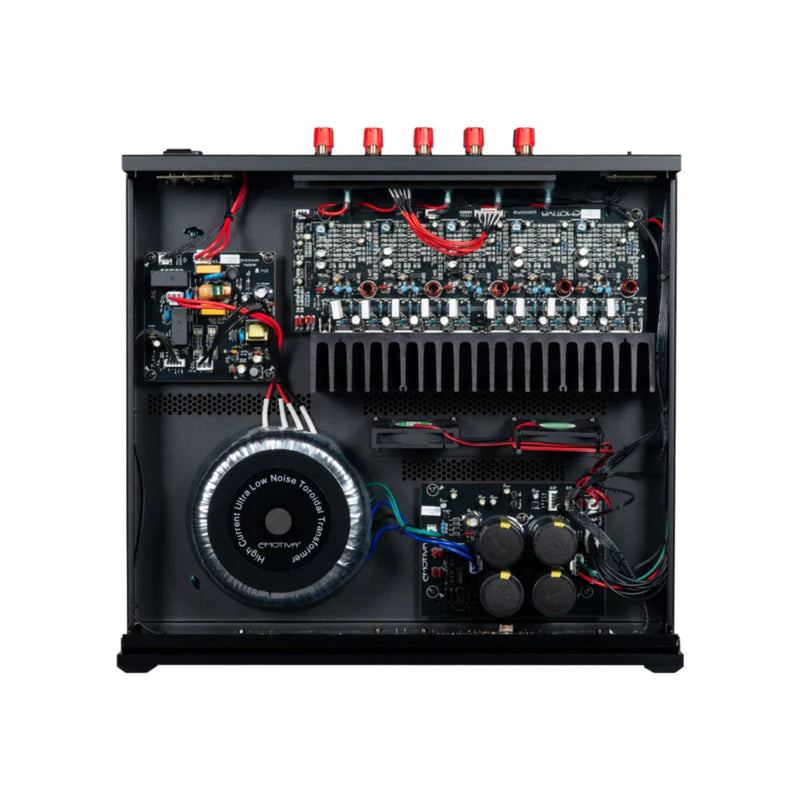

It has heavy duty linear power supply with an oversized toroidal power transformer.

\n \n \n \n \n \n \n \n \n \n \n

IN THE BOX
Sales Package	Emotiva BasX-A-5 Five-Channel Power Amplifier and User documentation

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

General
Brand	emotiva
Model	Basx-A-5
Year
Color	black

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Dimension
Dimension	\n 17â€ wide x 4â€ high x 15-1/2â€ deep (not including connectors). \n 21-1/2â€ wide x 8â€ high x 21â€ deep (boxed).
Weight	\n 26.5 lbs (unboxed) \n 33 lbs (boxed)

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specification
\n Audio Specifications	\n Power Output (ALL channels driven): \n 95 watts RMS per channel; 20 Hz â€“ 20 kHz; THD < 0.1%; into 8 Ohms. \n 130 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms. \n Power Output (two channels driven): \n 120 watts RMS per channel; into 8 Ohms. \n 175 watts RMS per channel; into 4 Ohms. \n Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / â€“ 0.02 dB) \n Broad Band Frequency Response: 10 Hz to 80 kHz +0/-1.8 dB \n THD + noise: < 0.02% (A-weighted); ref rated power \n Signal to Noise Ratio (8 Ohm load): \n > 116 dB; ref rated power; (A-weighted). \n Minimum Recommended Load Impedance (per channel): 4 Ohms \n (which equals one 4 Ohm load or two paralleled 8 Ohm loads). \n Damping Factor (8 Ohm load): > 500. \n Input Sensitivity (for rated power; 8 Ohm load): 1.2 V. \n Gain: 29 dB. \n Input Impedance: 27 kOhms.

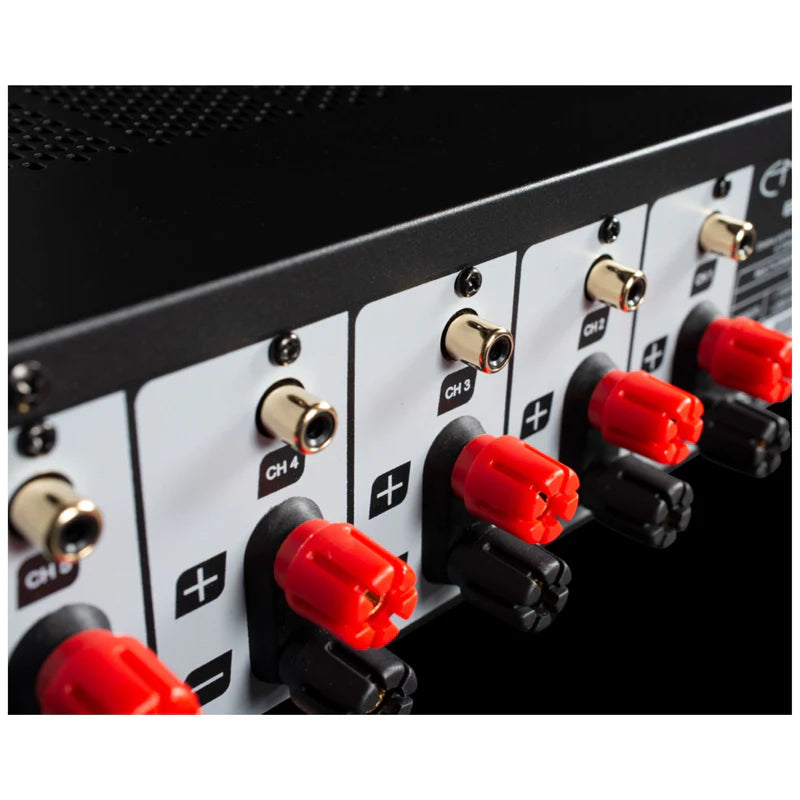

\n Input & Output Connections	\n Input Connections: Unbalanced (RCA); one each per channel. \n Speaker Output Connections: Audiophile grade 5-way binding posts. \n Trigger: \n Trigger Input: 5 â€“ 12 V (AC or DC); <10 mA input current required. \n Trigger Output: 12 VDC; can drive any load up to 120 mA.
\n Power Requirements	\n 115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).

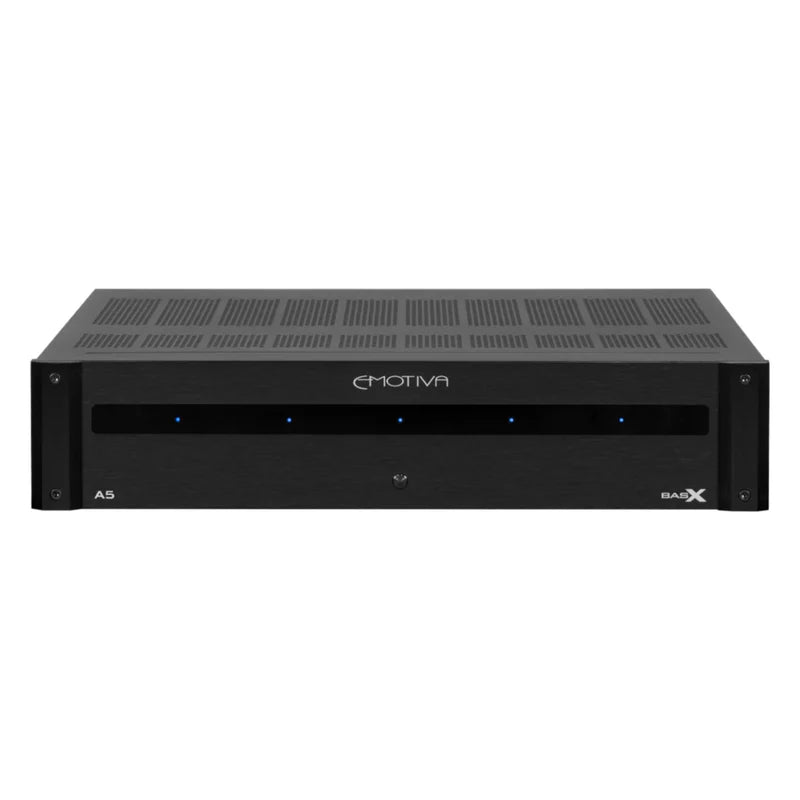

\n Front Panel Controls and Indicators	\n Standby: push button. \n Status LEDs: one per channel; blue. \n Status LEDs change to red to indicate a fault condition. \n Standby LED: amber.

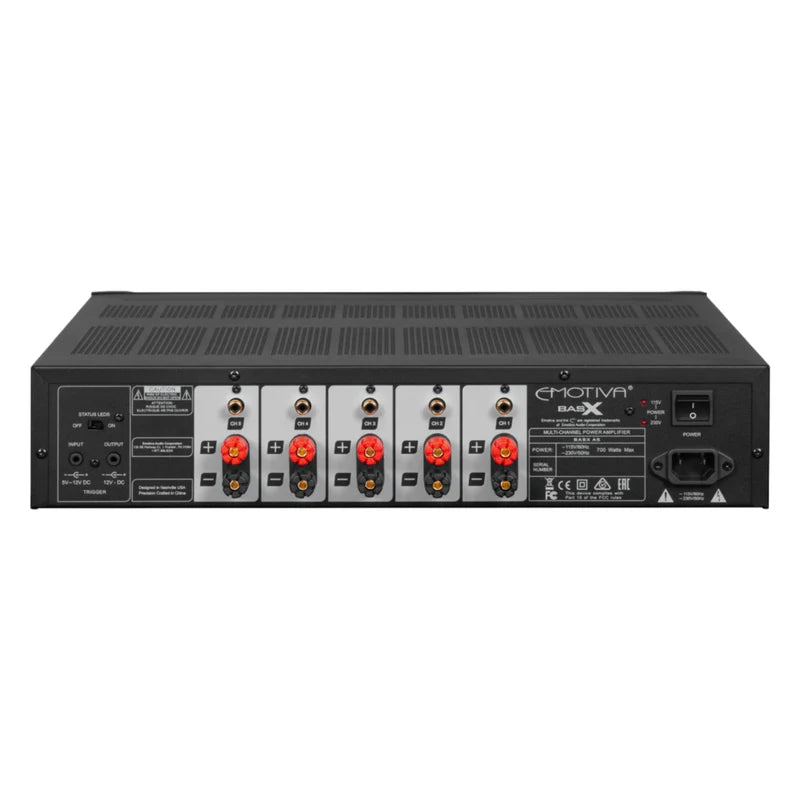

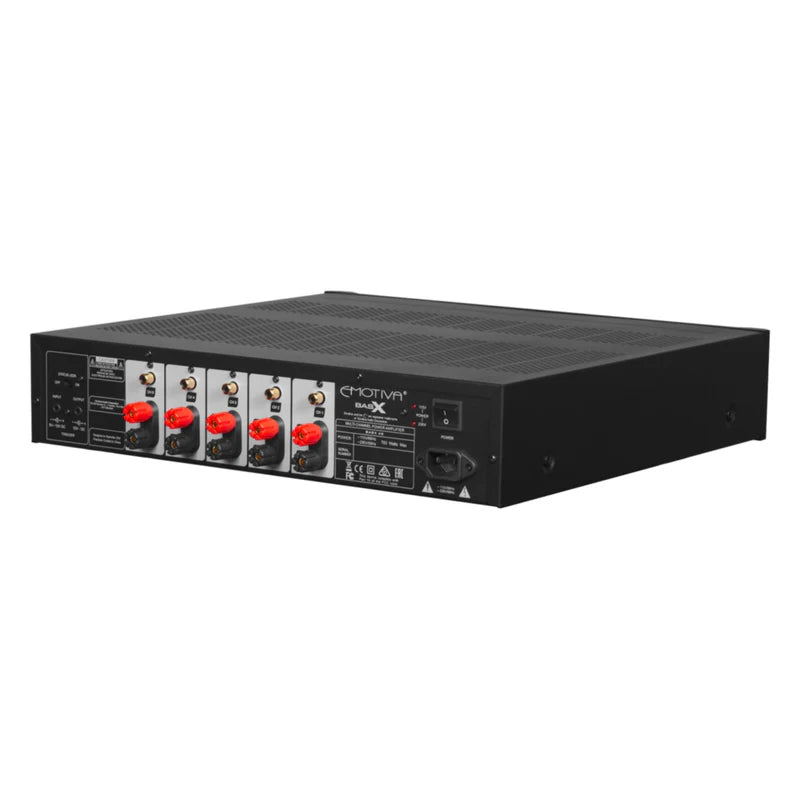

\n Rear Panel Controls and Indicators	\n AC Power switch: rocker switch (switches AC main power). \n Status LEDs switch: disables front panel Status LEDs.
