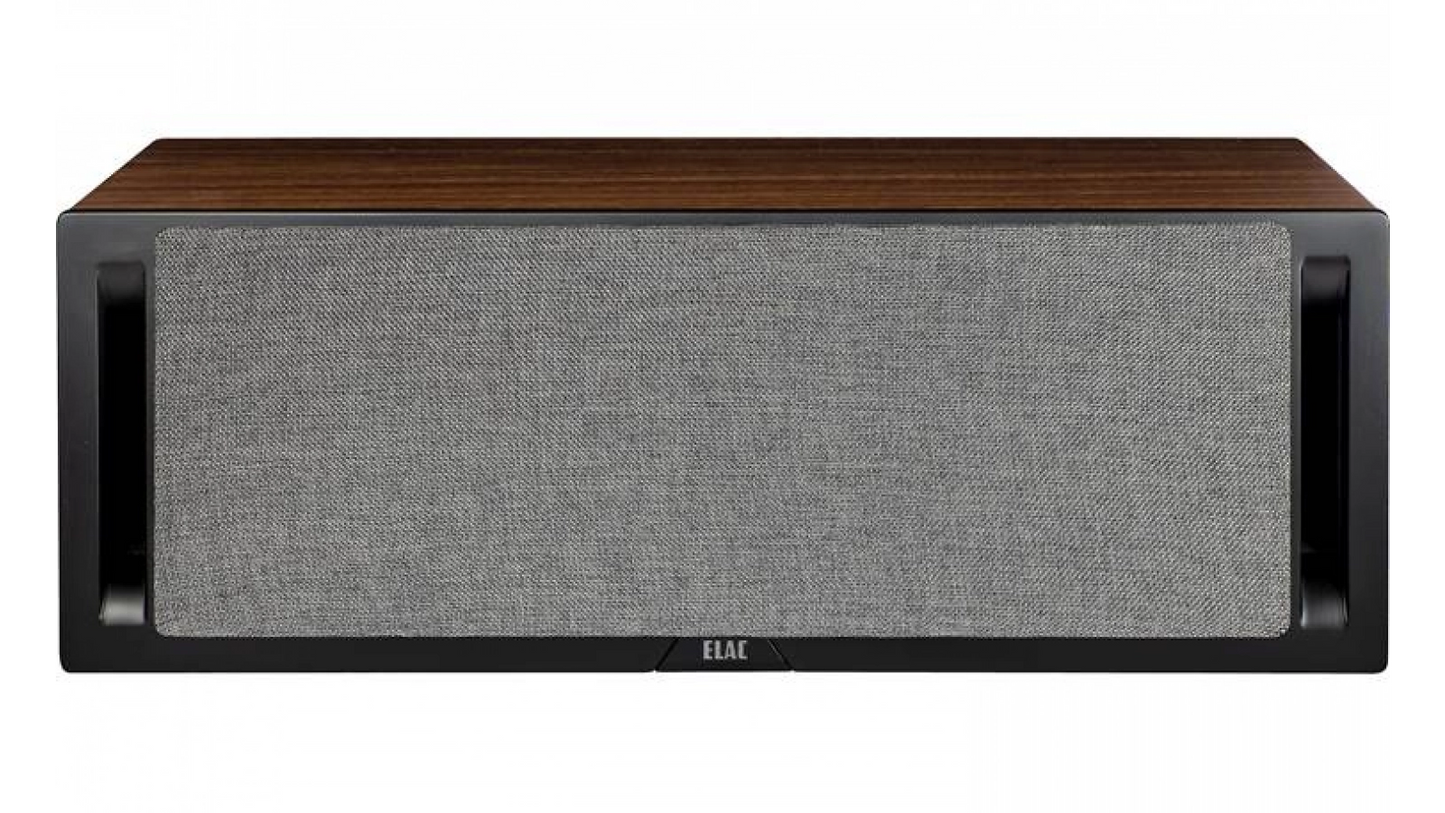

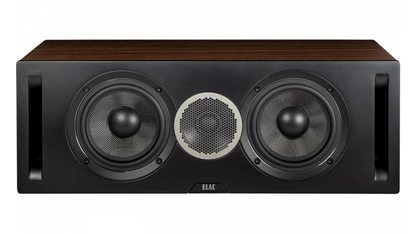

Enter the realm of extraordinary sound with the ELAC Debut Reference Center Channel Speaker. This pinnacle of audio engineering redefines the essence of clarity and precision in home theater setups. Crafted with meticulous attention to detail, this center channel speaker embodies acoustic excellence. Designed to complement the Debut Reference series, it serves as the anchor for immersive audio experiences, delivering crystal-clear dialogue and immersive soundscapes. Immerse yourself in cinematic realism as the ELAC Debut Reference Center Channel Speaker elevates your entertainment, bringing every whisper and thunderous roar to life with unparalleled fidelity and depth.
Improved High Frequency Response

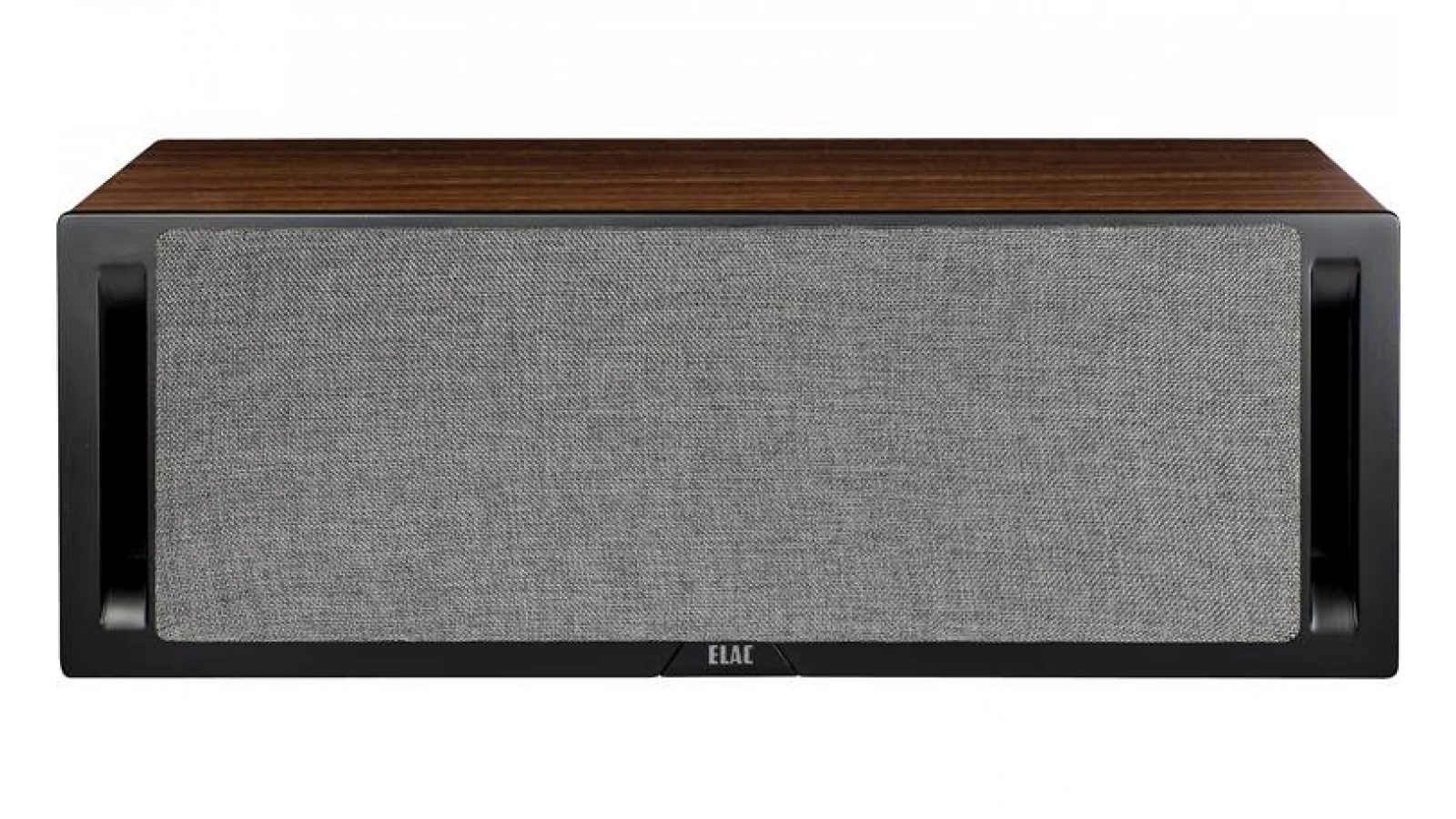

An innovative waveguide, coupled with a redesigned, more open grill design, improves the upper high frequency response of the Debut Reference’s 1” soft-dome tweeter.
Full Perimeter Bracing
A newly implemented full perimeter brace, connecting the top, bottom, and side panels, effectively reduces cabinet vibrations, resulting in minimized audio coloration within the cabinet.

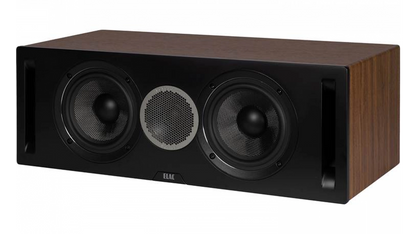

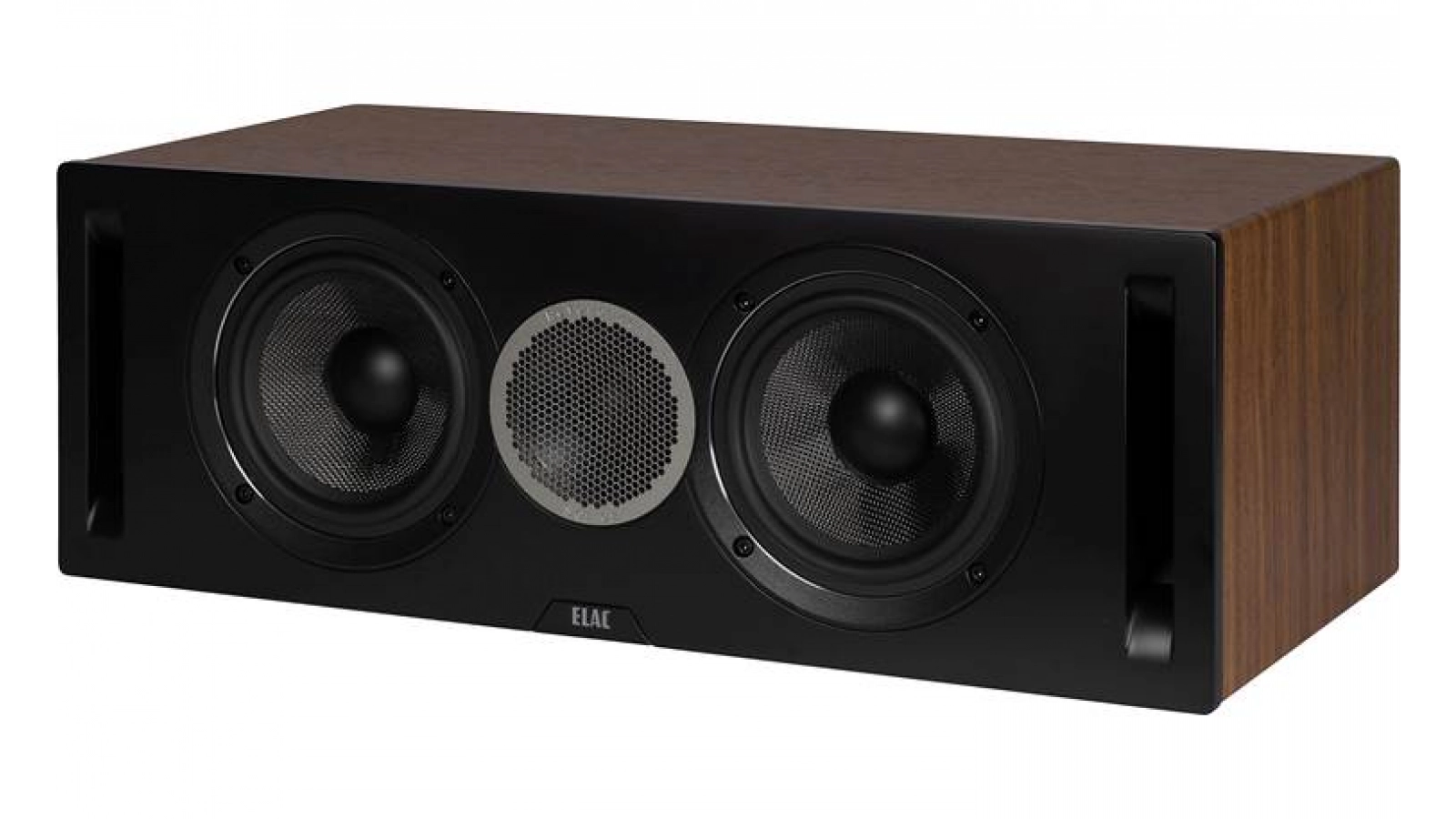

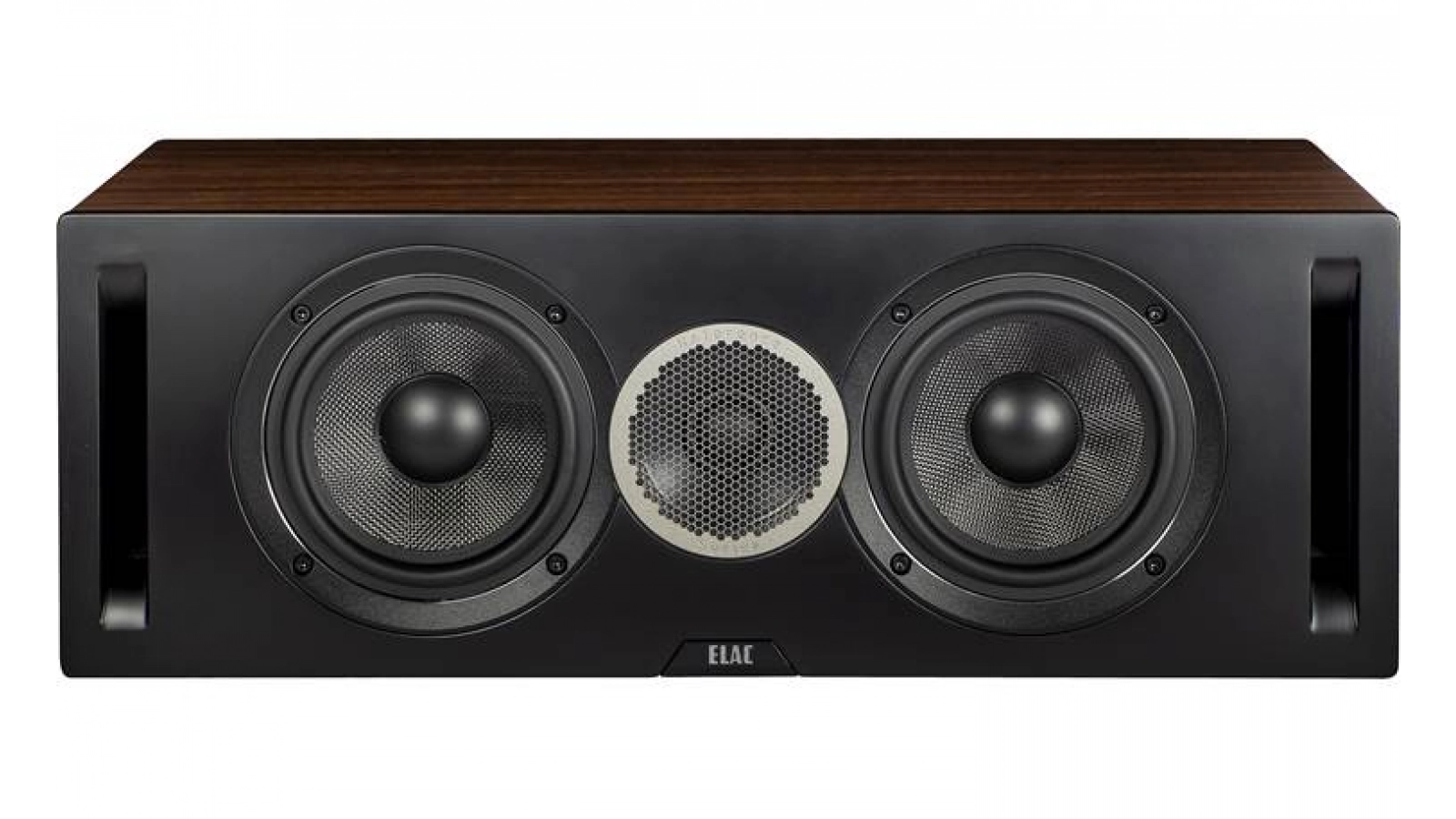

Cast Chassis Woofer
The recently developed cast chassis woofer enhances stiffness, reinforcing the front baffle and effectively minimizing resonances within the chassis and cabinet. Paired with our custom aramid cone that offers even greater stiffness and damping, far superior to polypropylene or paper.
Our goal was to build on the success of the Debut Series
We wanted to maintain the value proposition, with a modern contemporary design exclusive for our dealers. Improve fit and finish and develop new driver to warrant the name “Reference”
SPECIFICATIONS
Height × Width × Depth
185 × 527 × 242 mm
Weight
10.1 Kg
Enclosure Type
2-Way Bass Reflex
Frequency Response
55Hz - 35000Hz
Nominal Impedance
8 Ω
Sensitivity
87dB @ 2.83v/1m
Crossover Frequency
2200Hz
Max Power Input
120 Watts
Tweeter
1” Soft Dome
Woofer
2 x 5-1/4” Aramid Fiber
Cabinet
CARB2 Rated MDF
Port
2 × Dual Flared

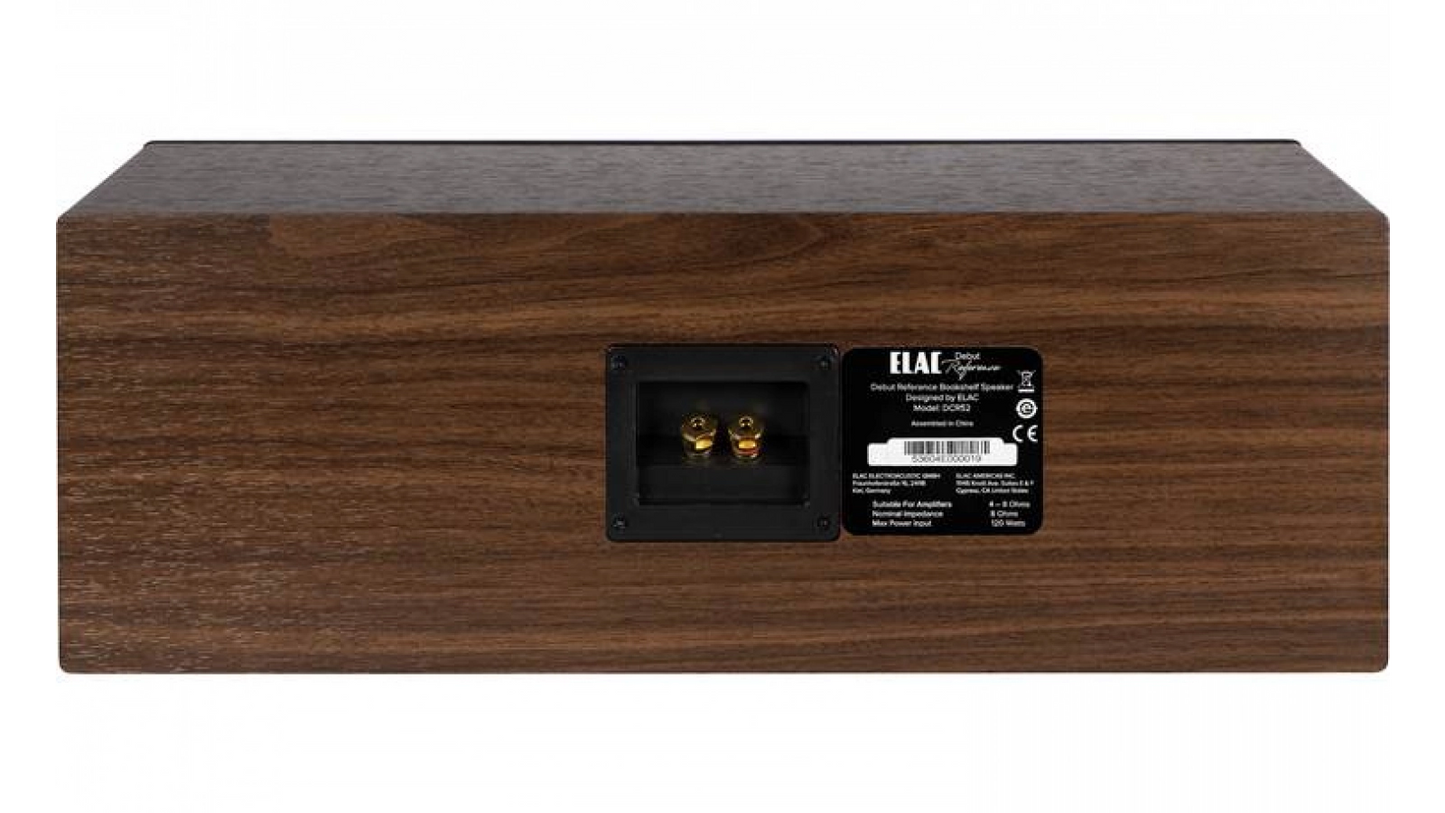

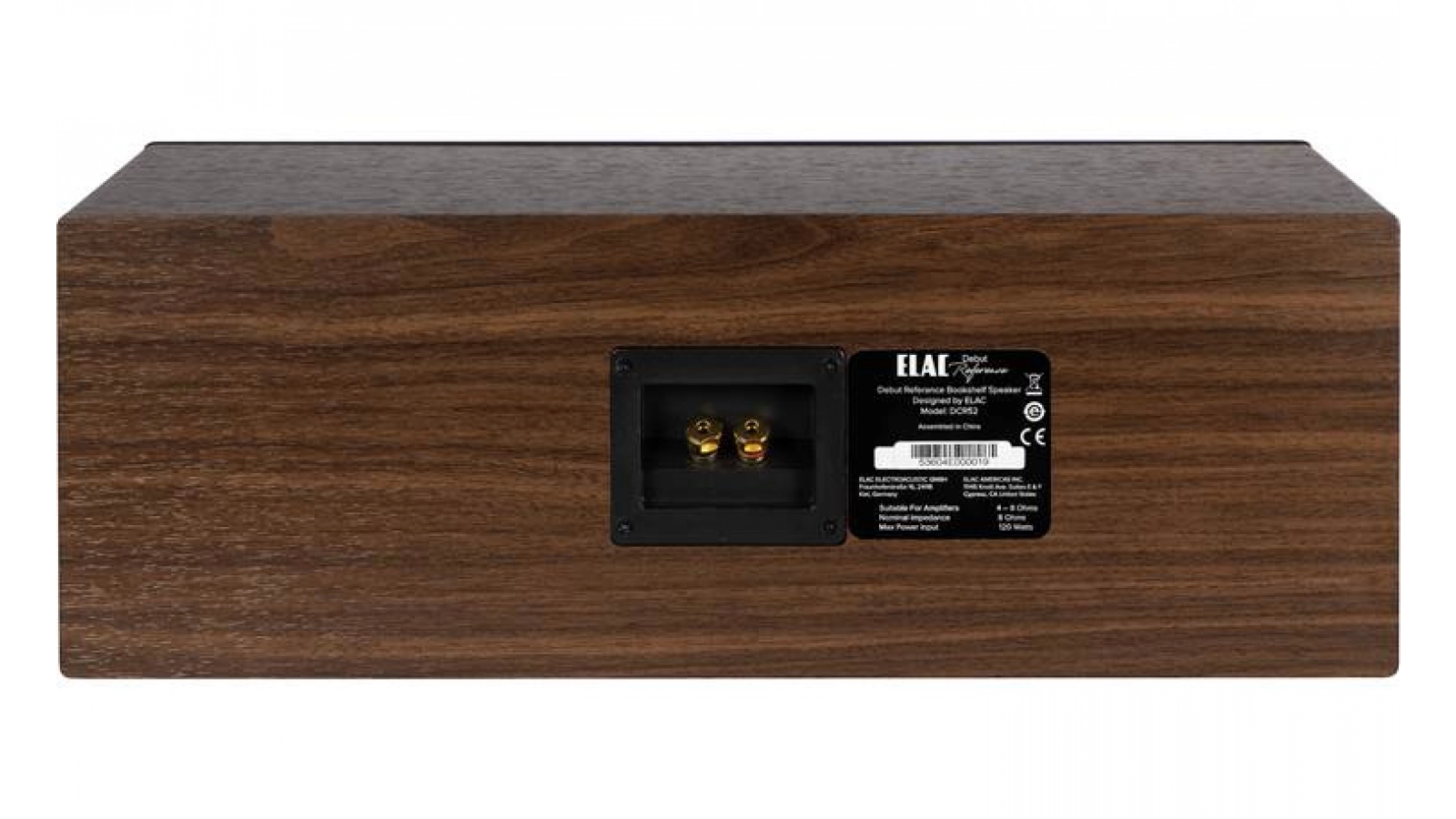

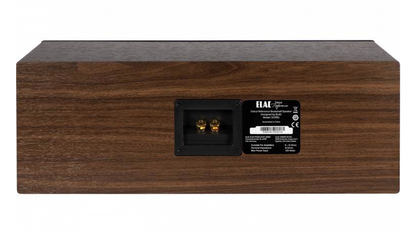

Binding Posts
5-Way Metal
Cabinet Finish
White Baffle / Oak Cabinet or Black Baffle / Walnut Cabinet
