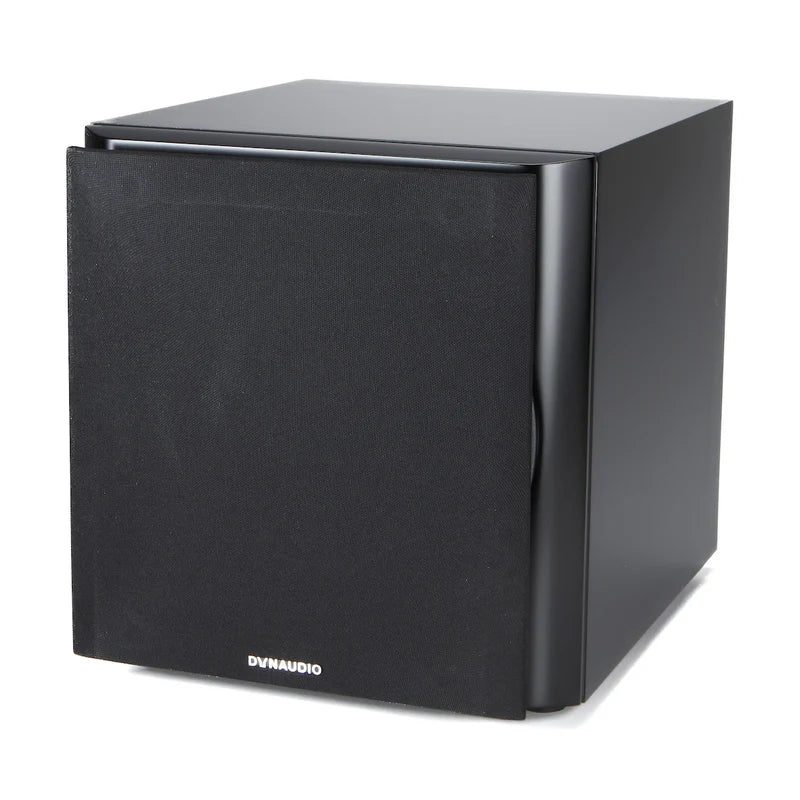

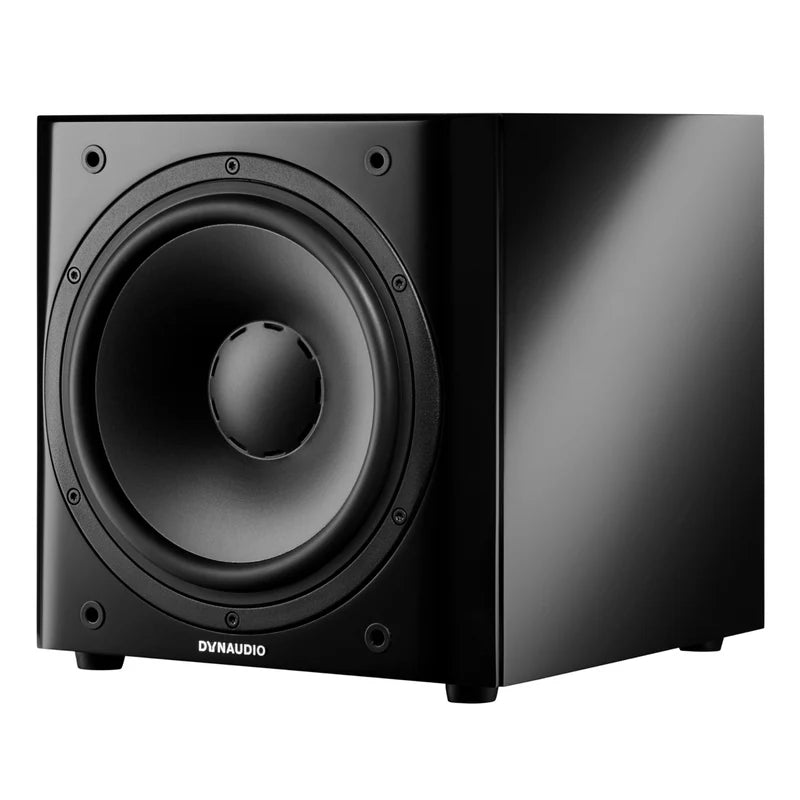

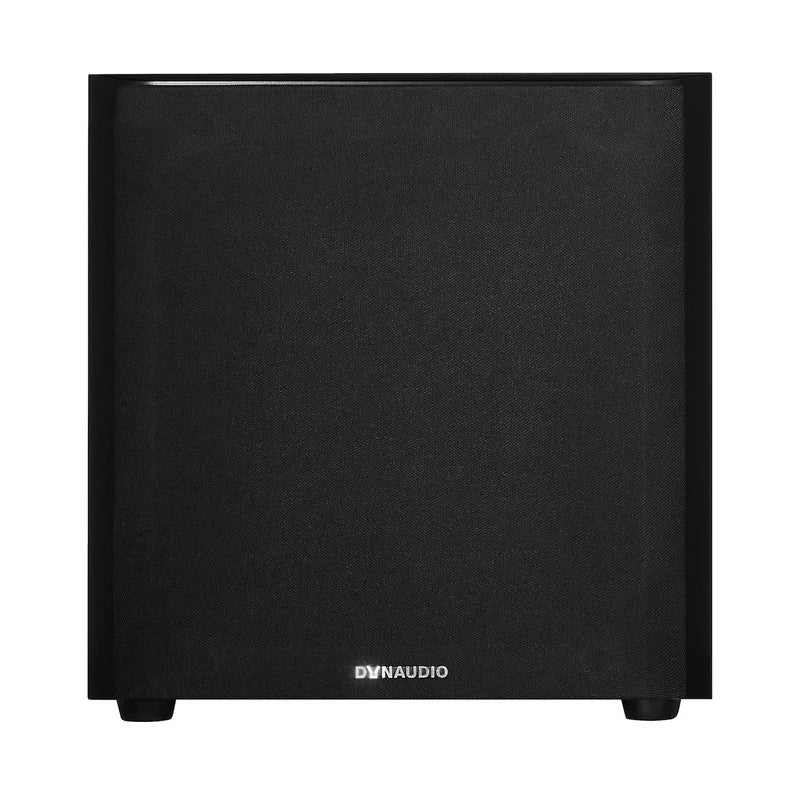

DYNAUDIO SUB 3

\n

High-end low end

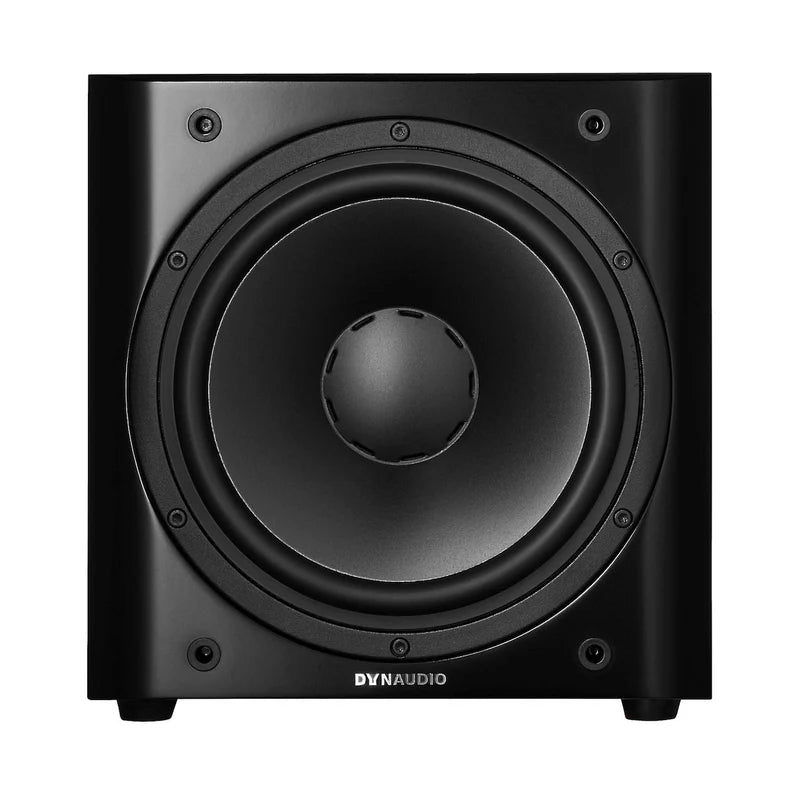

\nContour-level components and construction make the compact Sub 3, with its double-thickness front baffle and brand-new 24cm driver, the ideal companion for any stereo or multichannel system \n \nThe Sub 3 is a flexible subwoofer that’s been designed to work just as well with movies as it does with music, delivering weight, authority and punch no matter which source you use. \n \nIt does all of this in a compact and convenient size, taking the strain of the low end away from any stereo or multi-channel setup and improving the midrange performance in the process. \n \nIt has the same dimensions as the previous Dynaudio Sub 250, so it’s easy to accommodate, but Dynaudio engineers have managed to squeeze in the more powerful 300W amp and full feature set of the larger Sub 600. \n \nThere are some new additions too. There’s now a double-thickness 37mm front baffle (curved, similar to Contour) to increase its rigidity, plus a brand-new 24cm driver, which joins the rest of the Sub 3’s Contour-quality components. \n \nIt’s been designed to this high standard for a reason – the Sub 3 can slot seamlessly into any system all the way up to this level, regardless of its size or configuration. \n \nWhere there’s no subwoofer output on the amplifier (common in a stereo system setup) the Sub 3’s dual RCA inputs and outputs let you pass a signal through the Sub 3 itself. \n \nYou can also fine-tune the crossover point (flat, 60Hz or 80Hz) using the Sub 3’s high-pass filter to ensure the best performance possible. \n \n  \n

Specifications

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

System	Single driver, active subwoofer

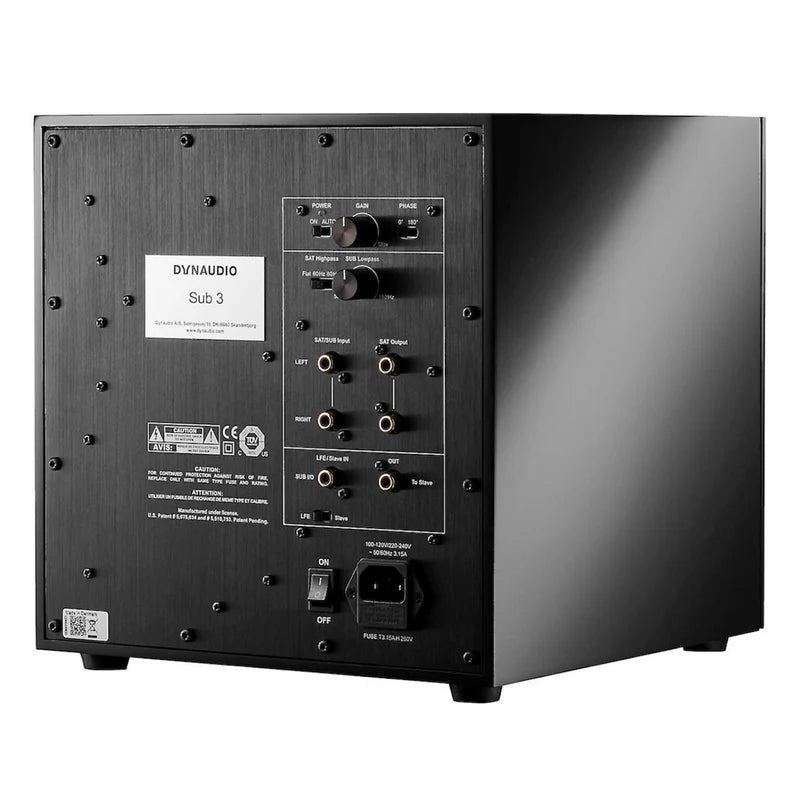

Analog inputs	1x RCA LFE, 2x RCA stereo
Analog outputs	1x RCA Slave out, 2x RCA SAT out
Frequency response (±3 dB)	22Hz–175Hz
Auto ON/OFF	Yes
Box principle	Sealed
High pass filter	Flat/60/80Hz
Low pass filter	50Hz - 150Hz
Phase adjustment	0/180 degrees
Woofer	23cm MSP
Amplifier power	300W
AC power input	100-120 V/200-240 V 50/60Hz
Standby power consumption	< 0.5W
Maximum power consumption	350W
Weight	10.5kg/23.1lb
Dimensions (W x H x D)	266x276x320mm
Dimensions with feet/grille (W x H x D)	266x276x336mm
