DESCRIPTION Dynaudio Emit 20

\n

Hi-fi starts with Emit

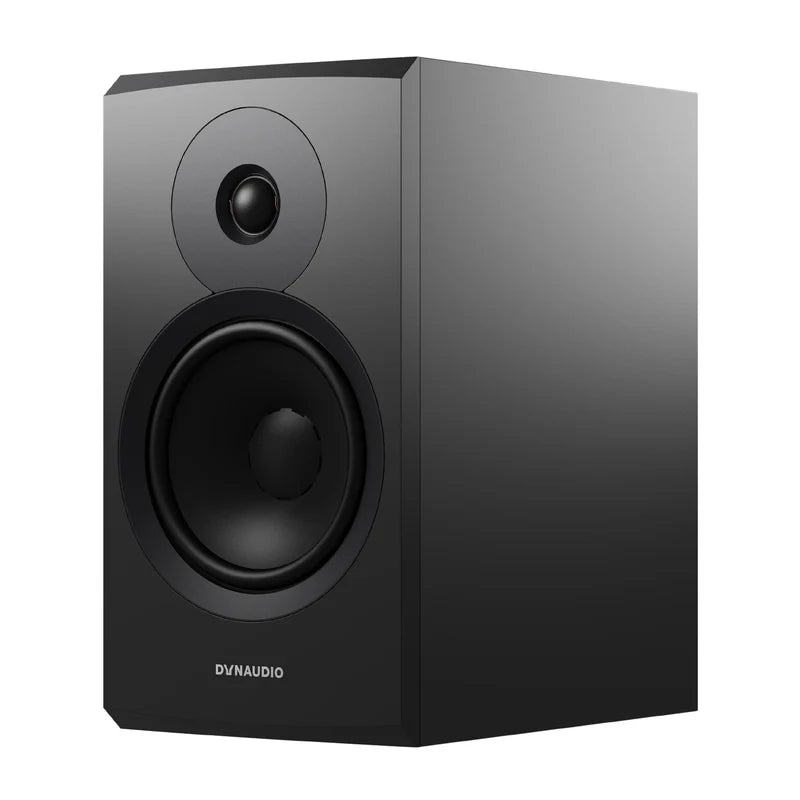

\nJaw-dropping performance from powerful standmounters \n \nEmit 20 is a high-performance standmount speaker derived from Dynaudio’s Evoke, Contour i and Confidence series. It gives a stellar combination of detail and punch for small to medium-sized rooms. \n \nWe don’t use the term ‘authentic fidelity’ lightly. With Emit 20, that’s exactly what you’ll get: a premium audiophile speaker that astonishes at the price. It might be an ‘entry-level’ model, but Emit 20 is still crammed with technology that you’ll find in other Dynaudio families, right up to the flagship Confidence range and their Core professional reference monitors. Make no mistake: you’ll experience performance you simply wouldn’t expect at this level. \n \n \n

Mid/bass power and control

\nEmit 20 uses an 18cm MSP (Magnesium Silicate Polymer) woofer, based on the one Dynaudio used in the Evoke series. MSP is a material Dynaudio have developed in-house, and they have used it for many years on their most renowned models. The cone itself is a one-piece design; the dust-cap is moulded as part of the playing surface, which gives it a solid connection to the voice-coil that moves it back and forth. You’ll hear that connection as supreme control and detail in the low and midrange frequencies. \n \nThe voice-coil itself is aluminium, wound onto a two-layer glass-fibre former. Dynaudio have a long history of using aluminium wire in their voice-coils – and for good reason. It’s light, so doesn’t impede fine movement, and they can get more windings on the former for a given length of wire. That means more ‘BL’, or magnetic power. More power means more punch. Dynaudio boosted that further, too, by coating the aluminium wire in copper. \n \nCombined with the stacked ferrite magnet system and new surround, that gives Emit 20’s long-throw mid/bass driver all the bass power you could want, even at high volumes, combined with amazing control over midrange frequencies (where instruments such as guitars, vocals and violins reside). \n

High-level tweeter performance

\nEmit 20 uses the Cerotar tweeter directly from Evoke. It’s a 28mm soft-dome design that includes the ingenious Hexis inner-dome device. The coated fabric dome delivers sweet-sounding high frequencies – all the openness and detail the artists want you to experience in their recordings – while the Hexis smooths the frequency response and reduces unwanted resonance for surprising clarity. \n \nCerotar is powered by a powerful Ferrite+ strontium carbonate ceramic magnet system. It gives the tweeter all the power it needs to play loud without breakup while maintaining all the nuance you could want. Even at neighbour-bothering levels. \n \nAnd because it uses technology from Dynaudio’s top-of-the-range Core pro reference speakers (whose users need to listen intently for long periods), you won’t get tired when you’re in the middle of a long session. \n

Inside the crossover

\nThe mid/bass driver and tweeter are marshalled by a custom-designed crossover from the same team who brought you Heritage Special and Core. Dynaudio engineers used a hybrid first- and second-order topology for the tweeter and woofer respectively, giving them exceptional control over each driver’s behaviour. It means you’ll hear what the artist wants you to hear, without compromise. \n

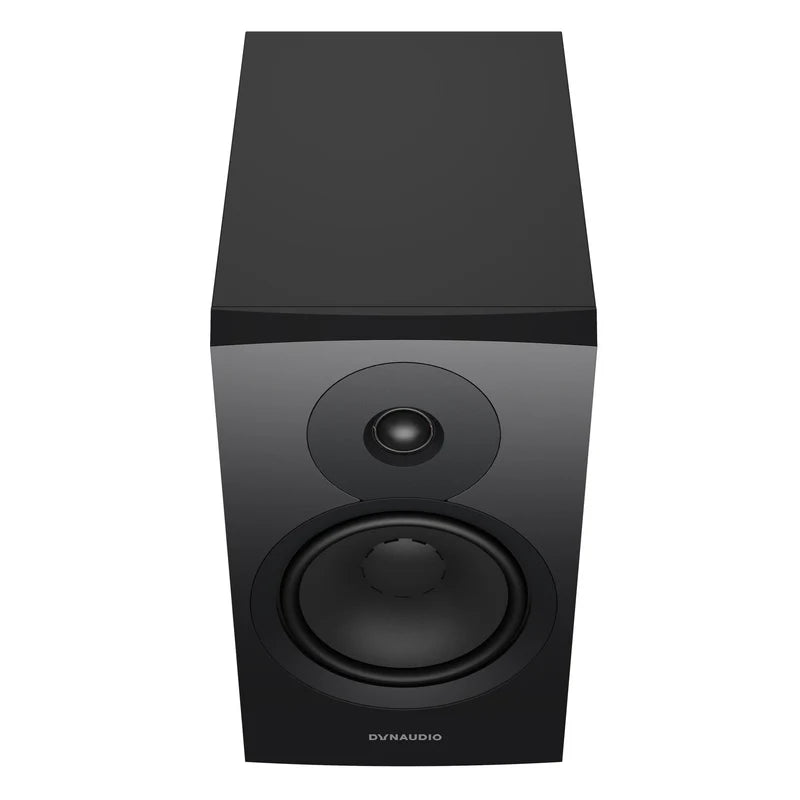

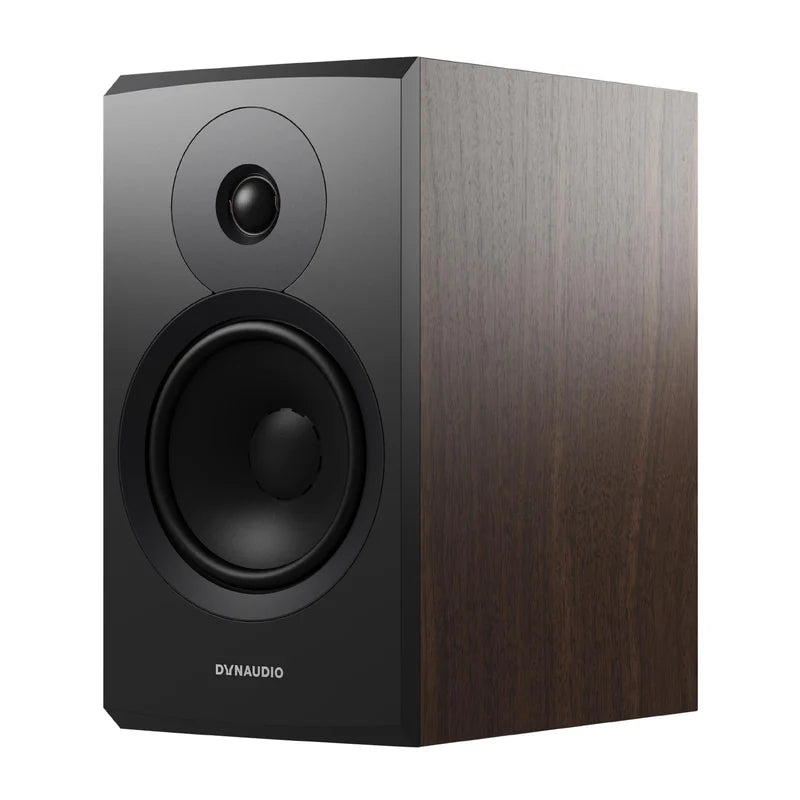

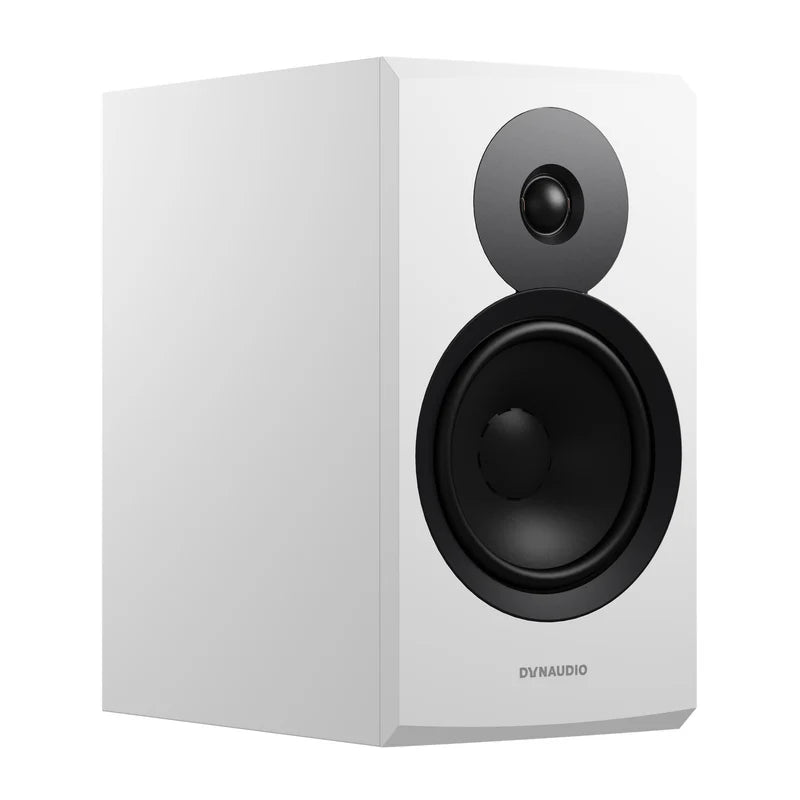

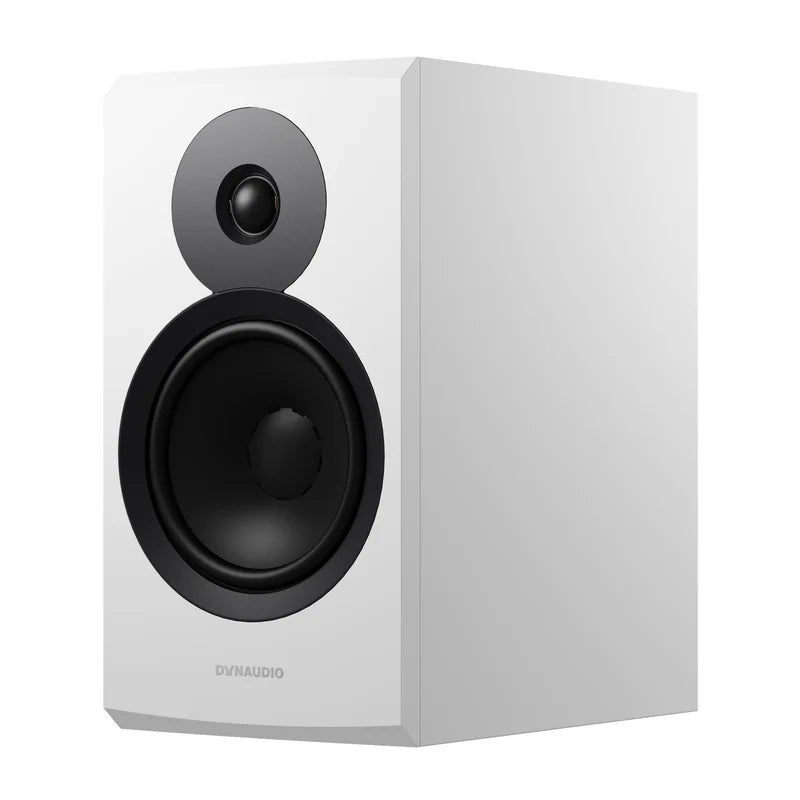

An impressive finish

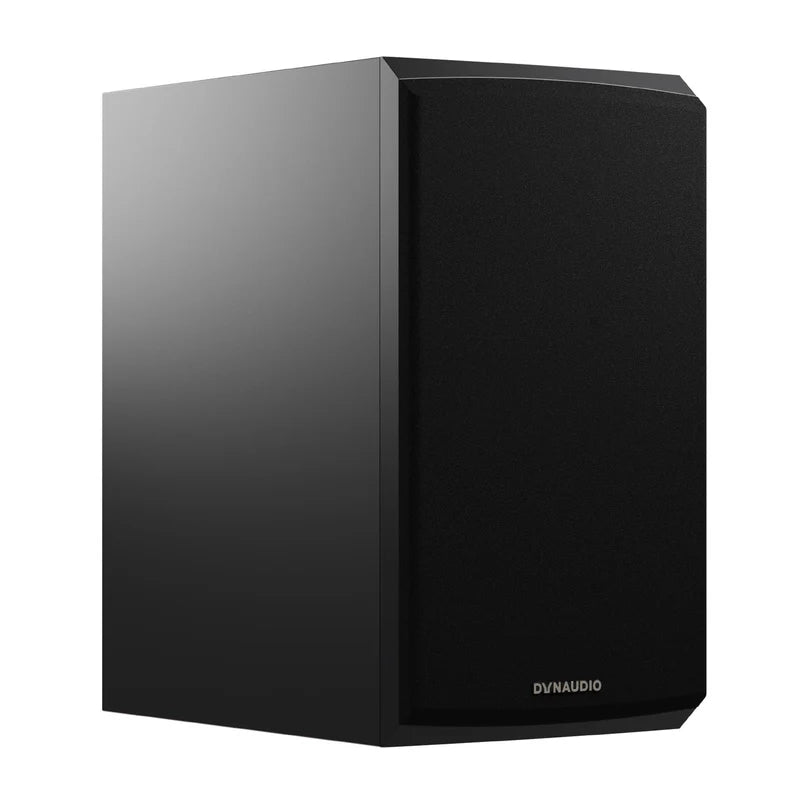

\nEmit 20 comes in three custom-designed laminate finishes – Black, White and Walnut – that beautifully complement the cabinets’ clean Scandinavian design (conceived in-house at the Dynaudio headquarters in Denmark). Black magnetic grilles come as standard in the box. \n \nDynaudio have even lavished attention on the cover-rings, which hide the mounting screws. They’re one-piece moulded with the surface finish embedded in the material, which eliminates the need for lacquer – so they won’t degrade over time. \n \nIf you want an audiophile-level standmount speaker for a stereo set-up in medium-size room, or fancy a little more ‘oompf’ from your rear surround channels, Emit 20 is the ideal choice. \n

Designed and engineered in Denmark

\nThe entire Emit family has been put through its paces in Dynaudio’s world-class Jupiter measuring facility at Dynaudio Labs. Dynaudio treat it exactly the same as they do every other speaker in their product range: no stone left unturned. \n \n \n

Cerotar tweeter

\nEmit uses the highly regarded Cerotar tweeter from the Dynaudio Evoke series. It's a high-quality high-frequency driver inspired by their top-end Confidence and Heritage Special speakers, and includes the innovative resonance-defeating Hexis inner dome. \n

Clean and simple

\nEach speaker in the Emit range is designed to fit with modern lifestyles and interiors. Clean lines, simple finishes and minimalist Scandinavian looks – whether you're listening in stereo or have a full multi-channel system.X \n

Specifications

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Sensitivity	86dB (2.83V/1m)
IEC power handling	160 watt
Impedance	6 Ω
Frequency response (± 3 dB)	53Hz - 25kHz (-6 dB 42 Hz - 35 Khz)

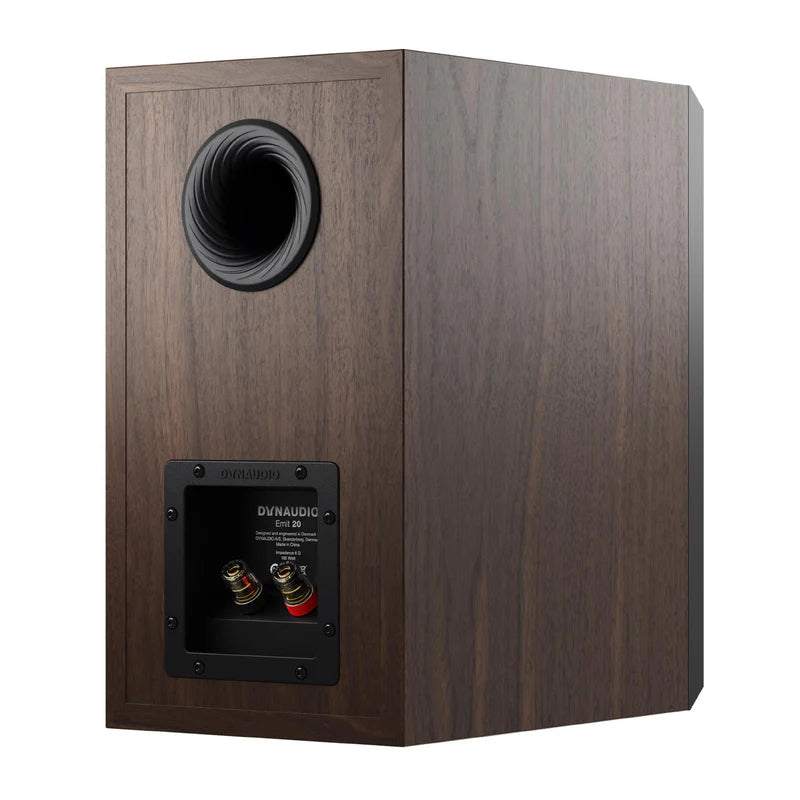

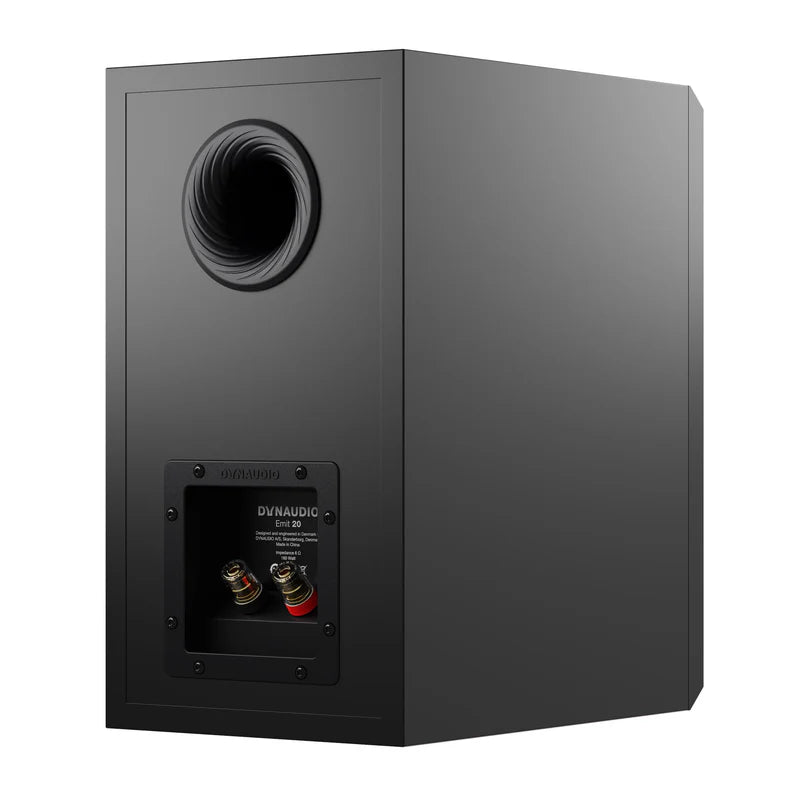

Box principle	Bass reflex rear double flared port
Crossover	2-way
Crossover frequency	3800 Hz
Crossover topology	1ST order tweeter / 2nd order woofer
Midrange/Woofer	18 cm MSP
Tweeter	Cerotar soft dome with Hexis
Weight	10.32 kg / 22.8 lb
Dimensions (W x H x D)	\n \n 205,1 X 370 X 311,5 mm \n 8.1 X 14.6 X 12.3 in \n \n
Dimensions with feet/grille (W x H x D):	\n \n 205,1 X 370 X 324,5 mm \n 8.1 X 14.6 X 12.8 in \n \n
