BOSE SUB1 POWERED BASS MODULE

Name: BOSE SUB1 POWERED BASS MODULE
Brand: Cinesound
Price: 134786.00 INR
Availability: InStock

Rs. 134,786.00

Sale Sold out

Taxes included.

DESCRIPTION

BOSE SUB1 POWERED BASS MODULE

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz. Its unique 7” × 13” high-excursion RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub2 subwoofer, Sub1 is the more compact subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub1 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub1, you get a subwoofer that goes virtually anywhere and effortlessly fills out your sound.

FEATURES

Add powerful bass to your portable PA system with low-end range down to 40 Hz
Go from vehicle to venue easily with a slim design featuring a unique 7” × 13” high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

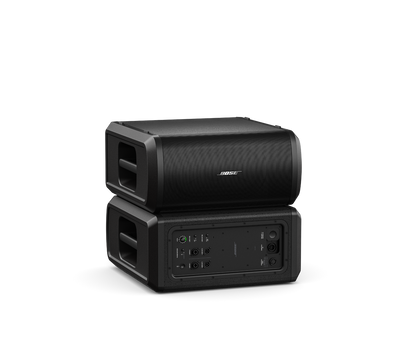

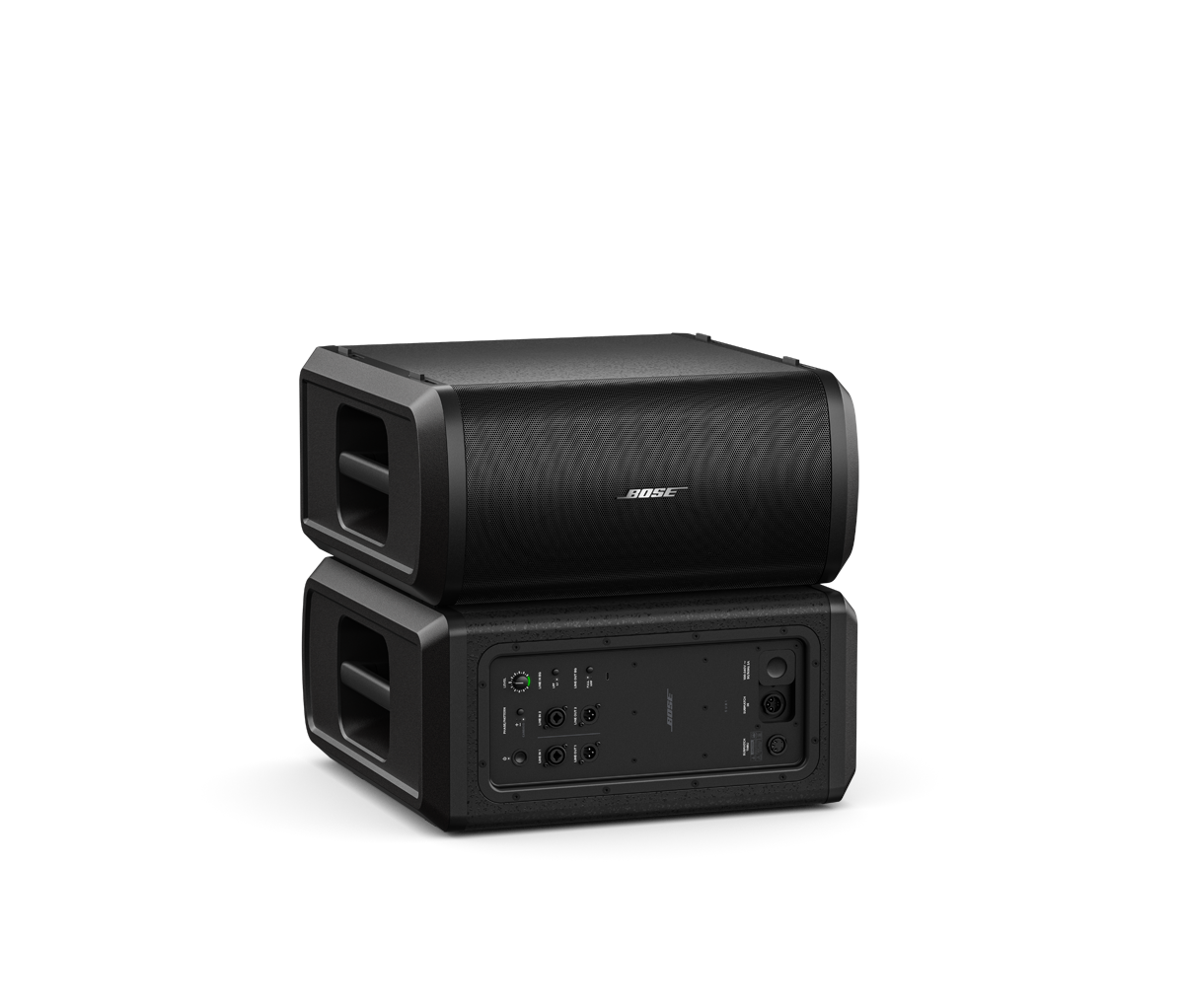

Stack multiple Sub1 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback

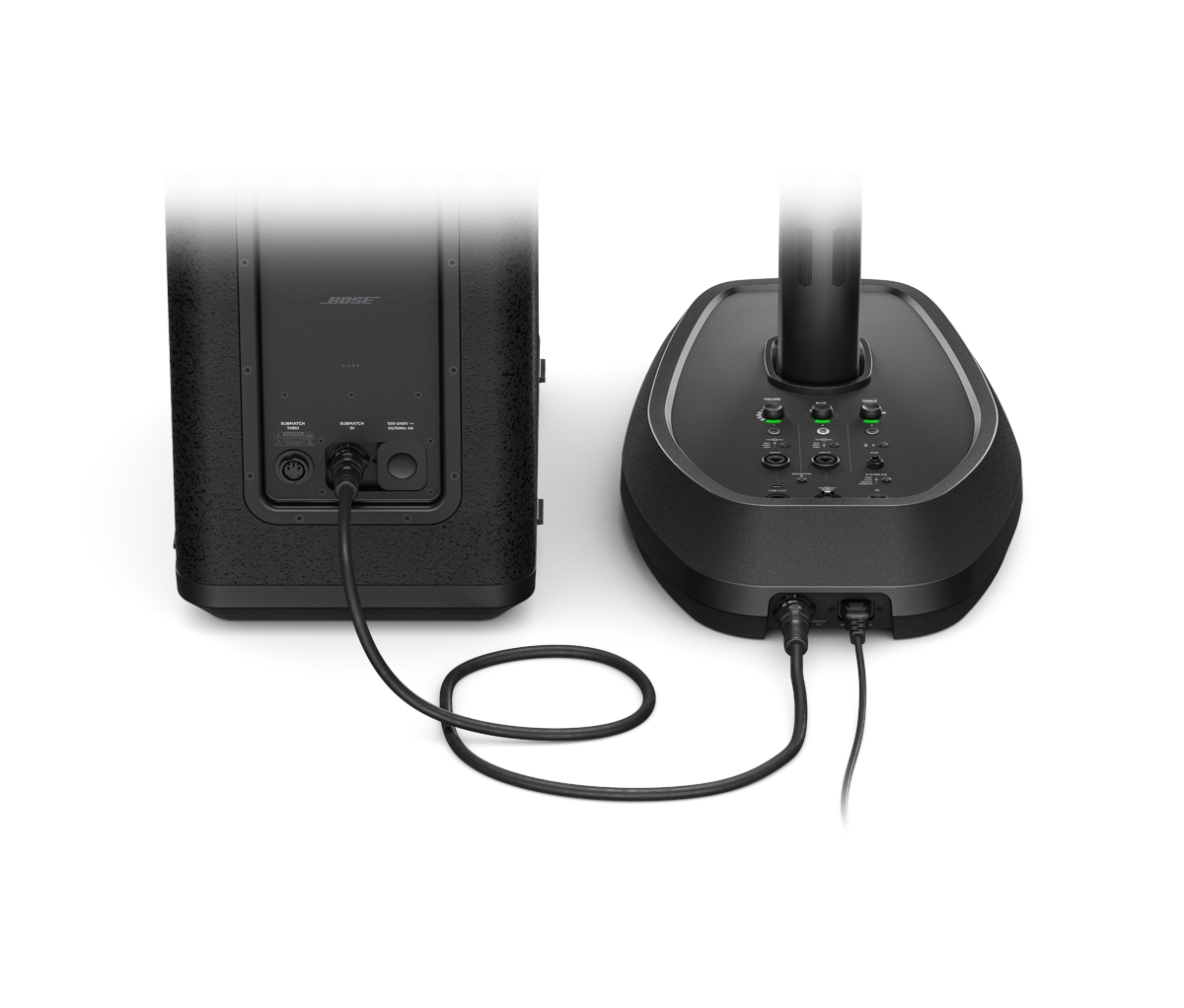

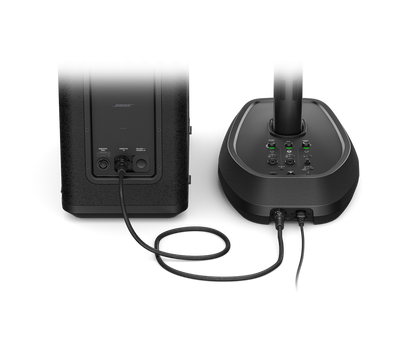

Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable
Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more

SPECIFICATIONS

System Performance

Model Name	Sub1
System Type	Self-powered bass module
Frequency Response (–3 dB) 1	40 Hz to 180 Hz
Frequency Range (–10 dB)	32 Hz to 250 Hz
Nominal Vertical Coverage Pattern	0°
Nominal Horizontal Coverage Pattern	Omnidirectional (with –10 dB rear rejection in Cardioid mode)
Calculated Maximum SPL @ 1 m, continuous 2	118.6 dB
Calculated Maximum SPL @ 1 m, peak 2	124.6 dB
Crossover	200 Hz

Transducers

Low Frequency	1 × RaceTrack low-frequency driver 7" × 13"
Low Frequency Voice Coil Size	2"
Driver Protection	Dynamic limiting

Amplification

Type	Class D
Low Frequency Amplifier Channel	480 W
Cooling	Convection cooling

Onboard Mixer

Channels	Two
Channel 1 & 2 Input: Audio Type	Combination XLR or 1/4" TRS connector (mic/instrument/line)
Channel 1 & 2 Input: Impedance	100 KΩ
Channel 1 & 2 Input: Channel Gain	+10 dB to +45 dB; from input to driver, controlled by volume contro
Channel 1 & 2 Input: Max Input Signal	+24 dBu
Channel 1 & 2 Output: Audio Type	XLR connector, line-level, full-frequency bandwidth
SubMatch Input: Audio Type	Bose proprietary multi-pin cable
SubMatch Thruput: Audio Type	Bose proprietary multi-pin cable
LED Indicators	Standby, Phase/Pattern selection, Input EQ selection, Output EQ selection, Sig- nal/Clip Indicator

AC Power

AC Power Input	100–240 VAC (±20%, 50/60 Hz)
Input: Electrical Type	IEC, SubMatch
Initial turn on inrush current	14.9 A at 120 V; 29.3 A at 230 V
Inrush current after AC mains interruption of 5 s	5.8 A at 120 V; 32.0 A at 230 V

Enclosure

Enclosures Material	High-impact polypropylene, birch plywood
Grille Material	Powder-coated perforated steel
Product Dimensions (H × W × D)	533 × 260 × 529 mm (21.0 × 10.2 × 20.8 in)
Shipping Dimensions (H × W × D)	620 × 620 × 330 mm (24.41 × 24.41 × 12.99 in)
Net Weight ³	15.5 kg (34.1 lbs)
Shipping Weight	18.0 kg (39.6 lbs)
Included Accessories	IEC power cord, slip cover
Optional Accessories	Sub1 Roller Bag, Adjustable Speaker Pole, SubMatch Cable
