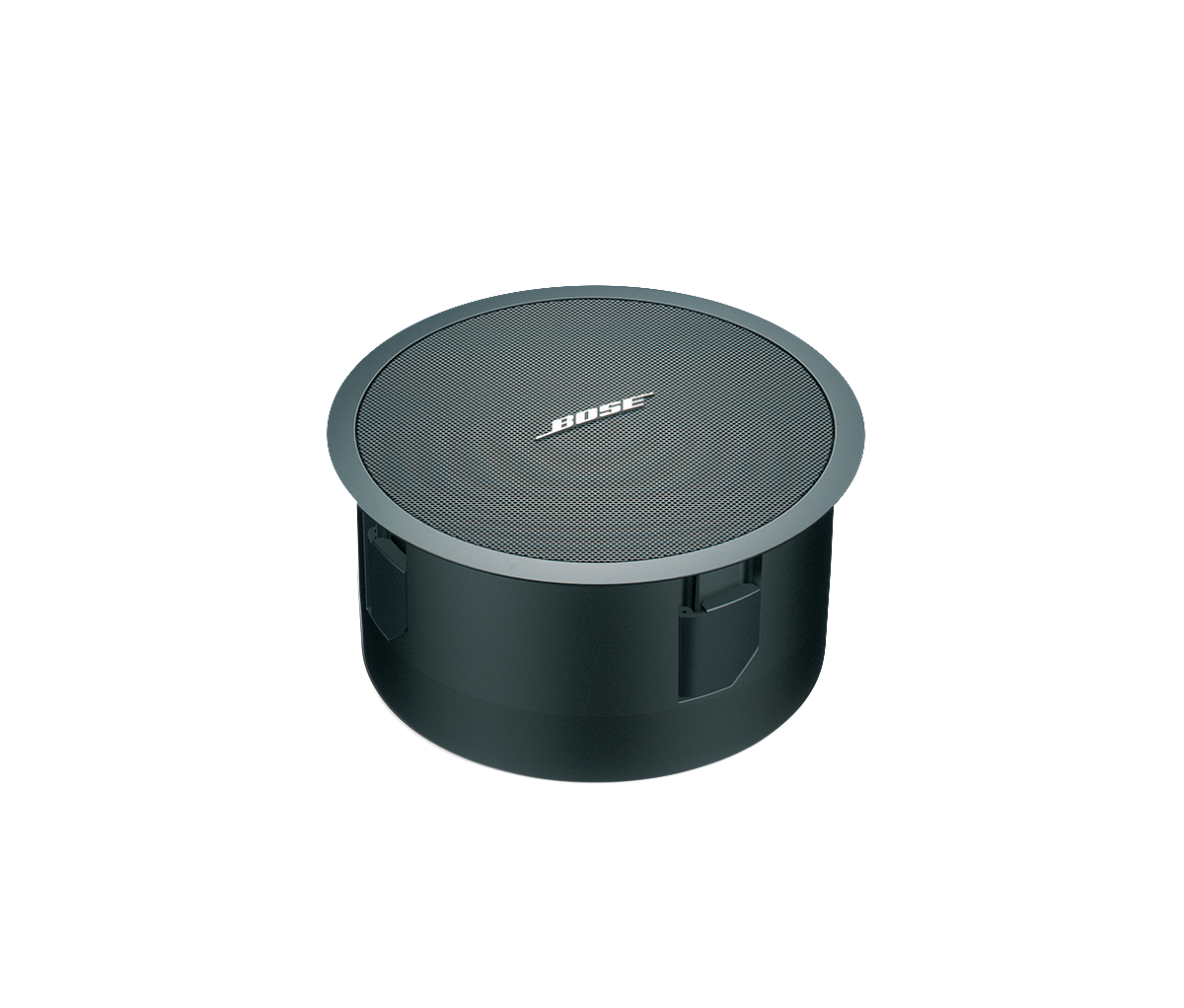

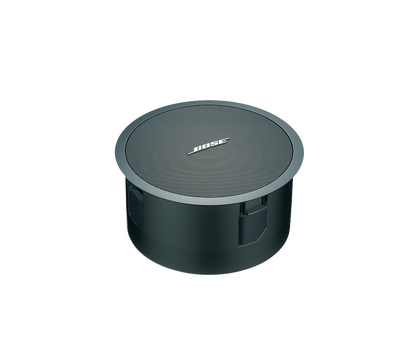

Bose Freespace 3 Flush Satellite Wht Rohs

Product Description

• The Bose Professional FreeSpace 3 flush-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. For indoor applications only.

  FEATURES

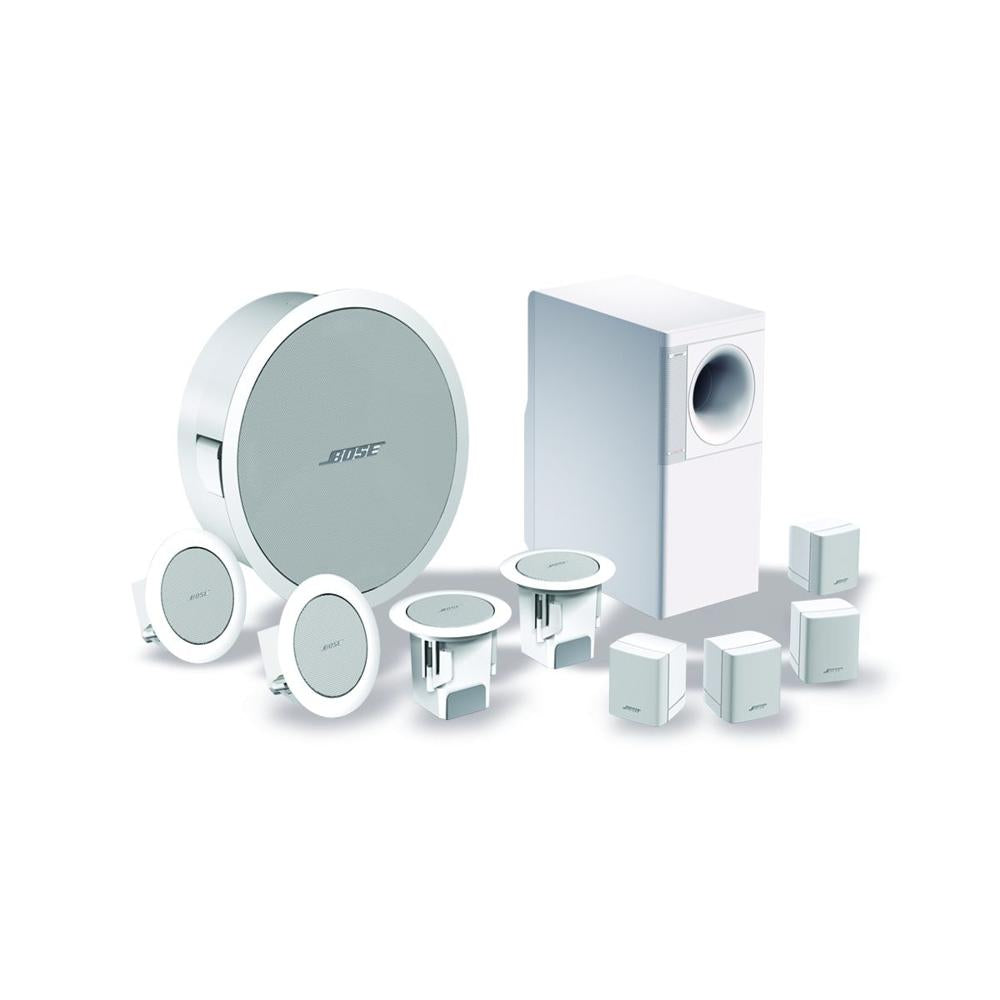

  • Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations

  • Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules

  • Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications

  • Flush-mount components are plenum rated when used with the optional plenum cover

  • Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module

  • Can be configured for stereo or mono operation

  Applications

  Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and bars
  • Lobbies and conference rooms

  SPECS

  Technical Specification

  PHYSICAL

  • Colors

  • Black, white

  • Enclosure Material

  • PC/ABS

  • Environmental

  • Indoor only

  • Grille

  • Expanded metal

  • Suspension/Mounting

  • (3) mounting arms, (1) seismic chain/safety cable attachment point

  • Product Dimensions (H×W×D)

  • 6.2 in × 4.8 in (157 mm × 123 mm), loudspeaker diameter × depth / 5.0 in (127 mm), ceiling hole diameter

  • Net Weight

  • 1.9 lb (0.9 kg)

  • Shipping Weight

  • 5.0 lb (2.3 kg)

  PERFORMANCE

  • Frequency Range (-10 dB)

  • 170 Hz – 20,000 Hz

  • Coverage, Horizontal

  • 170° conical

  • Calculated Maximum SPL @ 1 m

  • Pink noise: 95 dB continuous, 101 dB peak / IEC noise: 92 dB continuous, 108 dB peak

  • Nominal Impedance

  • 6 Ω

  • Power Handling, long-term continuous

  • 12 W

  • Power Handling, Peak

  • 48 W

  • Recommended Signal Processing

  • Recommended

  • Sensitivity (SPL/1 W at 1 m)

  • 84 dB

  • Transformer Taps, 100V

  • N/A

  • Transformer Taps, 70V

  • N/A

  • Coverage, Vertical

  • 170° conical

  TRANSDUCERS

  • Low-Frequency

  • 1 × 2.5 in (64 mm) full-range driver per satellite

  Mechanical Diagrams



  rear-view



  front-view



  side-view

  Product codes

  • 843091-0110 - pair
  • Black

  • 843091-0210 - pair
  • White
