ARCHITECT IN IC8 100V

ARCHITECT IN IC8 100V

Regular price Rs. 33,900.00
Regular price Sale price Rs. 33,900.00
Sale Sold out
Taxes included.
Quantity
  • Seen it for less? Please get in touch with us before placing an order
  • CINESOUND is Authorized Elipson Partner in India
  • Brand New Sealed unit
  • Price is inclusive of all taxes
  • Official Elipson India Warranty

DESCRIPTION

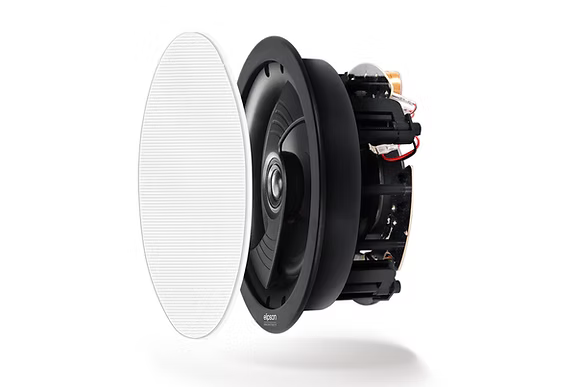

The Elipson IC8 100v represents a superior quality in-wall speaker, perfectly suited to 100 Volt sound systems or classic 8 ohm configurations. With an adjustable power range from 30 to 5 watts at 100 Volts and up to 125 watts at 8 ohms, it provides exceptional flexibility for a variety of applications, from conference rooms and schools to restaurants and stores.

Designed with the same level of excellence as other Elipson speakers, the IC8 100v features a 2-way coaxial driver incorporating a 21 cm mid/bass driver, equipped with a cellulose fiber membrane for reproduction rich and precise sound, limiting distortion even at high levels. The 25mm silk dome tweeter provides clear high frequency reproduction, and its adjustable orientation helps optimize sound dispersion throughout the listening space.

Its installation is simplified by its low installation depth (122 mm) and its quick attachment system. Comes with a white metal grille, it can be painted to match the surrounding ceiling. Versatile, it is ideal for broadcasting background music or integrating into home cinema systems, acting as a surround speaker as well as a main speaker or in a Dolby Atmos system.

In summary, the Elipson IC8 100v offers a unique combination of quality audio performance, ease of installation and versatility, meeting the highest demands of audio installations in a wide variety of environments.

FEATURES

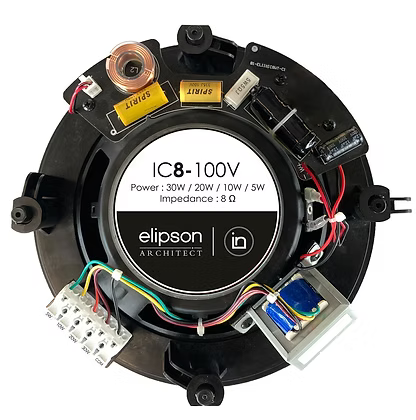

Speaker: In-ceiling speaker - 100V

Power available in 100V mode: 30W / 20W / 10W / 5W

Speaker: 2-way coaxial

Tweeter (treble): 25 mm silk dome, 35° orientation in all directions

Medium-Bass: 210 mm paper cone, rubber edge

Frequency response (±3 dB): 55 Hz - 20 kHz

Cutoff frequency: 280,000 Hz - LP 12 dB / HP 18 dB

Sensitivity: 87 dB / 1W / 1m

Cutout dimension Ø: 242 mm

Weight: 3.35 kg

DOCUMENT
TECHNICAL SHEET
USER MANUAL
CUTTING TEMPLATE
