AHUJA LXA-7600

AHUJA LXA-7600

Regular price Rs. 90,215.00
Regular price Sale price Rs. 90,215.00
Sale Sold out
Taxes included.
Quantity
  • Seen it for less? Please get in touch with us before placing an order
  • CINESOUND is Authorized AHUJA Partner in India
  • Brand New Sealed unit
  • Price is inclusive of all taxes
  • Official AHUJA India Warranty

DESCRIPTION

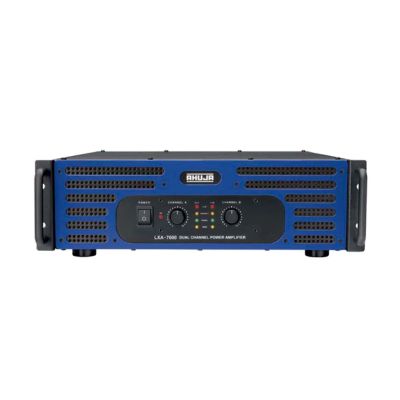

The Ahuja LXA-7600 Dual Channel Power Amplifier comes with 7600 Watts rated output. The Ahuja LXA-7600 is 800+3800 Watts per Channel Power Amplifier.

LXA-7600 Features:

  • Dual channel direct coupled power amplifier.
  • 7600 Watts rated output.
  • Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
  • 80Hz / 120Hz LPF.
  • Built-in circuit for HF protection.
  • Limiter ON/OFF switch.
  • Two selectable input sensitivities.
  • Class H operation for optimum efficiency.
  • BIS approved.

SPECIFICATIONS

Brand Ahuja
Model LXA-7600
Type Dual Channel Amplifier
Stereo/Mono 8Ω : 1600W + 1600W RMS, 4Ω : 2600W + 2600W RMS, 2Ω : 3800W + 3800W RMS
Bridged Output 8Ω : 5200W RMS, 4Ω : 7600W RMS
THD + N < 1.0%
Frequency Response (-1dB) 20-20,000Hz
LOW PASS Filter 80/120Hz @ 24dB per octave
Power Bandwidth (0.5% THD) 20-20,000Hz
Input Sensitivity 0dBu (775mV) & 4dBu (1.23V) (Selectable)
Input Impedance 10k Unbalanced, 20k Balanced
signal to Noise Ratio > 95dB
Channel Separation > 65dB at 1kHz
Damping Factor 400 : 1 (8Ω)
Slew Rate 35V/µs
Protections Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter (ON/OFF) AC: Magnetic Circuit Protector 20A; ± DC: Fuse 1 x 30A (T 30A L) for each Channel, Fuse 2×3 A (T 3A L)

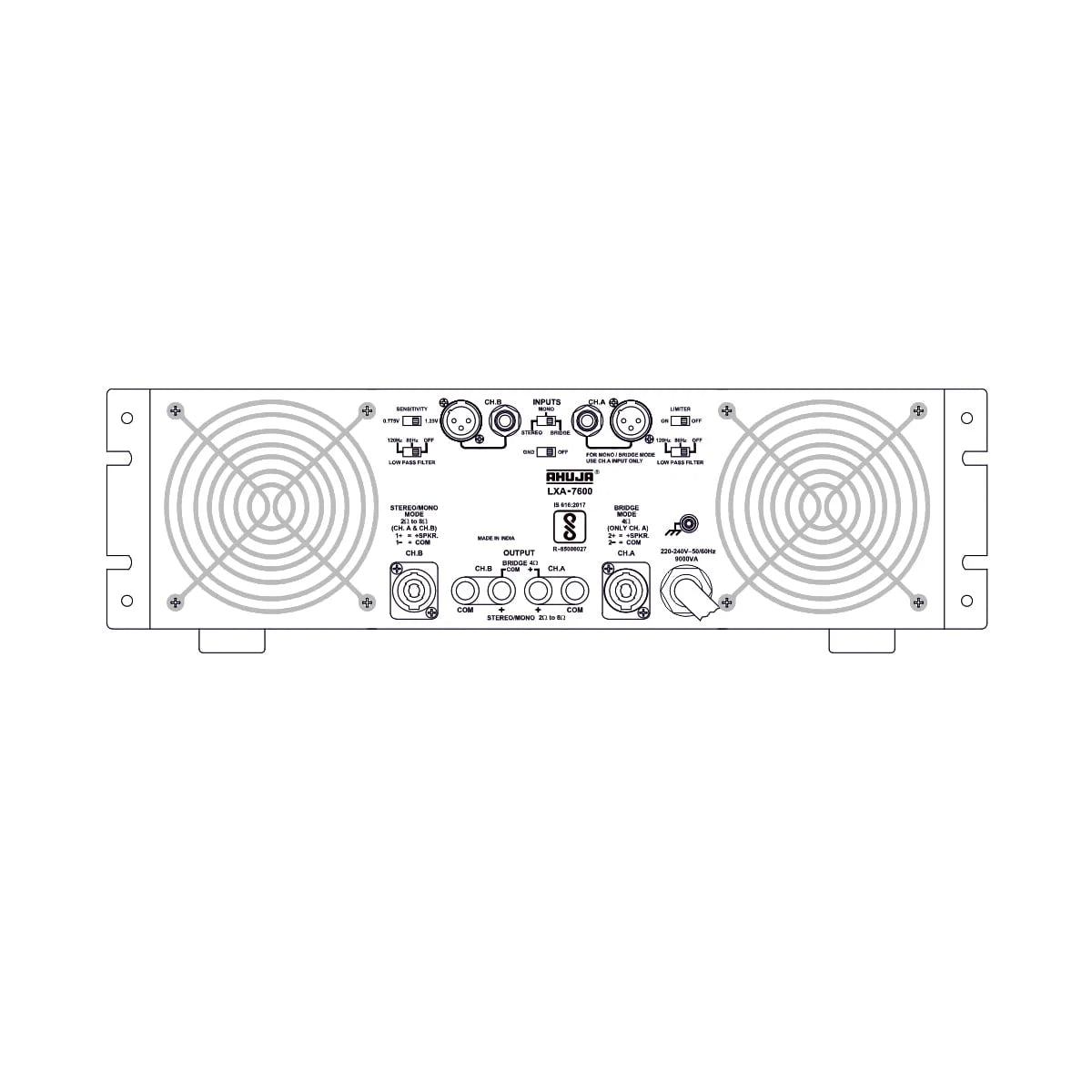

Input Connectors 2×XLR, Stereo Phone Jack 6.3mm
Output Connectors Speakon 4-Way and heavy duty Binding Post for each channel
Cooling 2×fixed Speed DC Fan and 2 × Variable Speed DC Fan with Temperature Sensing
Front Panel Controls 2×41 Step Level Attenuators
Indicators Power ON, Signal, Clip, Temperature, Protect (Ch. A & B)
Power Consumption (Rated) 9000VA @ 220-240V ~ 50/60Hz
Dimensions W482 × H153 × D605mm
Weight 39.50kg
