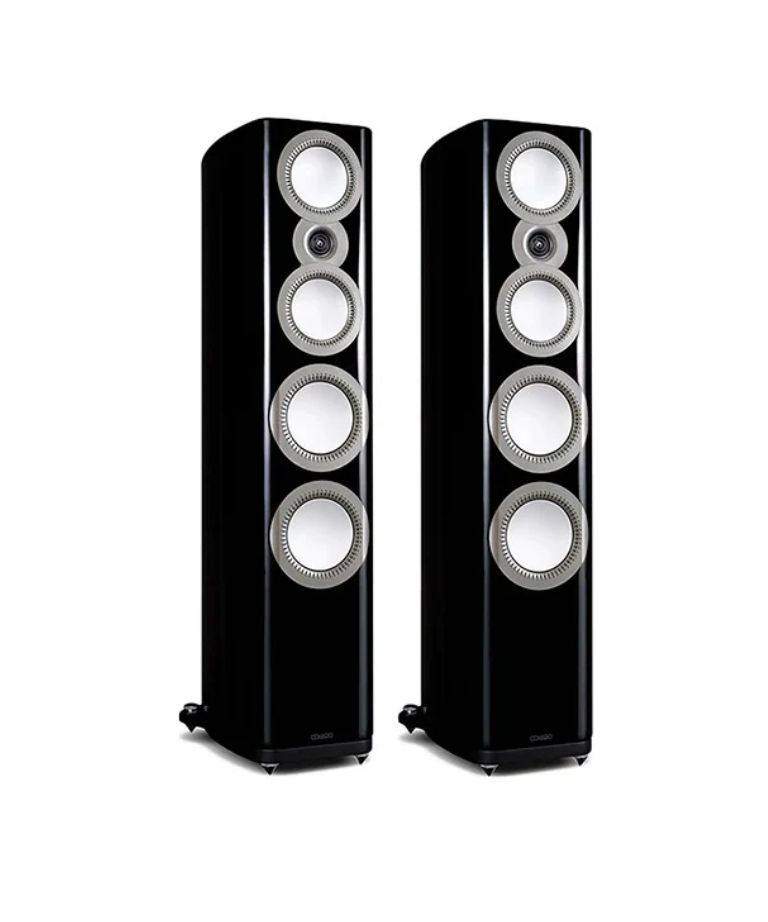

Mission ZX-5- Dual 6.5″ 3-Way Floorstanding Speakers
The ZX Series is the latest in a long line of distinguished and revered Mission loudspeakers and joins more recent Award-winning products. The ZX series represents the most technologically advanced loudspeakers in the Mission family, with a distinct ID that will complement the finest electronics and décor.
Mission ZX incorporates purpose designed bass driver cones, precision engineered motor systems, advanced treble units and more.
Key Features
- Dual 6.5″ (130mm) Aluminium cone Woofer
- Dual 5.25″ (130mm) Aluminium cone Midrange
- 1.5″ (38mm) Ring dome Tweeter
- 36Hz – 24kHz Frequency response
- 91 dB Sensitivity; 30 Hz Bass extension
- 114 dB Peak SPL; 570Hz, 2.5kHz Crossover frequency
- 30-200W Recommended amplifier power; 4/8 ohms Impedance
Specifications
|
General Description
|
3-way floorstanding speaker |
|---|---|
|
Enclosure Type
|
Bass reflex |
|
Transducer Complement
|
3-way |
|
Bass Driver
|
6.5″ (130mm) aluminium cone x 2 |
|
Midrange Driver
|
5.25″ (130mm) aluminium cone x 2 |
|
Treble Driver
|
1.5″ (38mm) ring dome |
|
AV Shield
|
No |
|
Sensitivity (2.0V @ 1m)
|
91dB |
|
Recommended Amplifier Power
|
30-200W |
|
Peak SPL
|
114dB |
|
Nominal Impedance
|
4 (8 compatible) |
|
Minimum Impedance
|
3.4 |
|
Frequency Response(+/-3dB)
|
36Hz ~ 24kHz |
|
Bass Extension(-6dB)
|
30Hz |
|
Crossover Frequency
|
570Hz, 2.5kHz |
|
Dimensions (HxWxD)
|
1155 * 265 * (400+12)mm |
|
Net Weight
|
31.2kg/pcs |
