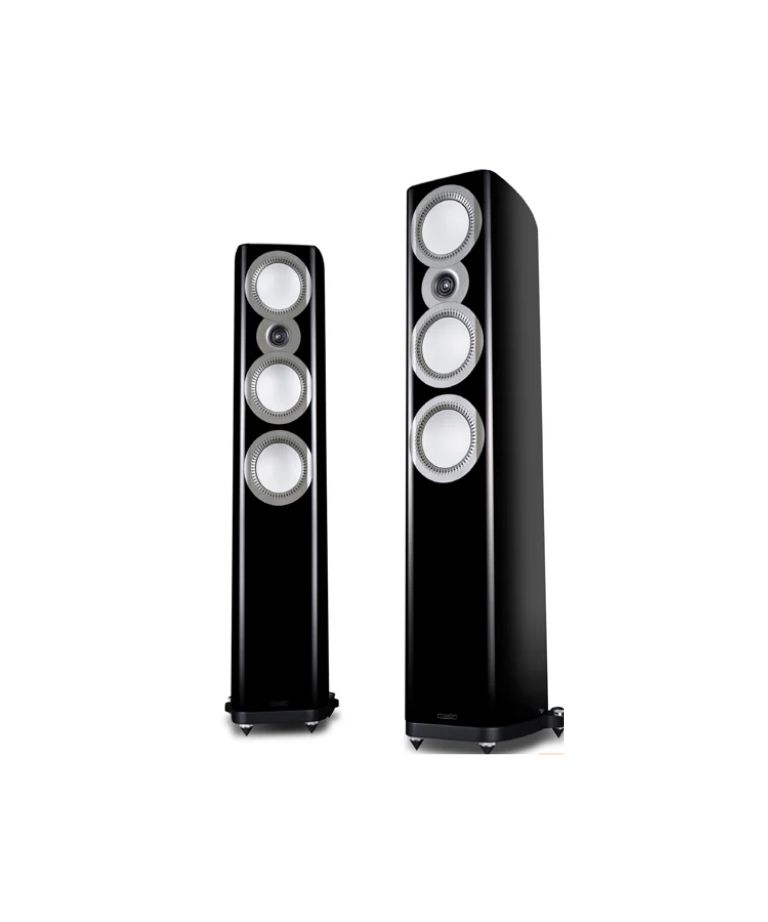

Mission ZX-4 -Dual 5.25″ 3-Way Floorstanding Speakers
The ZX Series is the latest in a long line of distinguished and revered Mission loudspeakers and joins more recent Award-winning products. The ZX series represents the most technologically advanced loudspeakers in the Mission family, with a distinct ID that will complement the finest electronics and décor.
Mission ZX incorporates purpose designed bass driver cones, precision engineered motor systems, advanced treble units and more.
Key Features
- Dual 5.25″ (130mm) Aluminium cone Woofer
- 5.25″ (130mm) Aluminium cone Midrange
- 1.5″ (38mm) Ring dome Tweeter
- 40Hz – 24kHz Frequency response
- 90 dB Sensitivity; 35Hz Bass extension
- 110 dB Peak SPL; 530Hz, 2.7kHz Crossover frequency
- 25-150W Recommended amplifier power; 4/8 ohms Impedance
Specifications
|
General Description
|
3-way floorstanding speaker |
|---|---|
|
Enclosure Type
|
Bass reflex |
|
Transducer Complement
|
3-way |
|
Bass Driver
|
5.25″ (130mm) aluminium cone x 2 |
|
Midrange Driver
|
5.25″ (130mm) aluminium cone |
|
Treble Driver
|
1.5″ (38mm) ring dome |
|
AV Shield
|
No |
|
Sensitivity (2.0V @ 1m)
|
90dB |
|
Recommended Amplifier Power
|
25-150W |
|
Peak SPL
|
110dB |
|
Nominal Impedance
|
4 (8 compatible) |
|
Minimum Impedance
|
3.4 |
|
Frequency Response(+/-3dB)
|
40Hz ~ 24kHz |
|
Bass Extension(-6dB)
|
35Hz |
|
Crossover Frequency
|
530Hz, 2.7kHz |
|
Dimensions (HxWxD)
|
1075 * 240 * (350+12)mm |
|
Net Weight
|
24.6kg/pcs |
