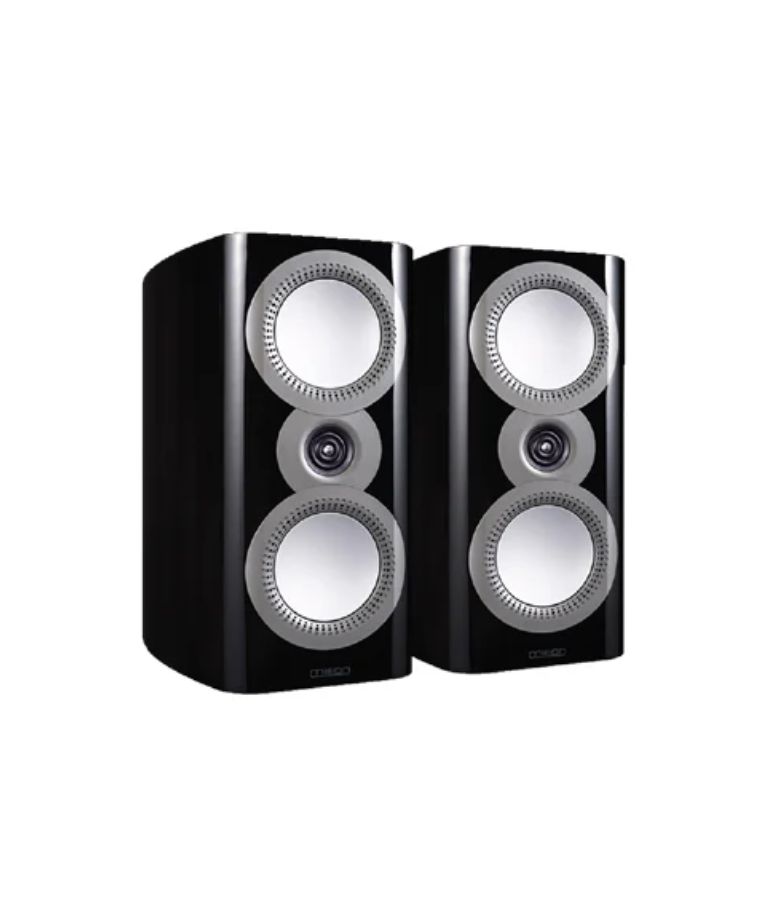

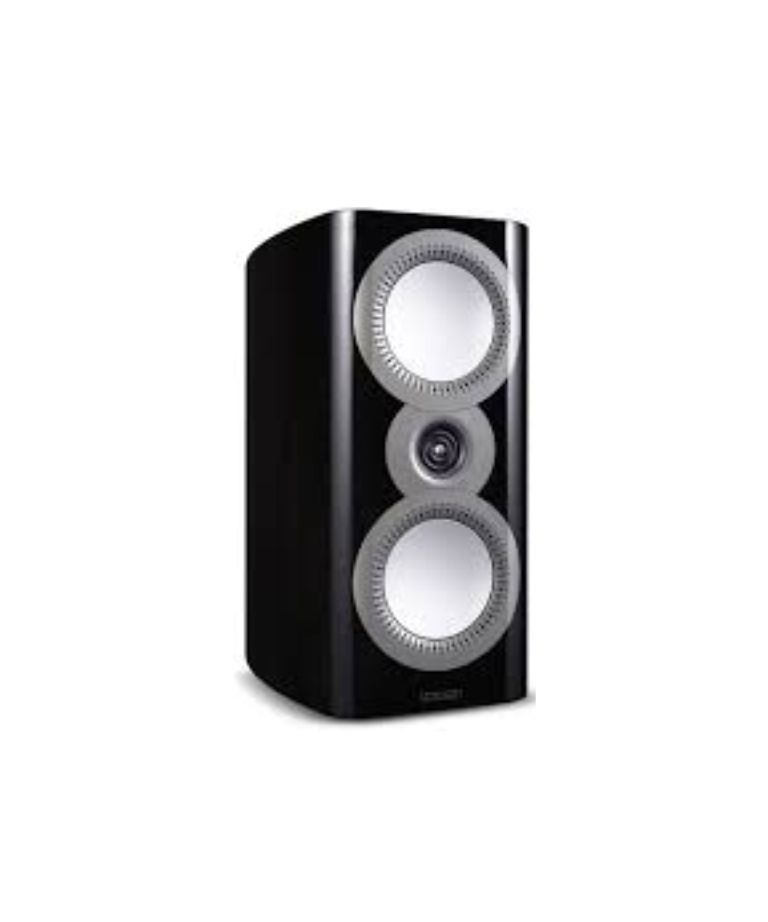

Mission ZX-2 Dual- 5.25″ Bookshelf / Surround Speakers
The ZX Series is the latest in a long line of distinguished and revered Mission loudspeakers and joins more recent Award-winning products. The ZX series represents the most technologically advanced loudspeakers in the Mission family, with a distinct ID that will complement the finest electronics and décor.
Mission ZX incorporates purpose designed bass driver cones, precision engineered motor systems, advanced treble units and more.
Key Features
- Dual 5.25″ (130mm) Aluminium cone Woofer
- 1.5″ (38mm) Ring dome Tweeter
- 45Hz – 24kHz Frequency response
- 89 dB Sensitivity; 40 Hz Bass extension
- 110 dB Peak SPL; 2.4 kHz Crossover frequency
- 25-150W Recommended amplifier power; 8 ohm Impedance
Specifications
|
General Description
|
2-way bookshelf speaker |
|---|---|
|
Enclosure type
|
Bass reflex |
|
Transducer Complement
|
2-way |
|
Bass Driver
|
5.25″ (130mm) aluminium cone x 2 |
|
Treble Driver
|
1.5″ (38mm) ring dome |
|
AV Shield
|
No |
|
Sensitivity (2.0V @ 1m)
|
89dB |
|
Recommended Amplifier Power
|
25-150W |
|
Peak SPL
|
110dB |
|
Nominal Impedance
|
8 compatible |
|
Minimum Impedance
|
3.8 |
|
Frequency Response(+/-3dB)
|
45Hz ~ 24kHz |
|
Bass Extension(-6dB)
|
40Hz |
|
Crossover Frequency
|
2.4kHz |
|
Dimensions (HxWxD)
|
420 * 240 * (350+12)mm |
|
Net Weight
|
9.4kg/pcs |
