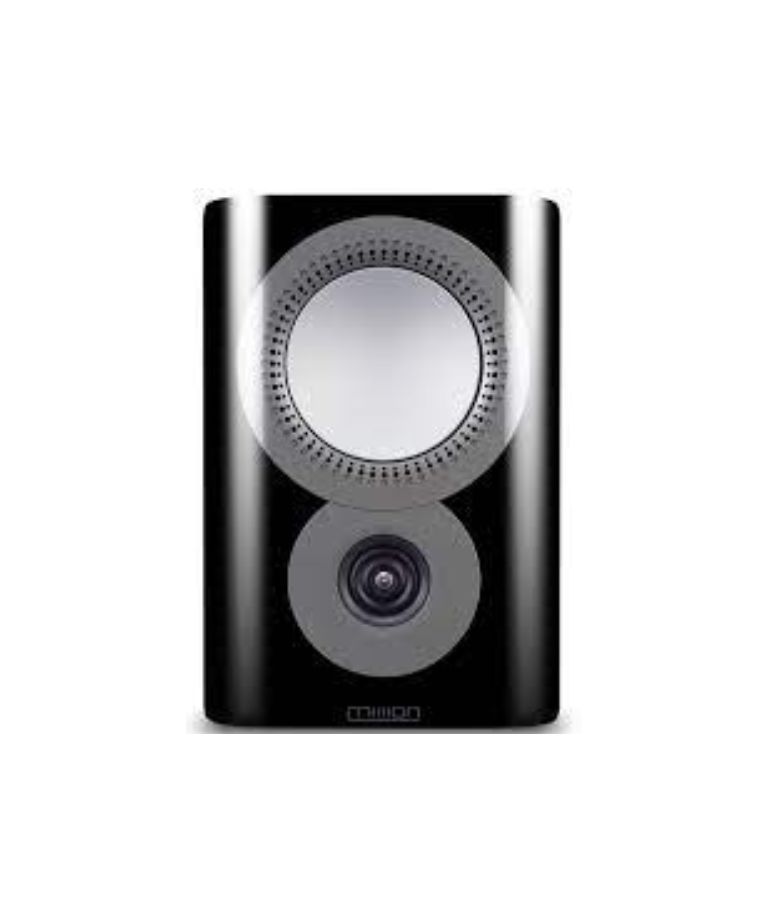

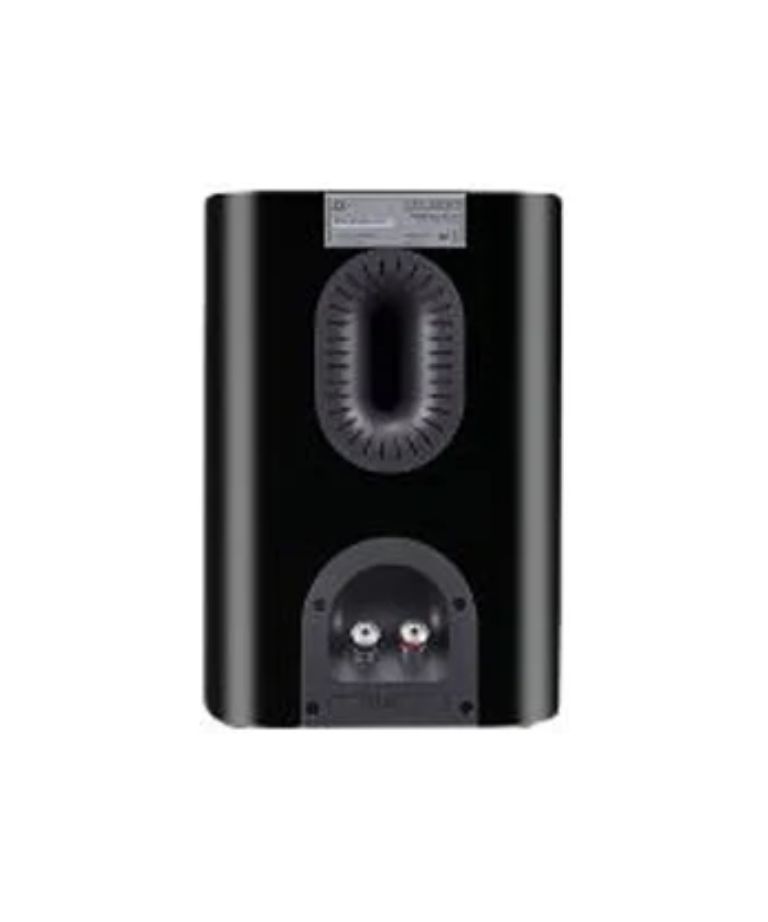

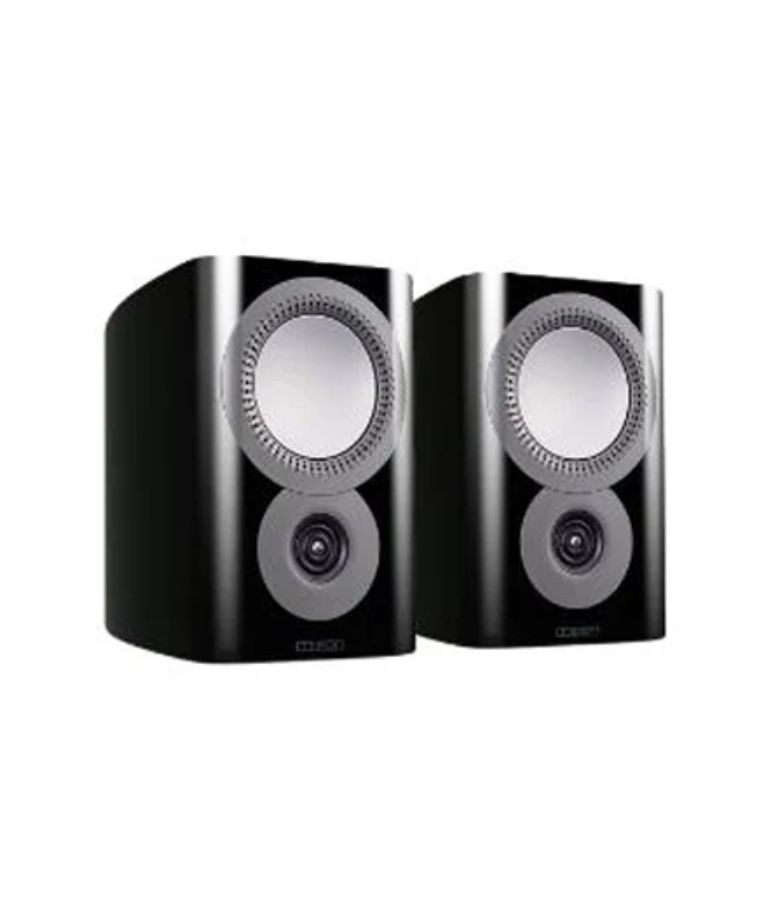

Mission ZX-1- 5.25″ Bookshelf / Surround Speakers
The ZX Series is the latest in a long line of distinguished and revered Mission loudspeakers and joins more recent Award-winning products. The ZX series represents the most technologically advanced loudspeakers in the Mission family, with a distinct ID that will complement the finest electronics and décor.
Mission ZX incorporates purpose designed bass driver cones, precision engineered motor systems, advanced treble units and more.
Key Features
- 5.25″ (130mm) Aluminium cone Woofer
- 1.5″ (38mm) Ring dome Tweeter
- 52Hz – 24kHz Frequency response
- 88 dB Sensitivity; 46 Hz Bass extension
- 108 dB Peak SPL; 2.6 kHz Crossover frequency
- 25-100W Recommended amplifier power; 8 ohm Impedance
Specifications
|
General Description
|
2-way bookshelf speaker |
|---|---|
|
Enclosure type
|
Bass reflex |
|
Transducer Complement
|
2-way |
|
Bass Driver
|
5.25″ (130mm) aluminium cone |
|
Treble Driver
|
1.5″ (38mm) ring dome |
|
AV Shield
|
No |
|
Sensitivity (2.0V @ 1m)
|
88dB |
|
Recommended Amplifier Power
|
25-100W |
|
Peak SPL
|
110dB |
|
Nominal Impedance
|
8 compatible |
|
Minimum Impedance
|
3.5 |
|
Frequency Response(+/-3dB)
|
52Hz ~ 24kHz |
|
Bass Extension(-6dB)
|
46Hz |
|
Crossover Frequency
|
2.6kHz |
|
Dimensions (HxWxD)
|
300 * 240 * (350+12)mm |
|
Net Weight
|
7.6kg/pcs |
