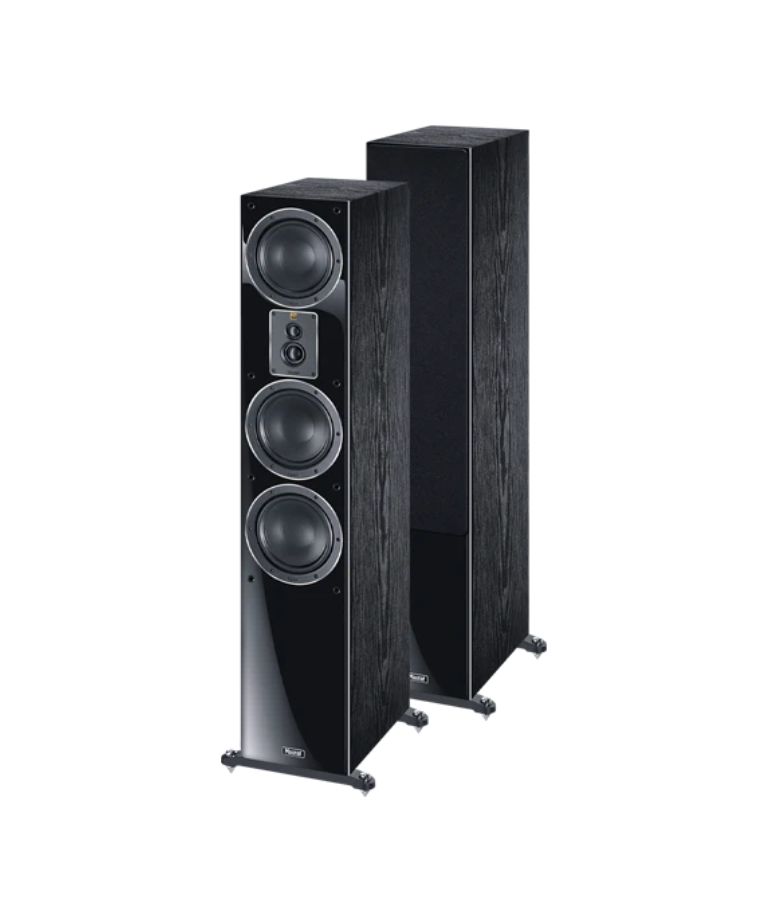

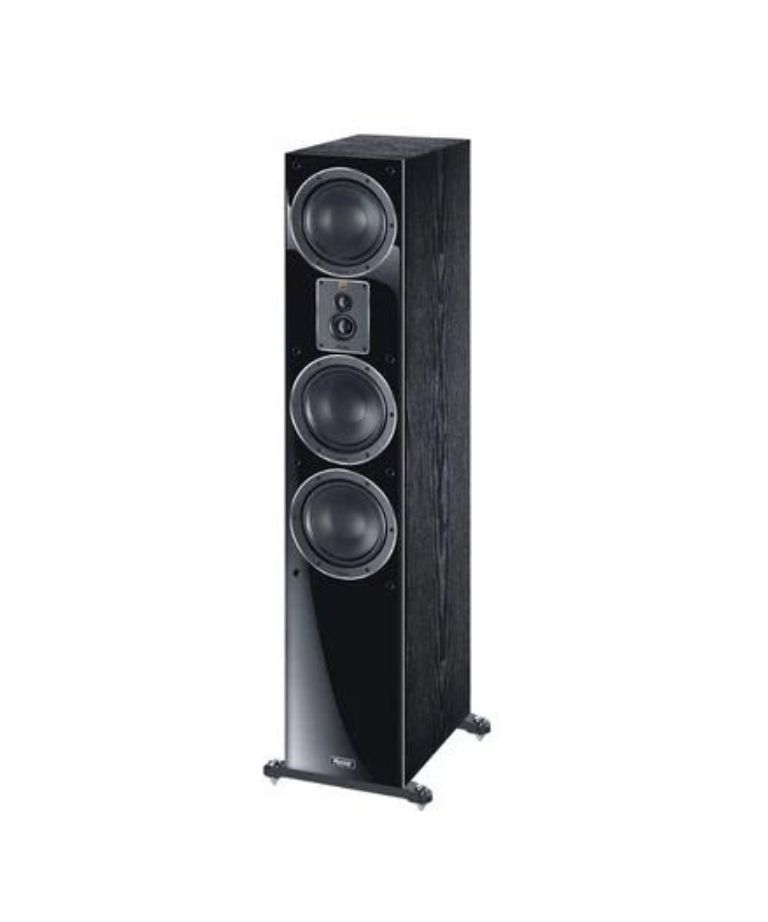

he Signature 507 is just as slim as the 505, but a bit higher at 1030 mm. The increased size is due to the dual woofer used, with the result that the 507 has a 170 mm bass-midrange unit as well as woofers of the same size, enabling it to reproduce correspondingly lower frequencies. It does, of course, also have the Hi-Res certified dual tweeter module with 2 fmax domes. The front panel with its integrated wave guides also optimizes the dispersion characteristics. Like all the speakers in the Signature 500 range, the sturdiest possible connection terminals are used, which allows the best cables to be used, as well as facilitating bi-wiring or bi-amping operation. It goes without saying that the 507 is suitable both as a stereo speaker and as a front channel in a home cinema system
Features:
- Hi-Res certified dual tweeter module with two fmax domes
- 4-way speaker with bass reflex technology
- Klippel-optimized bass-midrange unit and subwoofer
- Ventilated voice-coil unit for maximum resilience and dynamics
- Spikes for secure positioning and acoustic decoupling
SIGNATURE 500 – ENTRY INTO THE SIGNATURE CLASS
The Magnat Signature 500 is the entry level to the world of audiophile hi-fi. Here, elaborate chassis with the latest technologies are combined with production quality that is second to none in this class. And all of this with a system – because, from the audiophile stereo set-up to the ambitious, perfectly sounding home cinema with active subwoofer, everything can be combined entirely to your liking in the Signature entry-level class.
CAN BE COMBINED IN A VARIETY OF WAYS
The Signature 500 is available in various versions. This means that fans of pure stereo playback can combine different setups, while home cinema enthusiasts can also choose the perfect combination.
EXCEPTIONAL PRODUCTION QUALITY

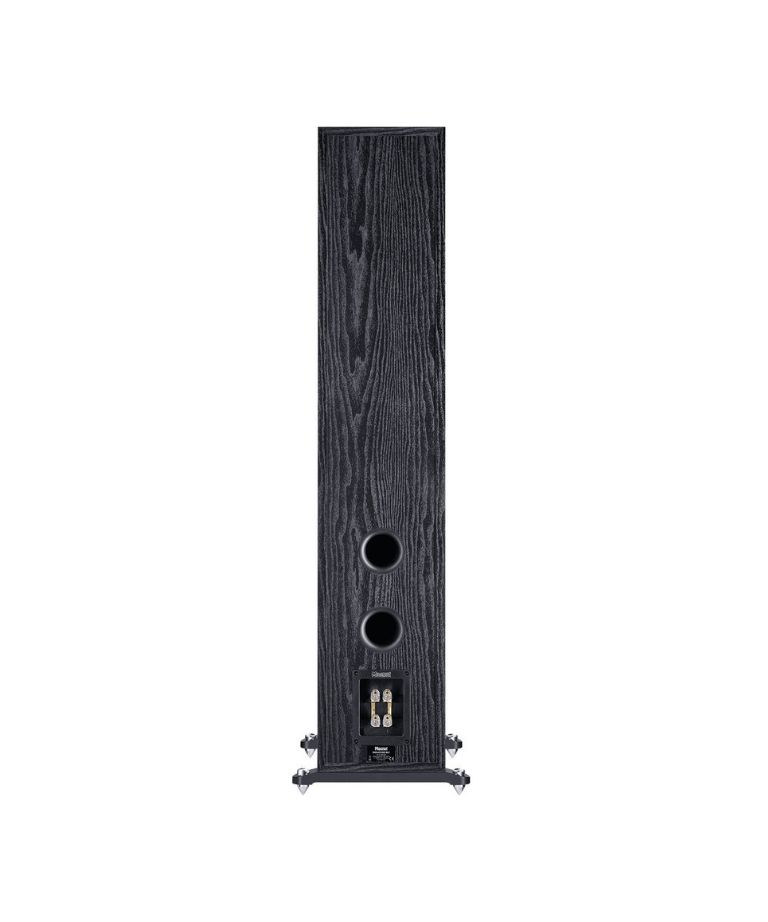

Amply dimensioned terminals not only allow use of the highest-quality cables, they also facilitate bi-wiring and bi-amping, i.e. the use of different cables or amplifiers for bass and treble ranges.
Specifications:
SIGNATURE 507 | 4 way, double bass, bass reflex |
DRIVERS | 2 x 6.5“ woofer, 6.5” midrange, 1.2” dome-tweeter, 0.75” super-tweeter |
POWER HANDLING (RMS/MAX) | 200 / 350 watts |
IMPEDANCE | 4 – 8 ohms |
FREQUENCY RESPONSE | 23 – 53000 Hz |
CROSSOVER FREQUENCIES | 400 Hz/2800 Hz/17500 Hz |
RECOMMENDED AMPLIFIER OUTPUT | > 30 watts |
SENSITIVITY | 92 dB |
CABINET SURFACE | Front: Piano black / Cabinet: Ash decor black |
Front: Anthracite satin / Cabinet: Ash decor mocca | |
DIMENSIONS (WxHxD) | Cabinet: 205 x 1030 x 332 mm |
Cabinet incl. feet and terminal: 286 x 1070 x 332 mm | |
WEIGHT | 18.8 kg |
