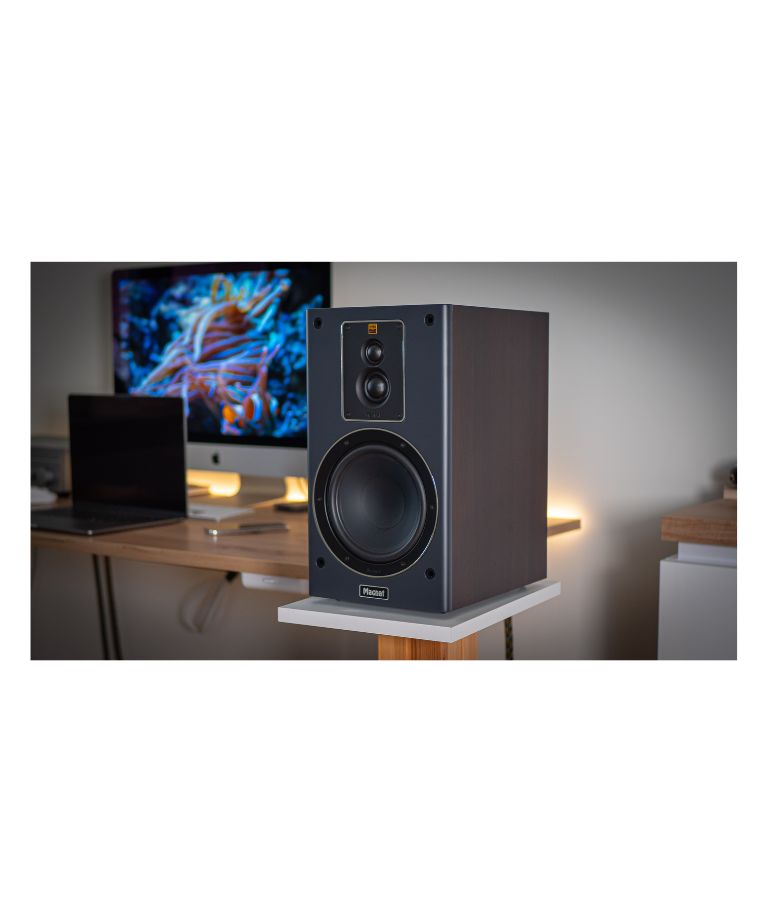

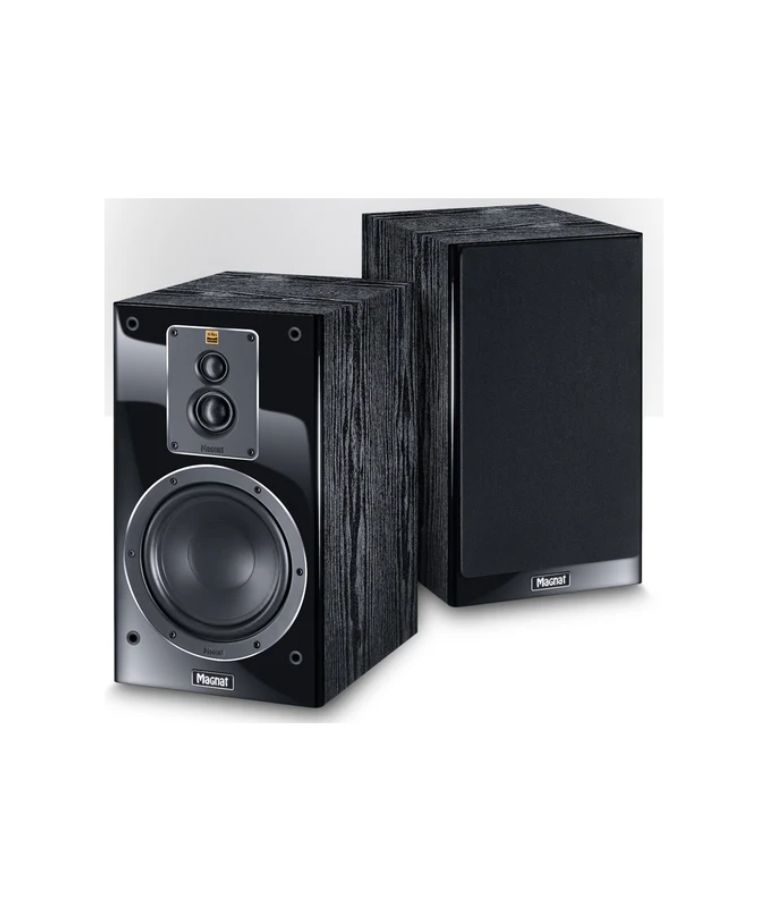

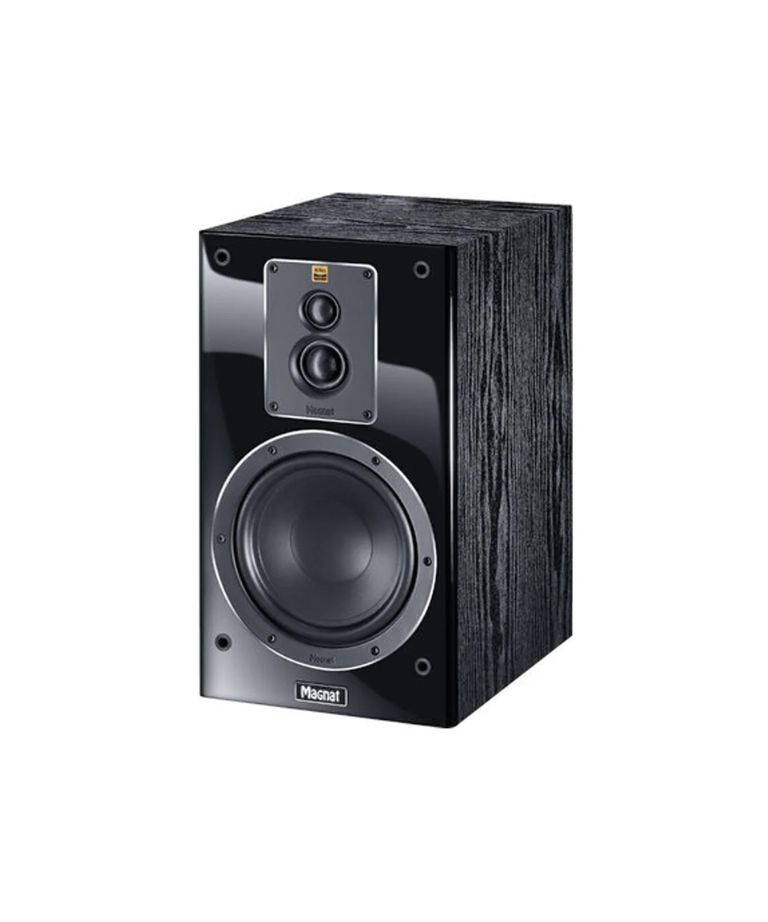

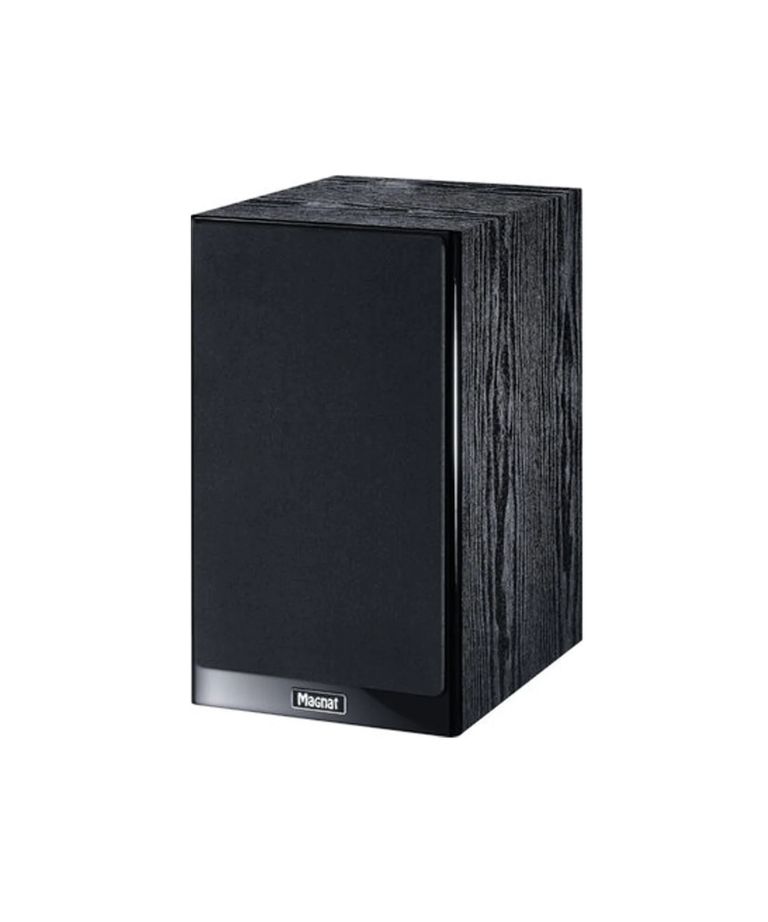

The Signature 503 is, as a shelf-top speaker, the most compact representative of the new 500 range. As a three-way system, it combines the hi-res dual tweeter module with a 17 cm bass-midrange unit. It unites all this in a footprint smaller than an A4 sheet of paper and a height of 365 mm. The sturdy MDF housing is available in two elegant finishes: black ash or mocca. It is just as practical as a compact stereo solution as it is when using it as a surround sound speaker in a home cinema set-up. Thanks to identical components like the front panel systems, it delivers an absolutely homogeneous soundscape. The Signature 503 is the best proof that perfect sound does not necessarily require huge speakers.

Features:
  • Hi-Res certified dual tweeter module with two fmax domes
  • Three-way speaker with bass reflex technology
  • Klippel-optimized bass-midrange unit
  • Ventilated voice-coil unit for maximum resilience and dynamics

SIGNATURE 500 – ENTRY INTO THE SIGNATURE CLASS
The Magnat Signature 500 is the entry level to the world of audiophile hi-fi. Here, elaborate chassis with the latest technologies are combined with production quality that is second to none in this class. And all of this with a system – because, from the audiophile stereo set-up to the ambitious, perfectly sounding home cinema with active subwoofer, everything can be combined entirely to your liking in the Signature entry-level class.

ELABORATE CHASSIS TECHNOLOGY

The heart of the fabulous high-frequency reproduction is our new hi-res module with two, yes two fmax tweeters.

CAN BE COMBINED IN A VARIETY OF WAYS
The Signature 500 is available in various versions. This means that fans of pure stereo playback can combine different setups, while home cinema enthusiasts can also choose the perfect combination.

EXCEPTIONAL PRODUCTION QUALITY
Amply dimensioned terminals not only allow use of the highest-quality cables, they also facilitate bi-wiring and bi-amping, i.e. the use of different cables or amplifiers for bass and treble ranges.

 Specifications:

PRINCIPLE 3 way, dual 6.5″ woofer-midrange, bass reflex
DRIVERS
1.2″ dome-tweeter 0.75″ super-tweeter 2 x 6.5“ woofer-midrange
POWER HANDLING (RMS/MAX) 110 / 180 watts
IMPEDANCE 4 – 8 ohms
FREQUENCY RESPONSE 32 – 53000 Hz
CROSSOVER FREQUENCIES 2600 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT > 20 watts
SENSITIVITY 91 dB
CABINET SURFACE
Front: Piano black / Cabinet: Ash decor black
Front: Anthracite satin / Cabinet: Ash decor mocca
DIMENSIONS (WxHxD) 550 x 205 x 282 mm
WEIGHT 9.1 kg
