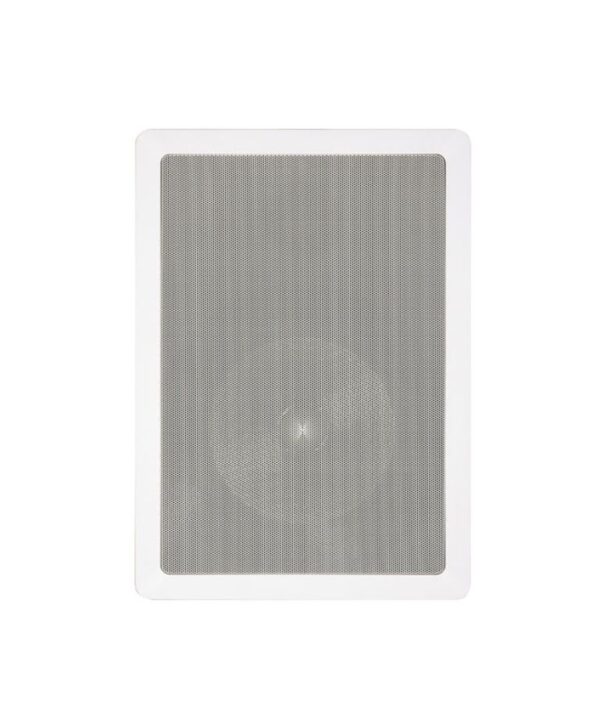

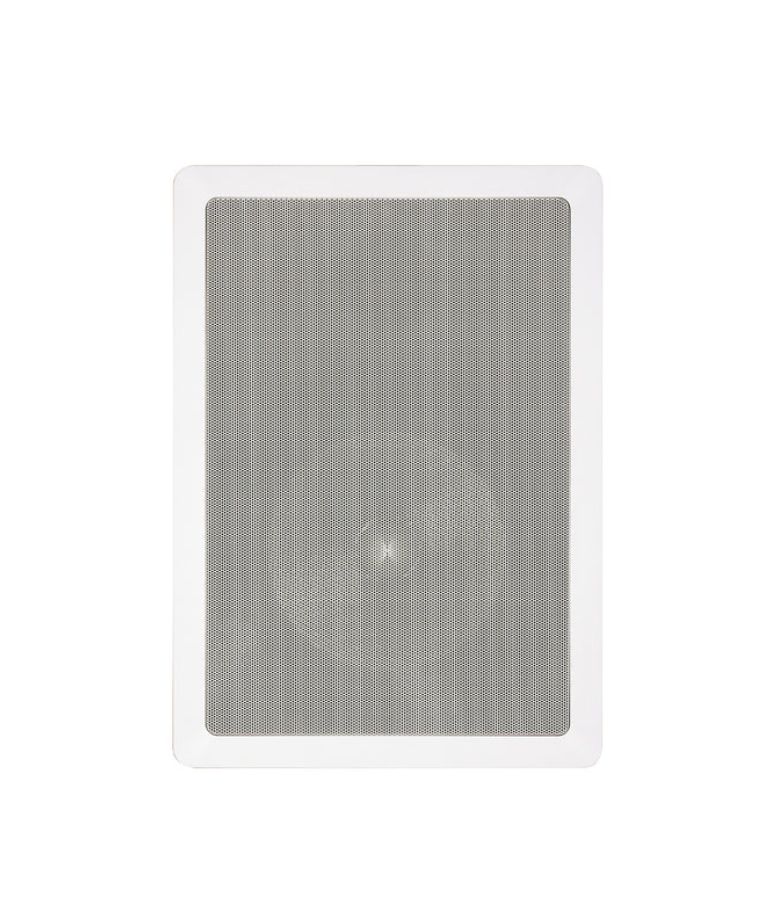

Magnat Interior IW 810 – 2-Way Recessed In-Wall Speaker
Interior IW 810
2-WAY RECESSED SPEAKER
- Full, dynamic sound of a classy 2-way system
- High-quality crossover with phase and amplitude correction
- 25 mm aluminium tweeters with a neodymium driver and adjustable dispersion characteristics
- Specially developed securing system with clamping mechanism for easy fitting
- 200 mm carbon/fibreglass woofer for tight bass reproduction
2-way recessed speaker

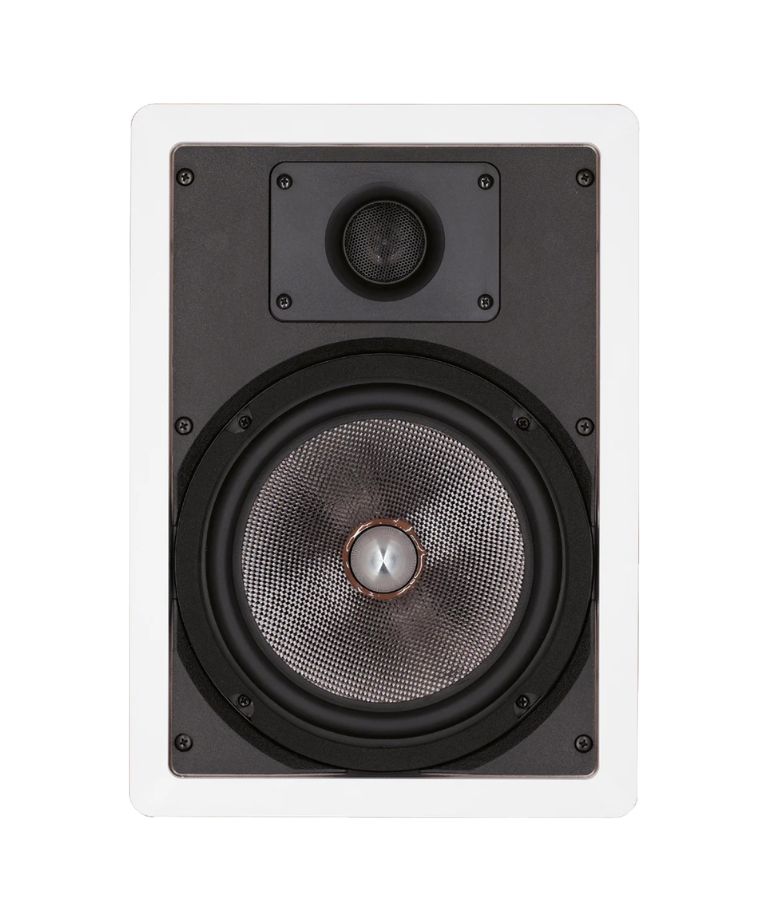

The IW 810 is the larger of two strong-sounding built-in loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound.
A 25 mm fabric dome tweeter – which may be adjusted horizontally and vertically – has been fitted into the front. Which means that the emitted sound may be perfected to suit even very different room conditions. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.
Powerful drive and convenient mounting

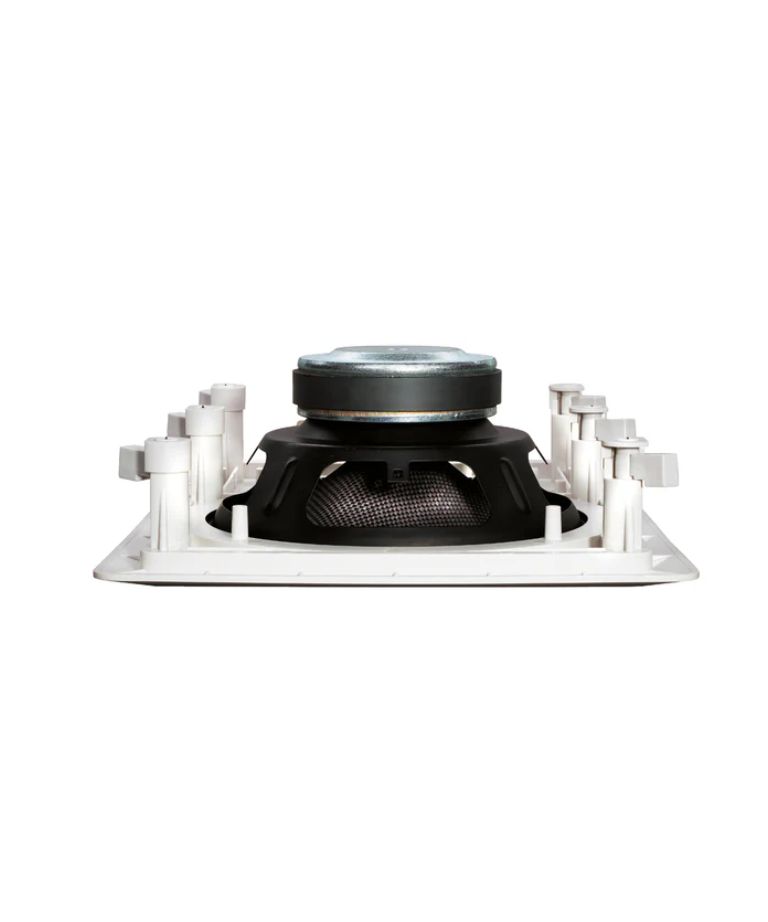

Powerful drive of the carbon-fibreglass membrane via a well-dimensioned ferrite magnet is a must, of course. The easy-to-use clamping mechanism for the Interior in-wall speaker is connected to the frame.
Specifications
PRINCIPLE
|
2-way in-wall/in-ceiling loudspeaker |
---|---|
DRIVERS
|
200 mm woofer 1″ tweeter |
POWER HANDLING (RMS/MAX.)
|
100 / 180 watts |
SENSITIVITY (2.8V/1M)
|
91 dB |
IMPEDANCE
|
4 – 8 Ohms |
FREQUENCY RESPONSE
|
32 – 32000 Hz |
CROSSOVER FREQUENCIES
|
3500 Hz |
RECOMMENDED AMPLIFIER OUTPUT
|
30 – 180 Watts |
MOUNTING DEPTH
|
90 mm |
OUTER DIMENSIONS (WXH)
|
255 x 358 mm |
CUTTING OUT (WXH)
|
224 x 335 mm |
