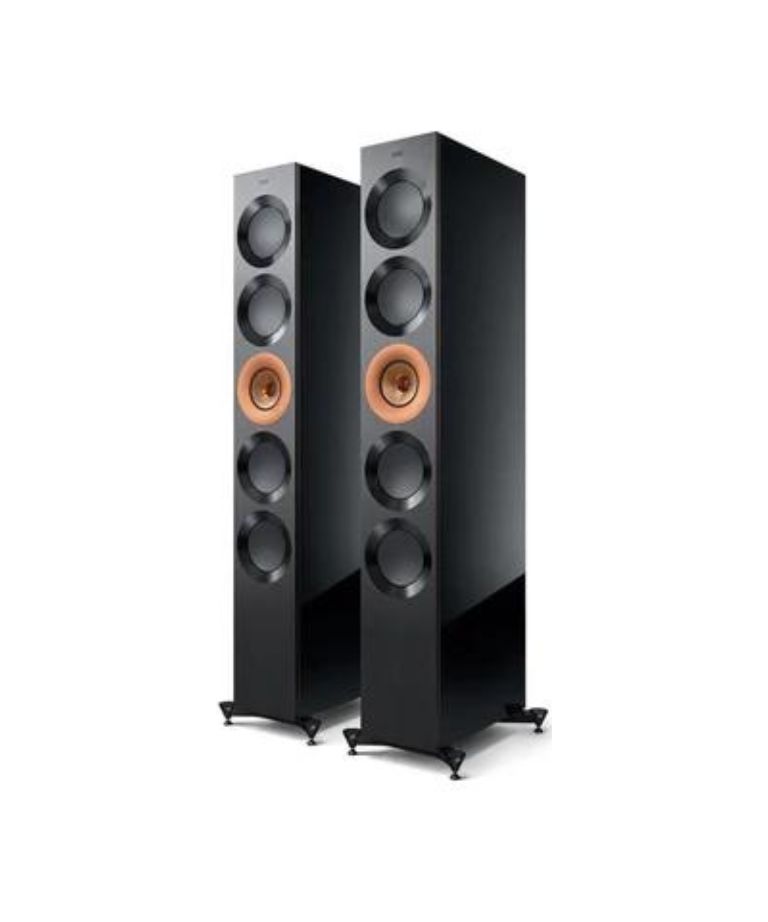

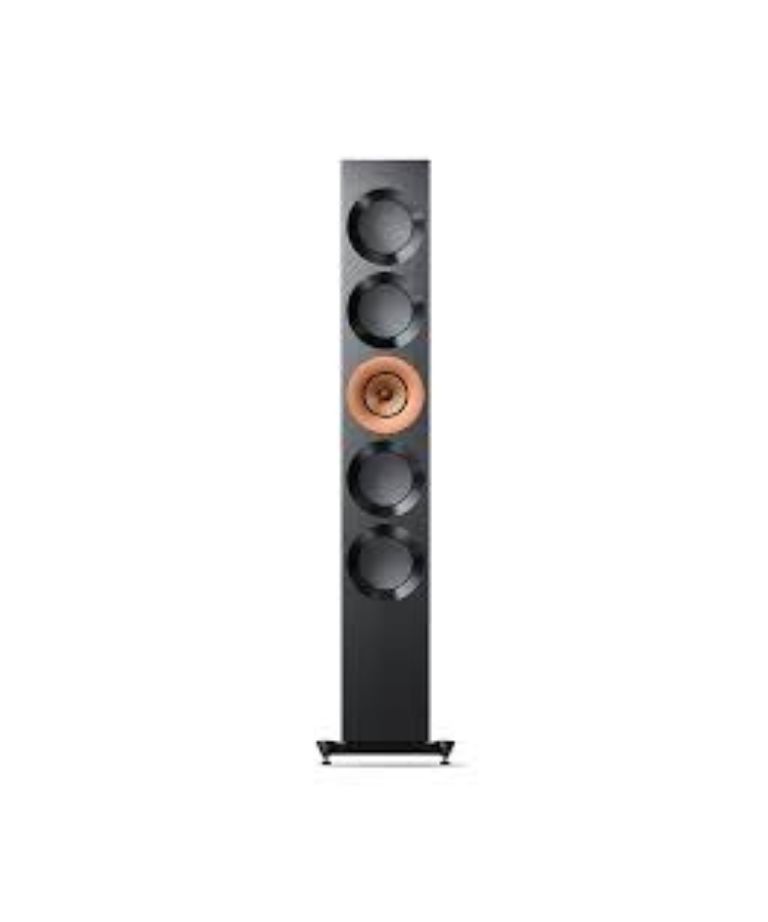

KEF Reference 5 Meta Floorstanding Speakers (Pair)

KEF Reference 5

The KEF Reference 5 Meta Floorstanding Speakers are a pinnacle of audio engineering, offering a three-way bass reflex design that combines cutting-edge technology with meticulous craftsmanship. With a striking dimension of 1350 x 205 x 462 mm and a robust weight of 60.2 kg, these speakers house a formidable array of drivers, including a 25mm aluminum dome High-Frequency (HF) unit with MAT (Metamaterial Absorption Technology), a 125mm aluminum Mid-Frequency (MF) driver, and four 165mm aluminum cone Low-Frequency (LF) drivers. This ensemble delivers a wide frequency range, from a deep 25Hz in typical room bass response to a detailed 45kHz in free field conditions. The crossover frequency of 450Hz and 2.1kHz ensures seamless integration between drivers. These speakers demand an amplifier with a power range of 50-400W, boasting a sensitivity of 88dB and reaching an impressive maximum output of 116dB. With minimal harmonic distortion and an impedance of 4 Ohms (min. 3.2 Ohms), the KEF Reference 5 Meta speakers offer an unparalleled audio experience, showcasing clarity, power, and precision in every note.

 Key Features

1. Driver Material:
   • HF (High-Frequency): 25mm aluminum dome with MAT (Metamaterial Absorption Technology)
   • MF (Mid-Frequency): 125mm aluminum cone
   • LF (Low-Frequency): 4 x 165mm aluminum cone
2. SPL Levels (Sensitivity):
   • Sensitivity of 88dB at 2.83V/1m
3. Impedance Rating:
   • Impedance of 4 Ohms (min. 3.2 Ohms)
4. Speaker Type:
   • Three-way bass reflex design
5. Dimension and Weight:
   • Dimensions: 1350 x 205 x 462 mm
   • Weight: 60.2 kg
6. Frequency Range (Free Field):
   • Short Port: 35Hz – 45kHz (-6dB)
   • Long Port: 32Hz – 45kHz (-6dB)
7. Frequency Range (Typical In-room Bass Response):
   • 25Hz (-6dB)
8. Frequency Response:
   • 40Hz – 35kHz (±3dB)
9. Crossover Frequency:
   • 450 Hz, 2.1 kHz
10. Amplifier Requirements:
    • Power range of 50 – 400W

Additional Specs:

• Harmonic Distortion (2nd & 3rd harmonics at 90dB, 1m):
  • <0.5% from 40Hz to 100kHz
  • <0.2% from 200Hz to 2kHz
  • <0.1% from 2kHz to 20kHz
• Maximum Output: 116dB (peak sound pressure level at 1m with pink noise)
