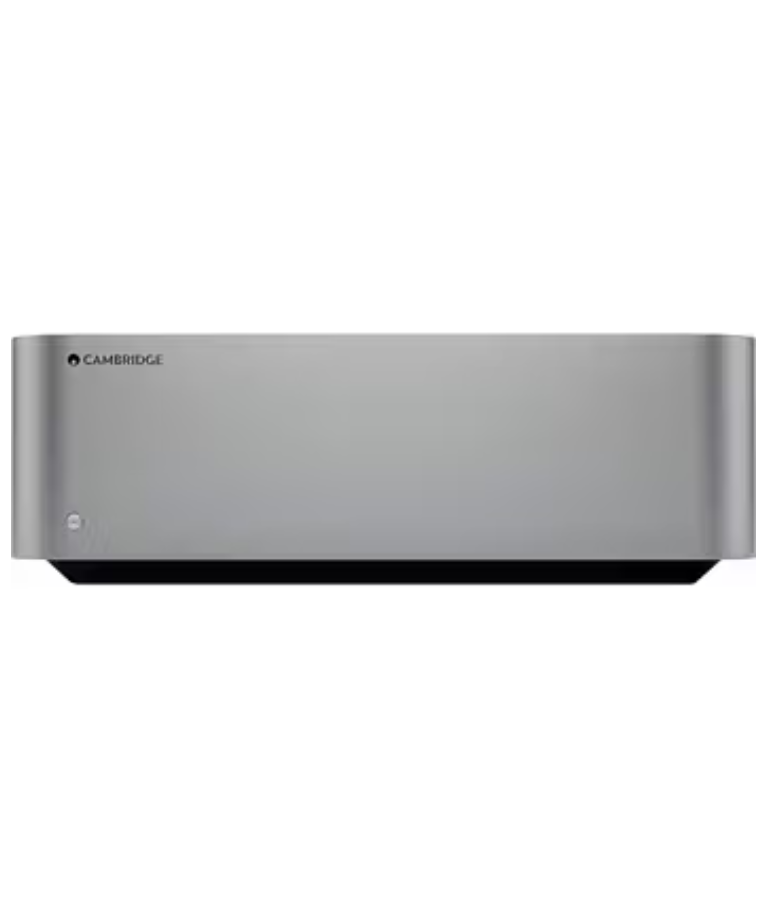

Cambridge Audio Edge W Power Amplifier
Product Description
- Hand-picked components – hours of listening to select only those that sound the best.
- Twin Toroidal Transformers – huge reserves of power for consistent tonality.
- Cambridge Audio proprietary Class XA Amplification – no audible crossover distortion.
- Short signal path – Only 14 components between you and your music.
- Perfect partners – pair your Edge W with the Edge NQ to create your perfect system.
IN THE BOX |
|
|---|---|
| Sales Package | Edge W Power Amplifier; 1.5M Power Lead; Edge Link Cable; Edge W User Manual, Warranty Card |
| General | |
|---|---|
| Brand | Cambridge-Audio |
| Model | Edge W |
| Color | Silver |
| SPECIFICATIONS | |
|---|---|
|
CONTINUOUS POWER OUTPUT
|
100W RMS into 8 Ohms; 200W RMS into 4 Ohms |
|
THD (UNWEIGHTED
|
<0.002% 1kHz at rated power (8 Ohms); <0.02% 20Hz – 20kHz at rated power (8 Ohms) |
|
FREQUENCY RESPONSE
|
<3Hz – >80kHz +/-1dB |
|
S/N RATIO (REF 1W INTO 8 OHM)
|
>93 dB |
|
CROSSTALK @ 1KHZ
|
< -100dB |
|
S/N RATIO (REF FULL POWER)
|
>113 dB |
|
INPUT SENSITIVITY
|
Input A1-A2 (unbalanced) 1.09V RMS |
|
INPUT IMPEDANCES
|
Input A3 (balanced) 47k Ohm; Input A1-A2 (unbalanced) 47k Ohm |
|
INPUTS
|
Balanced, Unbalanced |
|
OUTPUTS
|
Speakers, Loop out |
|
MAX POWER CONSUMPTION
|
1000W |
|
STANDBY POWER CONSUMPTION
|
<0.5W |
| Dimension | |
|---|---|
| Dimension | 15 cm x 46 cm x 40.5 cm |
| Weight | 23.6 kg |
| Warranty 1 YEARS | |
|---|---|
| Warranty Type | Official Manufacturers Warranty |
