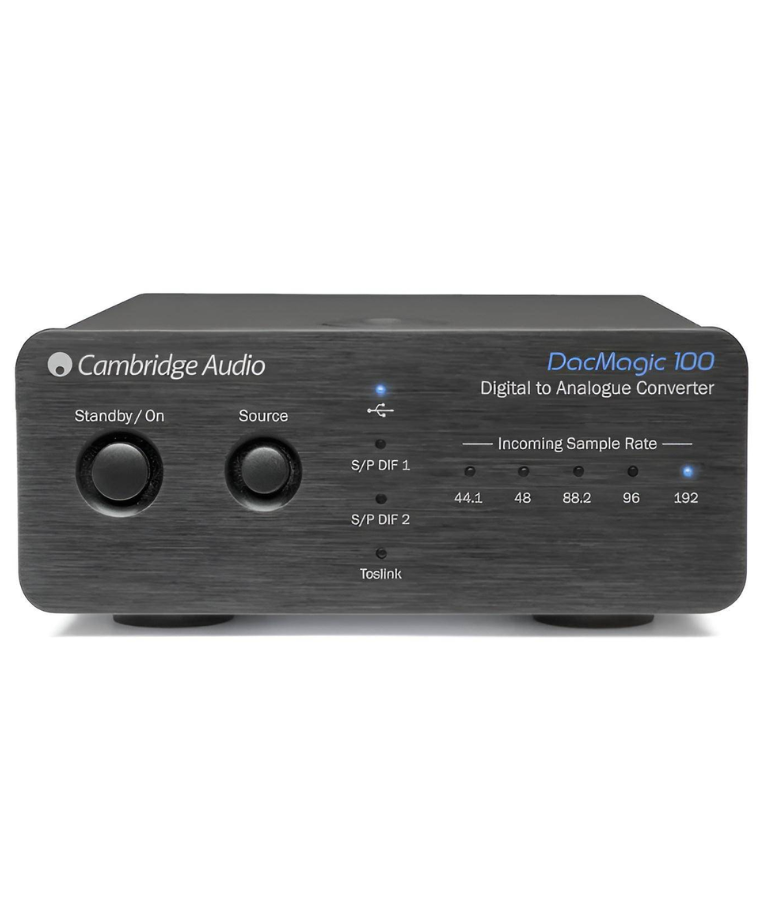

Cambridge Audio DacMagic 100 Digital to Analogue

Cambridge Audio DacMagic 100 Digital to Analogue

Thanks to a Wolfson 24-bit DAC, a 24-bit/96kHz driverless USB Audio 1.0 input and S/PDIF and TosLink digital inputs, the DacMagic 100 takes the sound from your computer, iPod, TV and other digital devices and adds detail, depth and added clarity to give you a true audio experience.

SPECIFICATIONS

• DIGITAL TO ANALOGUE CONVERTER – Wolfson WM8742 24-bit DAC
• FREQUENCY RESPONSE – 20Hz to 20kHz (±0.1dB)
• THD @ 1KHZ 0DBFS – <0.0025% 24-bit
• THD @ 1KHZ -10DBFS – <0.0025% 24-bit
• THD @ 20KHZ 0DBFS – <0.0025%
• SIGNAL TO NOISE RATIO – -113dBr
• TOTAL CORRELATED JITTER – <130pS
• CROSSTALK @ 1KHZ – < -130dB
• CROSSTALK @ 20KHZ – < -112dB
• OUTPUT IMPEDANCE – <50ohms
• OUTPUT LEVEL (UNBALANCED) – 2.3V rms
• DIGITAL INPUT WORD WIDTHS SUPPORTED – 16-24bit
• DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED – 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
• POWER CONSUMPTION – 5W
• DIMENSIONS (WXHXD) – 106 x 46 x 130mm (4.1 x 1.8 x 5.1″)
• WEIGHT – 0.5Kg (1.1 lbs)

IN THE BOX

• Cambridge Audio DacMagic 100 Digital to Analogue
• Limited 1-Year Manufacturer Warranty
